UV Curing Machine1.Factory Price
2.The length of feeding material: 250 mm
3.Wavelength:365nm

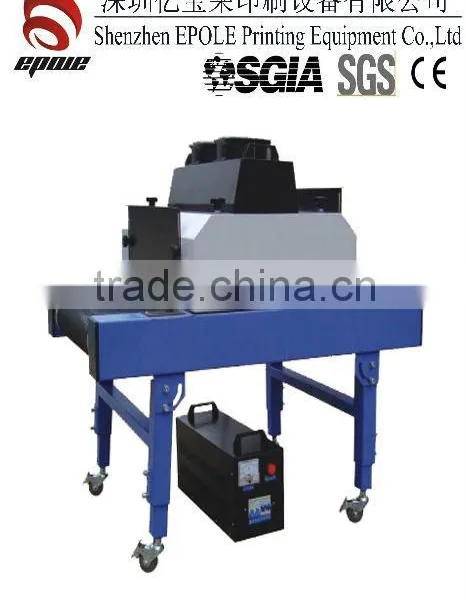

UV Curing Machine
Specification:
1. This machine belong to Transmission UV Curing Equipment; It is used for the curing of Ink, Coating, Resin; It has these characters of small volume, light weight and perfect design; it can move conveniently and place on the desk;

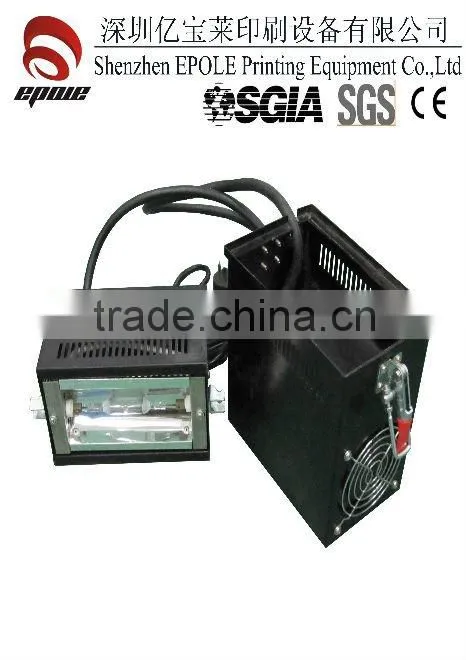

2. The Reflector of this equipment adopt focusing type baffle-board;
3. It's very convenient to adjust the height of UV lamp; it has an uniform luminance and long lifetime;
Application:
This is one kind of UV Curing Equipment. It is widely used in the UV paint surface coating of mobile phone shell, membrane switch, electronic products plastic shell. It is also used in Curing electronic components, liquid crystal slice,terminal gum, mobile phone assembly gum, plastic assembly gum and LCD; It has a small volume and light weight, craft and move conveniently.
Technical Parameters:
(1)Overall Size (L*W*H): 1020*660*955mm
(2)The length of feed material hole: 250 mm
(3)The length of discharge material hole: 270mm
(4)The height of feed material hole: 540±100mm
(5)The height of discharge material hole: 10-120mm
(6)The width of Teflon: 400mm
(7)The material of mesh belt: Teflon
(8)Wattage of Tube: 3KW/piece, the shinning height of lamp tube can be adjusted by manual
(9)Wavelength: 365nm
(10)The shinning width of light tube: 400mm
(11)Transmission Motor: 25W 1:15
(12)Exhaust Fan: 38W,2set
(13)The transmission speed: 0-12m/min, electronic speed regulation;
(14)The transmission way: chain
(15)Decoration way: spray coating
(16)Power: 220V
(17)Net Weight: 80kg
(18)Gross Weight: 85kg
OEM: our factory can custom according to your requirement with our excellent engineers
who have more than 10 years experience
