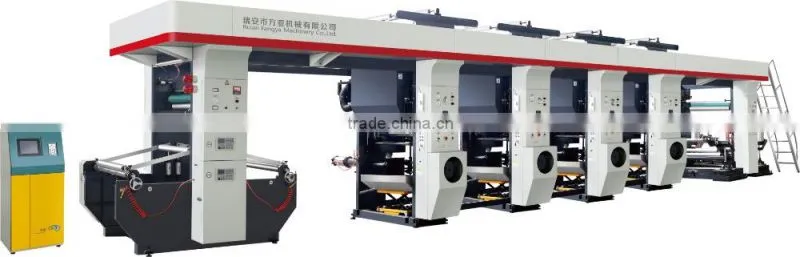

Film computer auto register gravure printing machine
- 1 Set / Sets per Month
- Ningbo port
- T/T
- High Quality High Speed Rotogravure Printing Machine
- ASY gravure printing plastic film reel machine
- 2 Color 3 Unit Group Rotogravure Printing Machine
- Polyethylene Film Paper Aluminum Foil Rotogravure Intaglio Printing
- auto register rotogravure printing machine high quality high speed multicolor rotogravure printing
- Roll to Roll multi colour rotogravure printing machinery/textile printing machinery/plastic gravure printing machine
Product Details
Condition: | New | Place of Origin: | Zhejiang, China | Brand Name: | fangya |
Model Number: | YC-4800 | Usage: | Card Printer, Paper Printer | Automatic Grade: | Automatic |
Voltage: | 380V 50Hz | Gross Power: | 108KW | Dimensions(L*W*H): | 17600x 2900x3300 Mm |
Weight: | 15000kg | Certification: | CE/ISO9001 | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Characteristics:
This is kind of machinery is suitable for multi-color gravure printing of various roll material, plastics films and paper sheets. No shaft-mounted version, especially heavy pneumatic scraper, external heating, heat drying cycle, air-cooled cooling until , centralized waste discharge, two single stasionfor unwinding and rewinding, main motor frequency speed regulating device that it ensure stable tension, accuracy register, high efficiency , reasonable operation are available
Note:
The extra option to match according to the clients’ demand: three-motor or seven-motor tension synchronous contro system, obverse and inverse double-side computerized register mechanism can be added and can increase drying heat source including electricity, steam heat transfer oil, natural gas , etc.
Technical Specification
Model | 4800 | 41000 |
Printing width | 800mm | 1000mm |
Plate diameter | Φ160-Φ960mm | Φ160-Φ960mm |
Register accuracy | ±0.12mm | ±0.12mm |
Printing speed | 120m/min | 120m/min |
Diameter of material | 1400mm | 1400mm |
Inner diameter of core | 76mm | 76mm |
Total Power | 108KW | 1187KW |
Overall DImensions | 17600*2900*3300mm | 17600*3100*3300mm |
Weight | Appro 15T | Appro 17T |
Feature :
1. Unwinding two single station, air shaft, dual automaticdischarge tension, optical correction.
2. Rewinding two single station, air shaft, rolling torque motor. Dual automatic rewinding tension
3. With shaft hand cap type plate, oil-immersed sealing highprecision gear box transmission.
4. Dual axle three party a adjustable super-heavy pneumatic scarper, string of momentum ±6mm
5. Guide rail type double cylinder embossing.
6. Ink to be automatic cycle
7. Drying equipment is circular hot air chamber.
8. Air cooling device .
9. Concentrated exhaust device.
10. Computer register system can be added.
11. Still image system can be added
12. Obverse and inverse double-side printing device can be added.
13. The printing group number can be fixed according to clients’ requirements.
14.The rewinding and unwinding diameter size and obverse and inverse.
