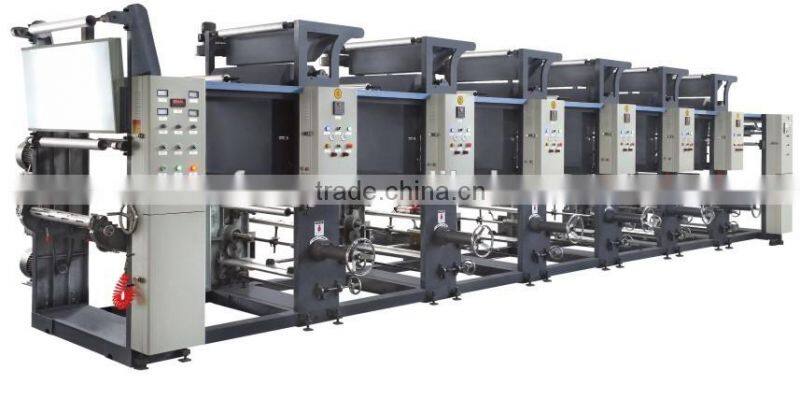

No-Shaft Type Gravure Printing Machine
Negotiable
MOQ: 5 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
FangYa
Payment & Shipping
Payment Methods:
Port of Shipment:
NingBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Medium Speed Computer Gravure Printing MachineNegotiableMOQ: 1 Set -
New Model High Quality Medium Speed Computer Gravure Printing MachineNegotiableMOQ: 1 Set
-
High-speed Computerized Color Reister Rotogravure PressNegotiableMOQ: 1 Set
-
New Model High Quality Medium Speed Computer Gravure Printing MachineNegotiableMOQ: 1 Set
-
High-speed Computerized Color Reister Rotogravure Press (seven Vector Motor)NegotiableMOQ: 1 Set
Condition
New
Place of Origin
Zhejiang, China
Brand Name
FangYa
Model Number
YB8800
Usage
Card Printer, Paper Printer
Automatic Grade
Automatic
Voltage
380V 50Hz
Gross Power
88KW
Dimensions(L*W*H)
13000x 2600x2500 Mm
Weight
13000kg
Certification
CE/ISO9001
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Technical Specification
Model |
8600 |
8800 |
81000 |
Printing Width |
600mm |
800mm |
1000mm |
Plate Diameter |
Φ100-Φ300mm |
Φ100-Φ300mm |
Φ100-Φ300mm |
Register accuracy |
±0.15mm |
±0.15mm |
±0.15mm |
Printing Speed |
100m/min |
100m/min |
100m/min |
Diameter of material |
600mm |
600mm |
600mm |
Inner diameter of core |
76mm |
76mm |
76mm |
Total power |
78KW |
88KW |
98KW |
Overall dimensions |
13000*2400*2500 |
13000*2600*2500 |
13000*2800*2500 |
Weight |
Appro 11T |
Appro12T |
Appro 13T |
Characteristics:
- Every control module of the automatic color register system is equipped with microprocessor and can correct the deviation of color register quickly and accurately
- Main motor equipped with frequency converter for speed regulation
- Turret un/rewinding section ,non-stop material splicing
- Unwinding and in-feed section with inverter speed control system and close loop tension control system
- Rewinding and out-feed sectiohn with inverter speed control system and close loop tension control system
- Closed oven and independent heating hot air blowing system.automatic constant temperature system
- Pneumatic impresing system and pneumatic doctor blade system
- Diaphragm-type pneumatic ink auto circulating system
- Inflatable air shaft for unwinding/rewinding material loading
- Printing linear speed and meter counting display
- Shaft less printing cylinder loading device .printing cylinder is fixed by shaft -less air chuck
If you are interested in our machine .Pls feel free to contact with me :
Zhejiang Fangya Machinery Co.,Ltd
Add : xindong road.Dongshan Town.Ruian City .Zhejiang
M.T:+86-13958840603
Whatsapp:+86-13958840603
Direct Line: +86-577-65881657
Wechat : windbell-
Website:
