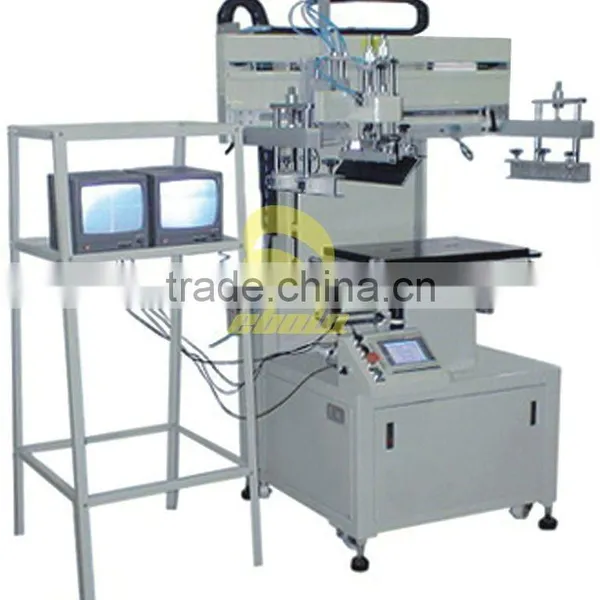

Vision CCD System Screen Printing Machine
Application:
LCD, IMD,EL,conductive glass,LED and other products of high precision flat screen printing.
Main Features:
(1)Vertical structure , dual electro motion , PLC program control, human-machine operate interface.
(2)Halftone move up and down vertically, machine nose move left and right.
(3)Cast aluminium parts: printing beam, sliding sleeve,machine nose and halftone arm.
(4Servo Motor drive printing knife shelf, quadrate linear precision guide rail,adjust the speed
and stroke independently.
(5)Halftone is dived up and down by variable speed gear motor, move smoothly.
(6)Middle heaven aluminium platform ,with attached high strength suction and precision fine-tuning , chromatography of convenience.
(7) With manual / semi / fully automatic three kinds and double squeegee printing modes,
can print for many times,Printing time can be controlled by digit (1-9seconds) indirectly;
(8Independent machine nose device makes it easy to clean, load and unload screen printing plate,
ink-return blade and squeegee
(9Mesh folder can be move easily, with screen printing plate space adjustment device,
adjust easily, with off-grid device, you can chose according to your craft.
(10) The angle of printing & ink returning can be adjustable .
Technical Parameters:
Model |
YS4060DC-LCD |
YS6080DC-LCD |
Printing area (mm ) |
400×600 |
600×800 |
Worktable area (mm ) |
500×700 |
700×900 |
Max mesh frame( mm ) |
700×850 |
900×1100 |
Machine weight( KG ) |
620 |
780 |
Max speed ( Hr/pcs ) |
1000 |
950 |
Power (KW ) |
2.5 |
3.5 |
Air consumption (Kgf/cm2 ) |
28 |
32 |

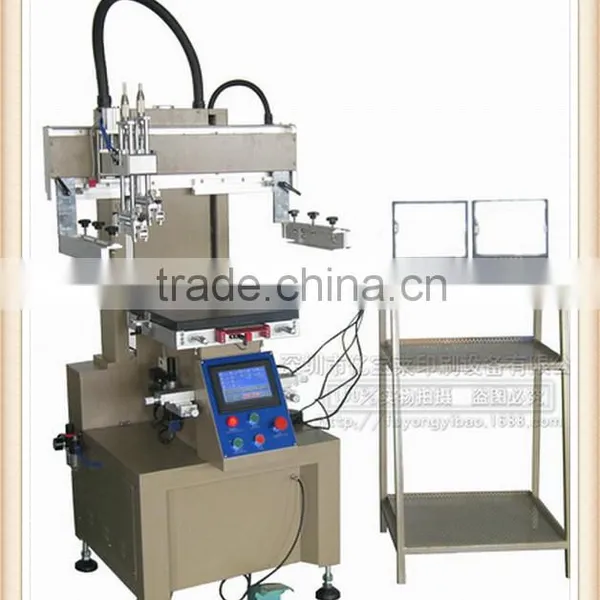

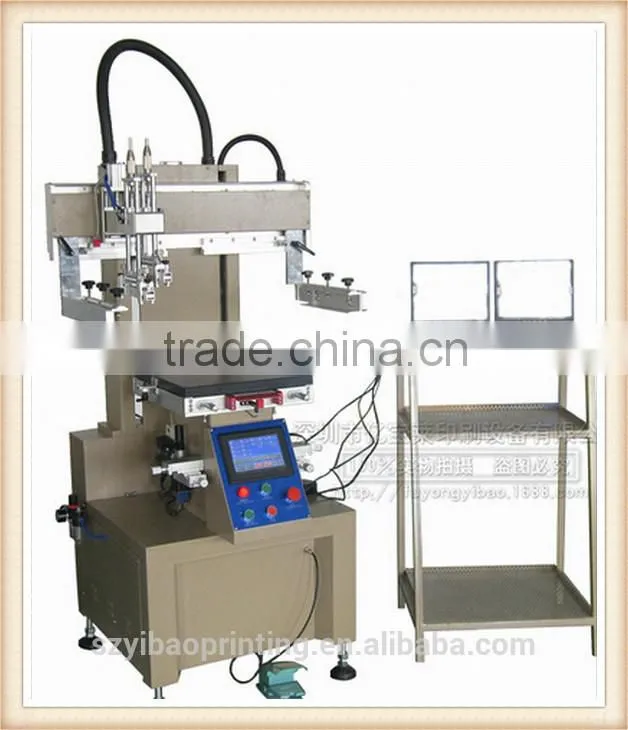

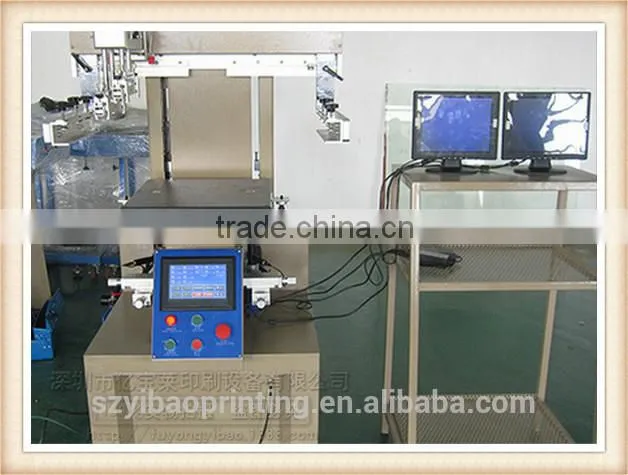

Detailed Pictures:

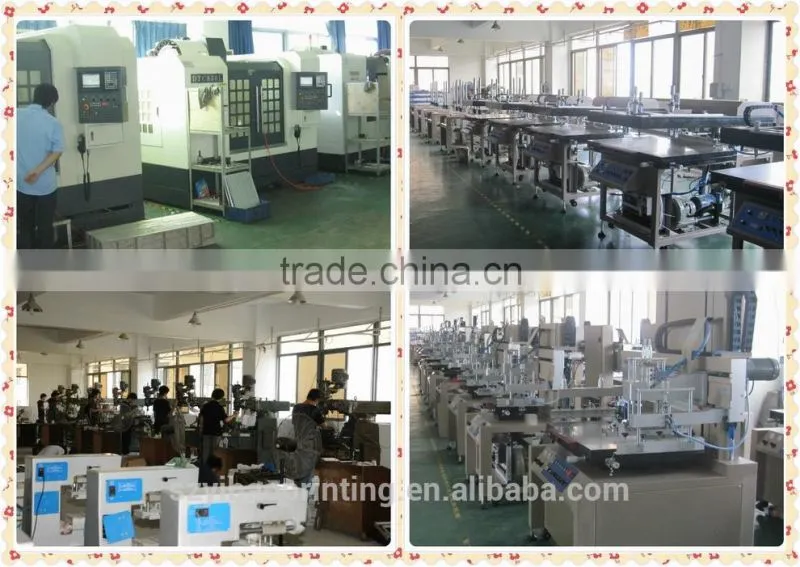

Production Department:
Exhibition Show:
OEM and ODM: our factory can custom according to your requirement with
our excellent engineers who have more than 10 years experience.
