CE Approved Label Roll to Roll Screen Printing Machine
Application:
PET PVC PC OBB,non-woven laminating paper and other precision roll flat printing
Main Features :
(1)vertical structure, electromotion, machine is made up of feeding, traction, printing,
drying and collection.
(2)PLC program control, human computer operation interface, precision alignment controlled
by photoelectric eye,automatic detection monitoring function, machine will shut down and
alarm when it is abnormal;
(3)Aluminum parts: printing beam, machine nose, halftone folder.

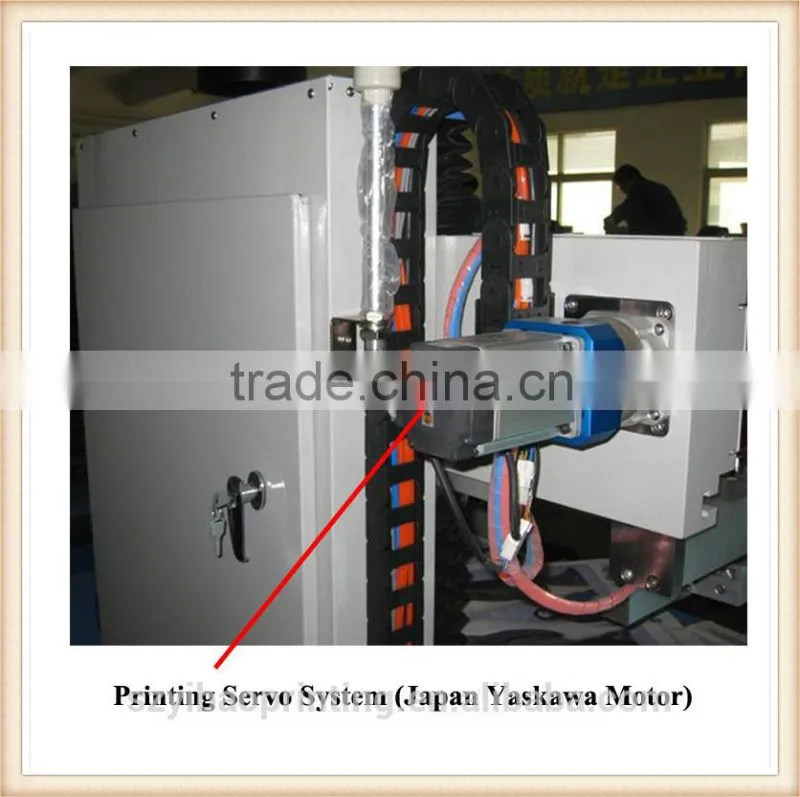

(4)Servo motor traction feeding with stable & accurate speed.
(5Inverter motor drive printing knife shelf, quadrate linear precision guide rail,
adjust the speed and stroke independently.
(6Halftone is drived up and down by variable speed gear motor, high precision and move smoothly.
(7)The overall grinding high strength and hardness platform, equipped suction hole equably.
(8)Sino-foreign joint venture strength vacuum pump, vacuum strength to ensure the accurate multi-color chromatography.
(9)There are three printing models (such as manual model, semi-auto model, and full-auto model). It equipped with many kinds of adjusting modes. Printing time can be controlled
by digit(1-9seconds);
(10Independent halftone clamps device makes it easy to clean, load and unload screen printing
plate, ink-return blade and squeegee.
(11It is equipped with screen space regulating device around screen printing plate arm clamps
and adjust conveniently.
(12)The angle of printing & ink return can be adjusted ,with left/right parallel device.

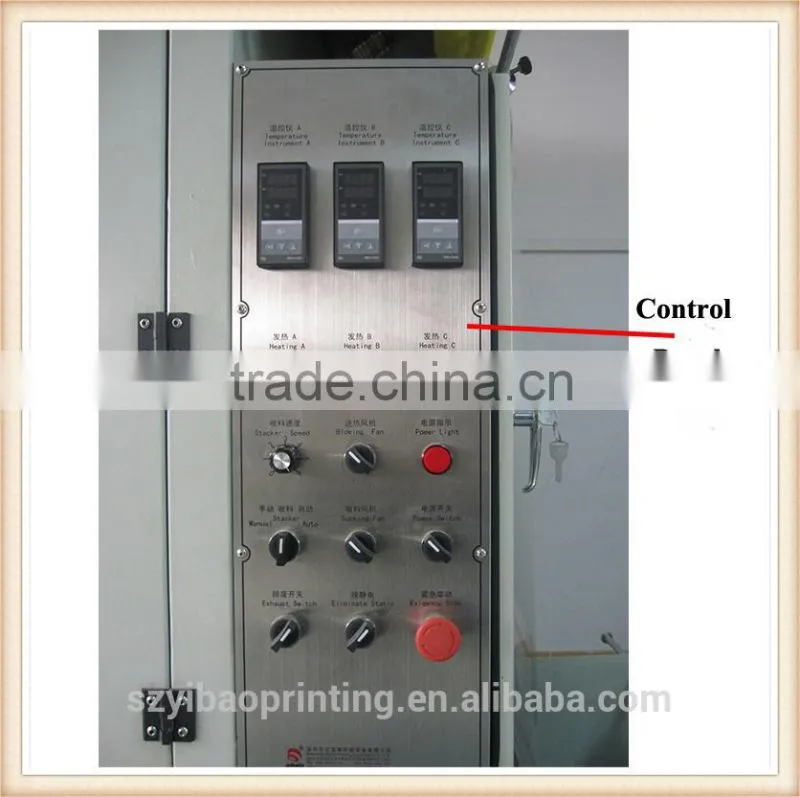

(13IR vertical type oven, hot air circulating, PID adjust controller or UV ultraviolet rays
drying equipment.
(14)Collection is fastening neatly.
Technical Parameters:
Model |
YS3050JL |
YS5070JL |
YS6090JL |
YS1012JL |
Printing area(mm) |
300×500 |
500×700 |
600×900 |
1000×1200 |
Worktable area(mm) |
400×600 |
600×800 |
700×1000 |
1100×1300 |
Max mesh frame (mm) |
650×800 |
750×1100 |
850×1200 |
1300×1550 |
Max speed (Hr/pcs) |
1400 |
1300 |
1200 |
1000 |
Power(KW) |
21 |
23 |
25 |
28 |
Working pressure (Kgf/cm2 ) |
0.6-~0.8 |
0.6-~0.8 |
0.6-~0.8 |
0.6-~0.8 |

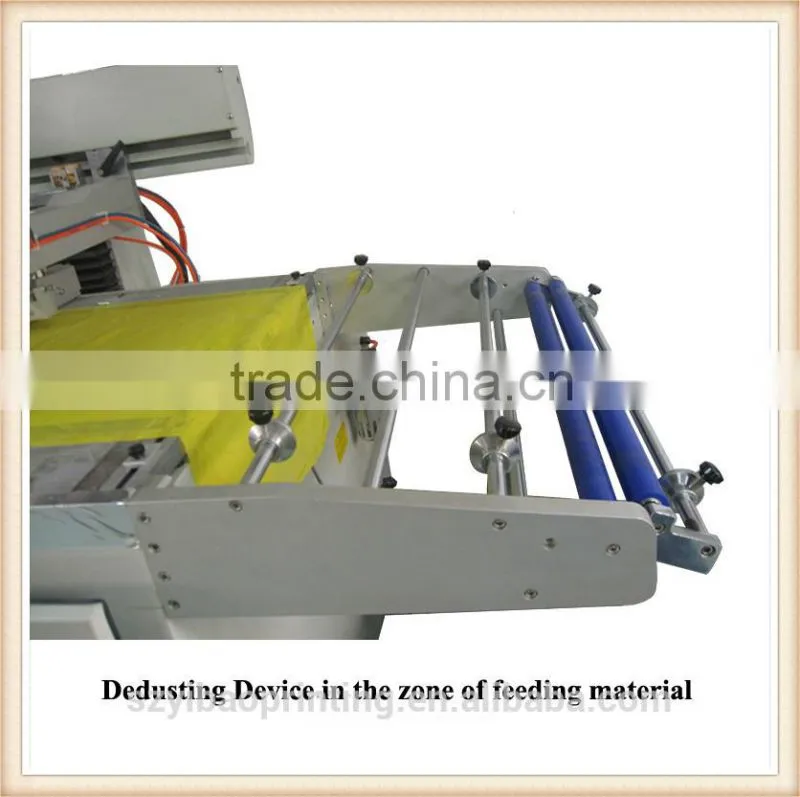

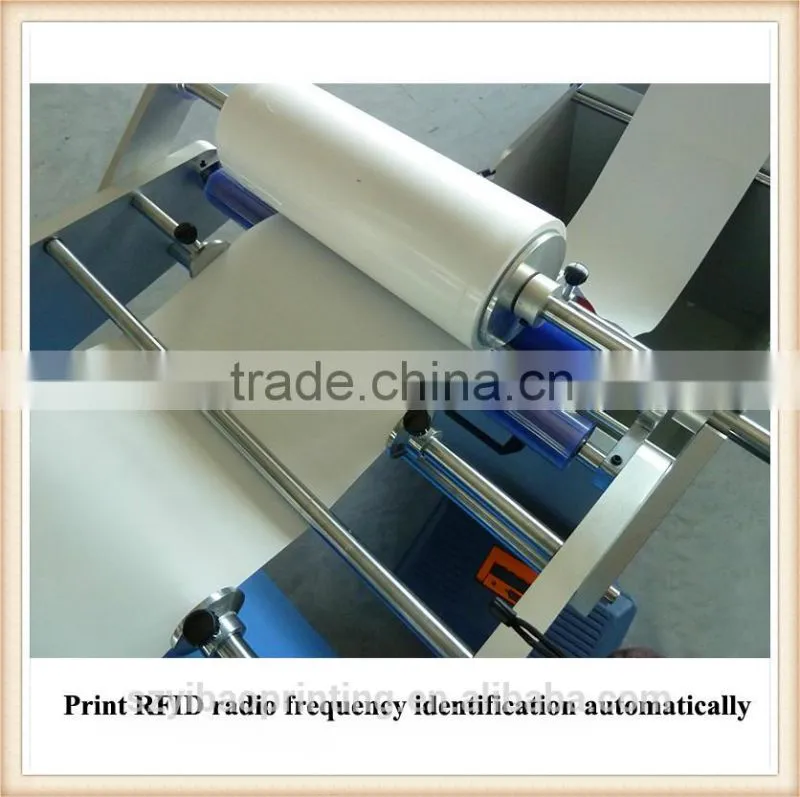

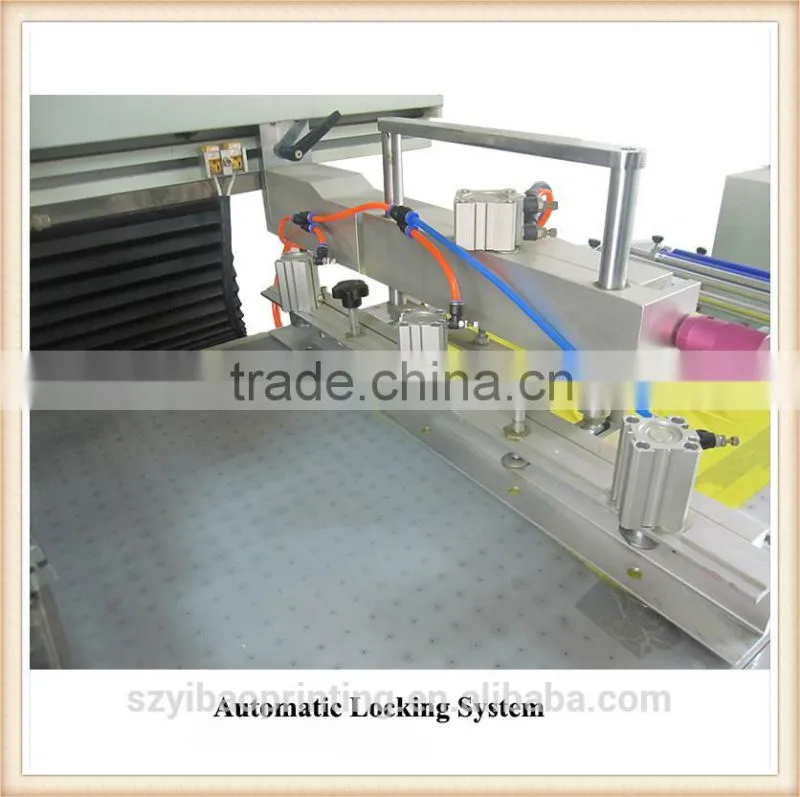

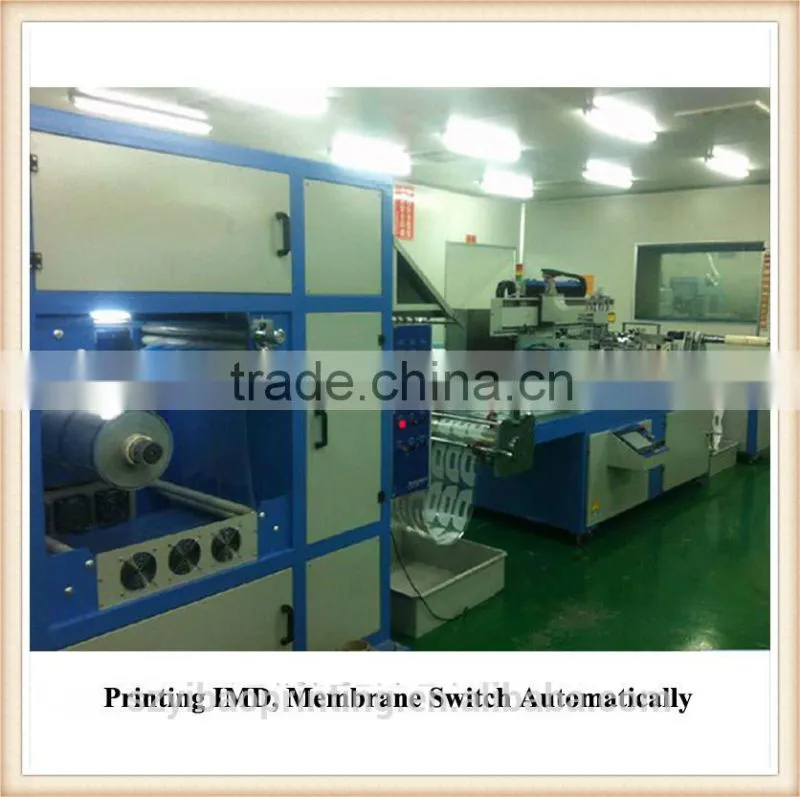

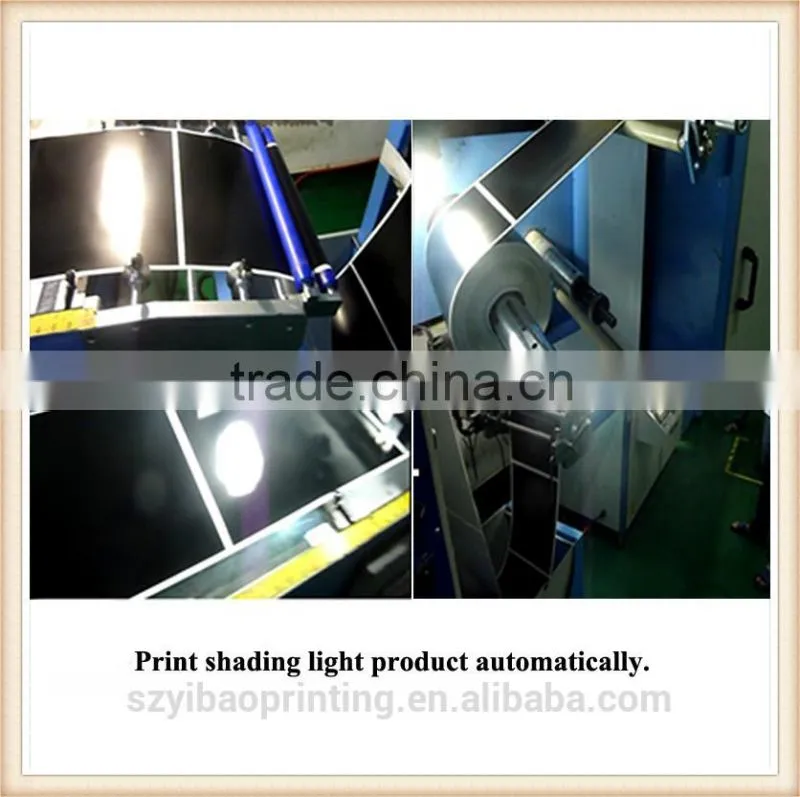

Detailed Pictures:

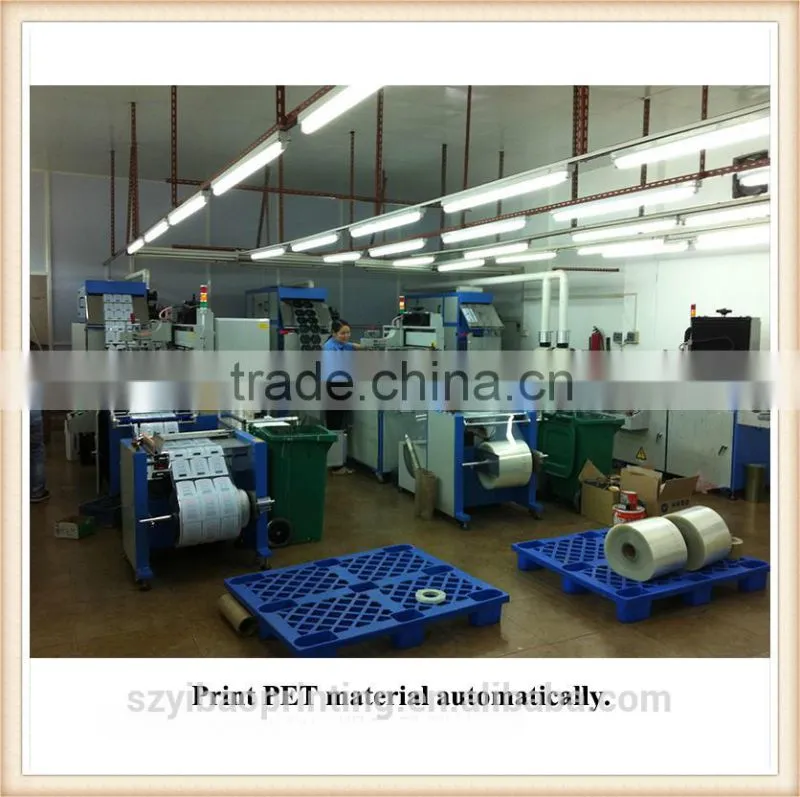

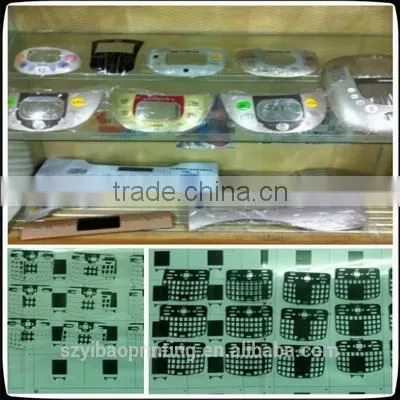

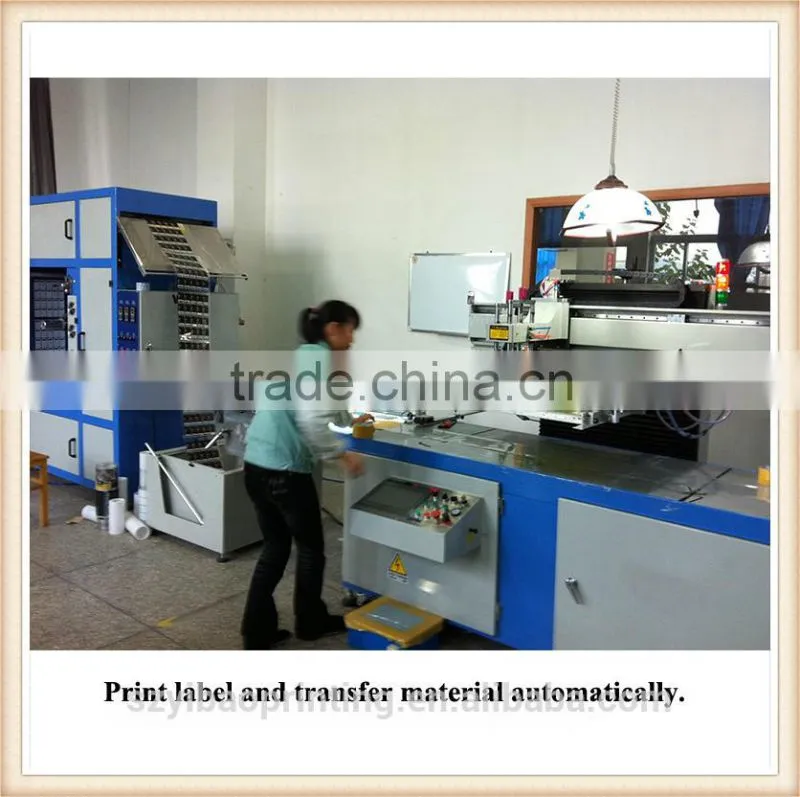

Customer Factory Show:
Production Department:
Exhibition Show:
OEM & ODM:
With the strong belief and continuous efforts
and the past many years'experience in manufacturing
machinery . Epole will create every machine with heart ,
and provide excellent service for our customers .
Welcome your inquiry!
