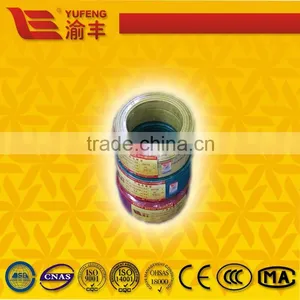

Home Fixed Wiring 60227 IEC Hot Whoelsae Special Electrical Wire

Name: Home Fixed Wiring 60227 IEC Hot Whoelsae Special Electrical Wire
Brand: YUFENG
SKU: 104169175
Availability: InStock

US$ 0.1 - 0.5 MOQ: 100 Meters

Key Specifications

Place of Origin:

Chongqing, China

Brand Name:

YUFENG

Model Number:

Chongqing Yufeng Wire & Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Chongqing Shenzhen Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Chongqing, China

Brand Name YUFENG

Model Number BV

Type Insulated

Application Overhead

Conductor Material Copper

Conductor Type Solid

Insulation Material PVC

Product Description

1). Standard: IEC60227

2). Voltage: 450/750V

3). Application:electric equipment, household, and electrical appliance.

4). Specification (Electrial wires series include the following) :

* Solid copper (or aluminum) conductor, PVC insulated single core electrical wire

* Stranded copper conductor, PVC insulated single core electrical wire

* Solid copper conductor, PVCinsulated and PVC sheathed round multi-core electrical wire

* Solid or stranded copper conductor, PVC insulated and PVC sheathed flat electrical wire(two cores or three cores)

* Flexible copper conductor, PVC insulated single core electrical wire

* Flexible copper conductor, PVC insulated twin parallel electrical wire

* Flexible copper conductor, PVC insulated and PVC sheathed multi-core electrial wire

5). Norminal cross section size of conductor:

0.5mm2, 0.75 mm2, 1.0 mm2, 1.5mm2, 2.5 mm2, 4.0 mm2, 6.0 mm2, 10 mm2, 16 mm2, 25 mm2, 35 mm2, 50 mm2

6). Packing:

Roll/wooden reel/carton

. Model and Name:

Model	Name
BV	Copper Core PVC Insulation Wire
BLV	Aluminum Core PVC Insulation Wire

Type	Description	Nominal sectional Area(mm2 )	Cores	Rated Voltage (V)	Main Application
60227IEC01(BV)	General purpose single-core hard conductor non-sheath cable	1.5~400	1	450/750	Used for fixed installation in air or wire conduit
60227IEC01(BV)	General purpose single-core hard conductor non-sheath cable	1.5(B)	1	450/750
60227IEC05(BV)	Internal wifing conductor temperature 70oC single-core solid conductor non-sheath calbe	0.5~1.0	1	300/500
