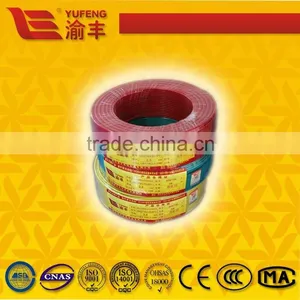

home fixed wiring 60227 IEC Hot Sale Whoelsae electrical wire
- 2147483647 Meter / Meters per Month
- Chongqing Shenzhen Shanghai
- T/T D/P D/A Credit Card
- Power Accessories Photovoltaic lines Wires UL10269 high voltage cable
- Factory Direct House Wiring 2.5mm2 Single Core Flexible Copper Wire Electrical Wire Installation Electric Cables Price
- XTW CXWT 300V UL62 PVC FIexible Cord
- Enameled Copper wire
- 3x185mm2 Overhead Insulated Cable
- Service Drop Cable XLPE/PVC/PE Insulated
Product Details
Place of Origin: | Chongqing, China | Brand Name: | YUFENG | Model Number: | BV |
Type: | Insulated | Application: | Overhead | Conductor Material: | Copper |
Conductor Type: | Solid | Insulation Material: | PVC |
Product Description
1). Standard: IEC60227
2). Voltage: 450/750V
3). Application:electric equipment, household, and electrical appliance.
4). Specification (Electrial wires series include the following) :
* Solid copper (or aluminum) conductor, PVC insulated single core electrical wire
* Stranded copper conductor, PVC insulated single core electrical wire
* Solid copper conductor, PVCinsulated and PVC sheathed round multi-core electrical wire
* Solid or stranded copper conductor, PVC insulated and PVC sheathed flat electrical wire(two cores or three cores)
* Flexible copper conductor, PVC insulated single core electrical wire
* Flexible copper conductor, PVC insulated twin parallel electrical wire
* Flexible copper conductor, PVC insulated and PVC sheathed multi-core electrial wire
5). Norminal cross section size of conductor:
0.5mm2, 0.75 mm2, 1.0 mm2, 1.5mm2, 2.5 mm2, 4.0 mm2, 6.0 mm2, 10 mm2, 16 mm2, 25 mm2, 35 mm2, 50 mm2
6). Packing:
Roll/wooden reel/carton
. Model and Name:
Model | Name |
BV | Copper Core PVC Insulation Wire |
BLV | Aluminum Core PVC Insulation Wire |
Type | Description | Nominal sectional Area(mm2 ) | Cores | Rated Voltage (V) | Main Application |
60227IEC01(BV) | General purpose single-core hard conductor non-sheath cable | 1.5~400 | 1 | 450/750 | Used for fixed installation in air or wire conduit |
1.5(B) | 1 | ||||
60227IEC05(BV) | Internal wifing conductor temperature 70oC single-core solid conductor non-sheath calbe | 0.5~1.0 | 1 | 300/500 |
We accept customized packaging. Sea freight or air freight are available.
