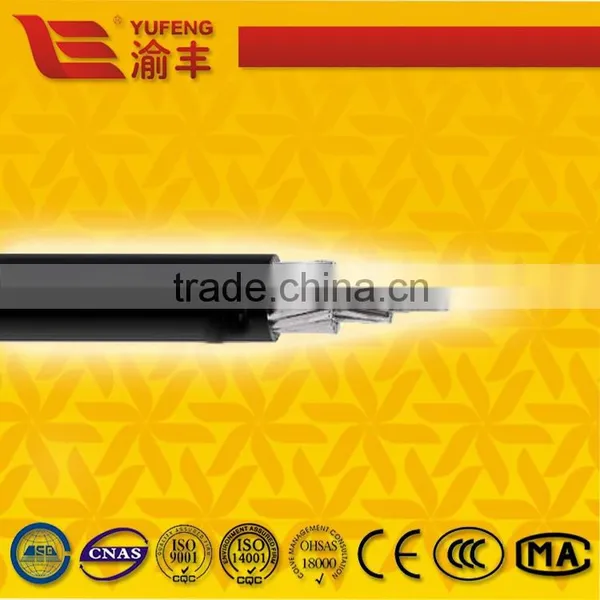

PVC/PE/XLPE Insulation AAAC,AAC,ACSR Conductor 0.6/1kv Power Cable

PVC/PE/XLPE Insulation AAAC,AAC,ACSR Conductor 0.6/1kv Power Cable thumbnail-1
PVC/PE/XLPE Insulation AAAC,AAC,ACSR Conductor 0.6/1kv Power Cable photo-1
Negotiable MOQ: 100 Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
YUFENG
Model Number:
ABC Cable
Contact Supplier Request Quote Chat Now
Chongqing Yufeng Wire & Cable Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing Shanghai Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Chongqing, China
Brand Name YUFENG
Model Number ABC Cable
Insulation Material PVC
Type Low Voltage
Application Overhead
Conductor Material Aluminum
Jacket PVC
Product Description



Specifications

Voltage: 0.6/1 KV
Conductor: Aluminum conductor, aluninum alloy conductor, AAC, ACSR, AAAC,
Insulation: HDPE, XLPE, PVC

Voltage: 0.6/1 KV
Conductor: Aluminum conductor, aluninum alloy conductor, AAC, ACSR, AAAC,
Insulation: HDPE, XLPE, PVC



1). Long-term permissible working temperature of cable conductor: PVC and PE insulated cables can not exceed

70 ,and XLPE insulated cable shall not exceed 90.



 2). Specification: Concentric strand aluminum wires as phase conductor; AAAC(all aluminum alloy conductors) or ACSR(aluminum conductor steel reinforced) as messenger (Neutral) core; Phase conductor is insulated by XLPE or HDPE or PVC.



3). Application: The cable as a new-type aerial cable is used for transmitting electric power overhead, extensively used in rebuilding of urban and forest region electrified wire netting. It improves the safety and reliance of electrified wire netting.
Relative manufacturing standards: IEC61089, ASTM B231, ASTM B232, BS215, DIN48201, DIN48204, ANSI/ICEA S-76-474
We can also manufacture ABC cable according to customer's special requirements



4)PE or XLPE insulation
One sheath lighting aluminium conductor with XLPE insulation(optional)
One messenger Al-alloy conductor (bare or covered)
The messenger conductor can be of galvanised steel wire also.



It meets or exceeds the following specifications:
1. Aluminum Wire, 1350-H19 for Electrical Purposes.
2. Aluminum Conductors, Concentric-Lay-Stranded.
3. Aluminum Conductor, Concentric-Lay-Stranded, Coated Steel Reinforced(ACSR)
4. Concentric-Lay-Stranded 6201-T81 Conductors
5. Compressed Round Stranded Aluminum Conductors Using Single Input Wire.



PVC/PE/XLPE insulation AAAC,AAC,ACSR conductor 0.6/1kv power cablePVC/PE/XLPE insulation AAAC,AAC,ACSR conductor 0.6/1kv power cable
