Specifications
1. touch screen control2. quality good enough
3. good factory price supply
4. good & fast after sales service
Features
1. This machine adopt Taiwan touch screen computer display, PLC computer program which can be edited.
2. Auto meter counting &stopping, could freely setting number.
3. Computer Fixed-length, printing color mark track orientation, Auto-stop when complete.
4. High voltage static processor, Auto constant temperature heating controller.
5 It could control auto pneumatic handle punching on machine.
6. Unwinding magnetic powder tension control with manual, Auto side-correction control.
7. This machine adopt ultrasonic welding of all aspects, bag mouth folding welding, side sealing, once full completed, fast speed, east to operate, firm sealing, beautiful and decent.
Sample bag
Description
This machine is a kind of fully automatic multifunctional non woven box bag making machine, with non woven fabric as raw material, can fully automatic make non woven bag products such as flat bag, D cut bag, handle loop bag, box bag, stand up bag, t-shirt bag and so on with auto handle sealing in a one time.
Technical parameter
Mode |
XKLT-600-C |
XKLT-700-C |
XKLT-800-C |
Max. Bag Length |
580mm |
680mm |
780mm |
Max. Bag Width |
1000mm |
||
Machine Speed |
30-100 bags/min
|
||
Max. Fabric Width |
1300mm |
1500mm |
1700mm |
Auto Handle loop sealing speed |
45-55 bags/min |
||
Handle Loop length |
370-600mm |
||
Air Pressure |
2MPa |
||
Material Thickness |
30-100 gram/ square meter |
||
Max. Fabric Diameter |
800mm |
||
Voltage |
220V |
||
Machine Dimension |
9000× 2900× 2000mm |
9000× 3000× 2000mm |
9000× 3200× 2000mm |
Machine Weight |
2500kg |
2800kg |
3000kg |
Total Power |
28kw |
30kw |
32kw |
manufacturing process
Delivery
Service
One-year warranty, life-long maintenance and Engineers available to service machinery overseas

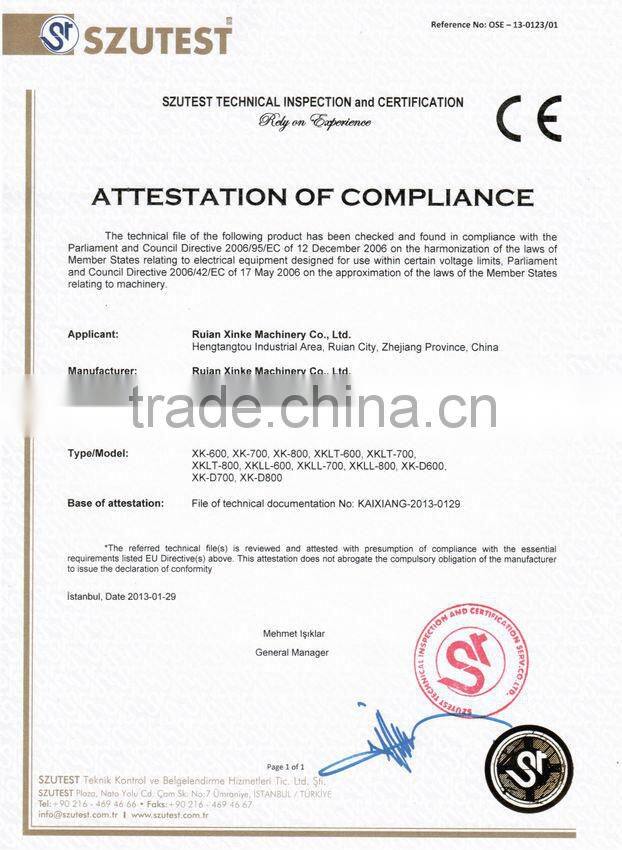

Certification
