Specifications
1. touch screen control2. quality good enough
3. good factory price supply
4. good & fast after sales service
XKLT-600/700/800
Fully automatic non woven box bag making machine
Product introduction:

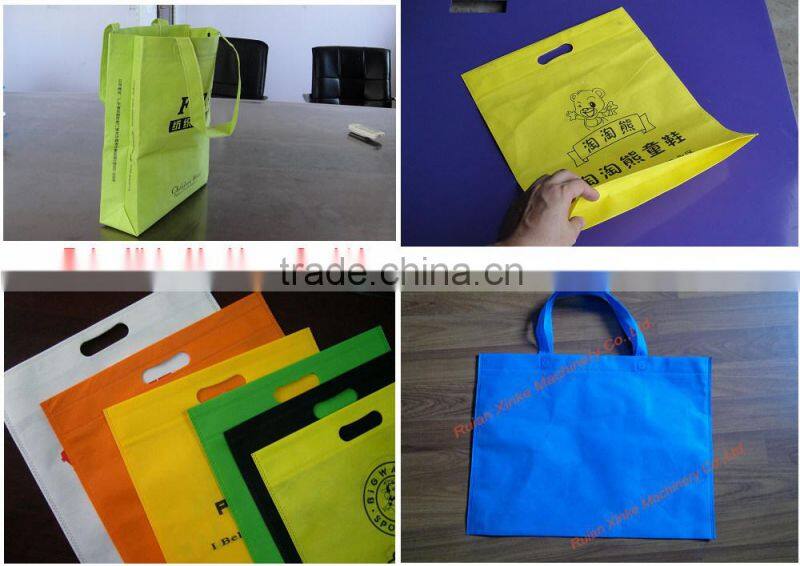

This machine is suit for non woven fabric material, can fully automatic make non woven bag body products with different bag size, such as flat bag, box bag, shopping bag, gift bag, clothes shopping bag, handle loop bag, stand up bag, shoe bag and so on.
Features:
1. This machine adopt Taiwan touch screen computer display, PLC computer program which can be edited.
2. Auto meter counting &stopping, could freely setting number.
3. Computer Fixed-length, printing color mark track orientation, Auto-stop when complete.
4. High voltage static processor, Auto constant temperature heating controller.
5. It could control auto pneumatic handle punching on machine.
6. Unwinding magnetic powder tension control with manual, Auto side-correction control.
7. This machine adopt ultrasonic welding of all aspects, bag mouth folding welding, side sealing, once full completed, fast speed, east to operate, firm sealing, beautiful and decent.
Technical Parameter:
| Model: | XKLT-600 | XKLT-700 | XKLT-800 |
| Max. Bag Length | 580mm | 680mm | 780mm |
| Max. Bag Width | 1000mm | 1000mm | 1000mm |
| Machine Speed | 30-100 bags/min. | 30-100 bags/min. | 30-100 bags/min. |
| Max. Fabric Width | 1300mm | 1500mm | 1700mm |
| Total Power | 17kw | 19kw | 20kw |
| Machine Weight | 2000kg | 2100kg | 2200kg |
| Air Pressure | 2MPa | 2MPa | 2MPa |
| Material Thickness | 30-100 gsm | 30-100 gsm | 30-100 gsm |
| Max. Fabric Diameter | 800mm | 800mm | 800mm |
| Voltage | 220V | 220V | 220V |
| Machine Dimension | 8500× 1800× 2300mm | 8500× 1900× 2300mm | 8500× 2000× 2300mm |

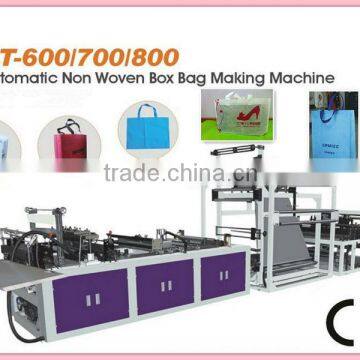

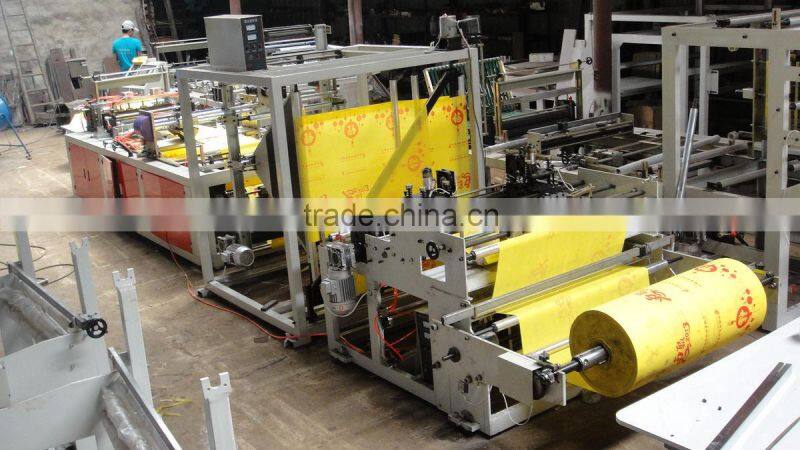

machine:
ultrasonic sealing:
touch screen control center on machine:

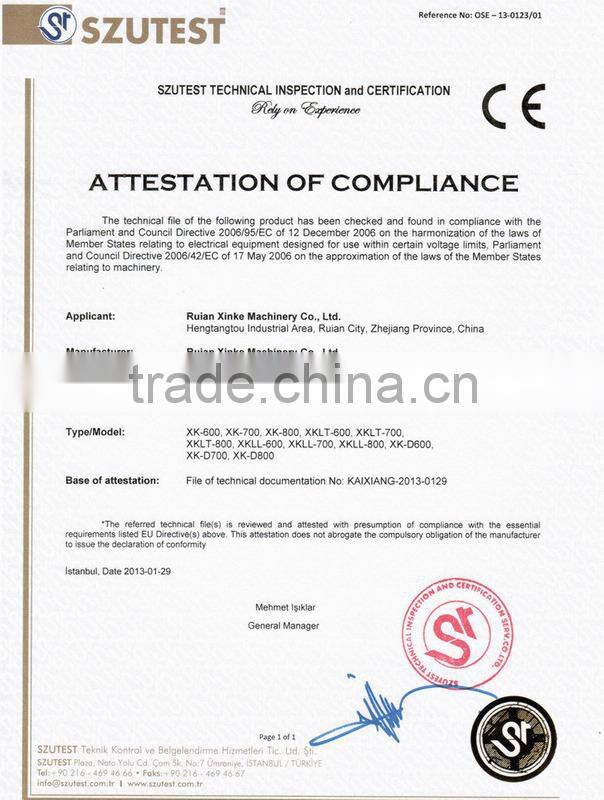

CE Certificate:
Please send us inquiry for more informations, we will supply you good machine price & good after sales service. Thank you.
