Specifications
1. touch screen control2. quality good enough
3. technical patent protected
4. good & fast after sales service
Usage:

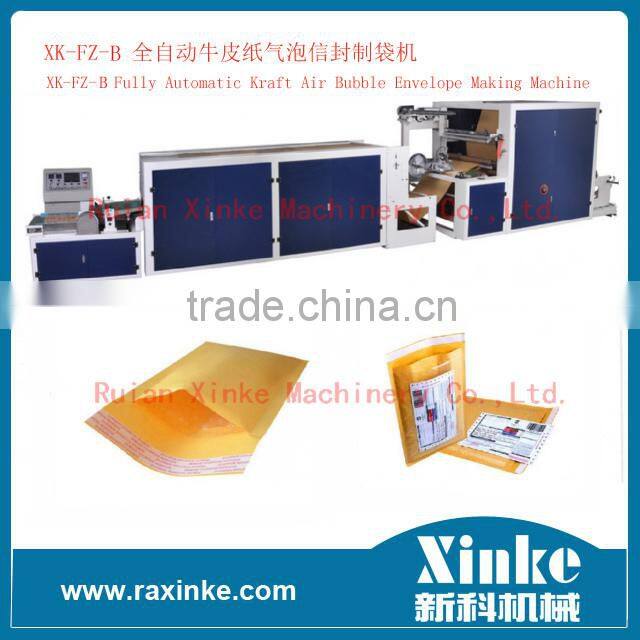

The Machine is professional to make laminated kraft paper bags, kraft paper compounded with bubble bags, aluminum compounded with bubble bags and so on.
Main Description:
The Machine sets Light, electric and gas system in an international professional unit. It is in a high production speed, nice appearance, good shockproof effect with stable performance, and which compliance with the safety standard of Western Countries. Even more importantly, the machine fills in the defects of inaccurate sealing and cutting, away from sensor when printing, incorrect position of bag mouth, broken bubble, less solid sealing and so on. It has been well received and been going to well introduced by customers. In addition, we owns several patents, we must and will investigate his legal responsibility according to the law if have similarity.
Performance & Characteristics:
1. This machine adopt Taiwan touch screen computer display, PCL computer program which can be edited.
2. Auto meter counting & stop, could set number freely.
3. Computer fixed-length, printing color tracking.
4. Paper feeding with auto side-correction control.
5. The machine is able to finish printing, compounding materials, folding and coating into one line.
6. The machine adopts with heating compounded.
7. The machine with double capacity for production (small bag size).
Main Technical Parameters:
Machine Model |
XK-FZ-B |
Max. Material Width |
1150mm |
Max. Air Bubble Roll Material Width |
1100mm |
Max. Material Diameter |
Φ1000mm |
Machine Speed |
20-160 pcs/min |
Bag Length |
100-500mm |
Bag Width |
150-550mm |
Paper Thickness |
> 90g |
Voltage |
380V Three phase four-line |
Power |
38kw |
Machine Weight |
2800KG |
Machine Dimension |
9000*2200*2100MM |

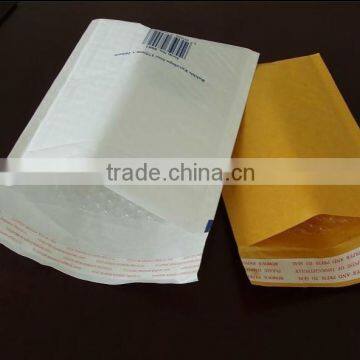

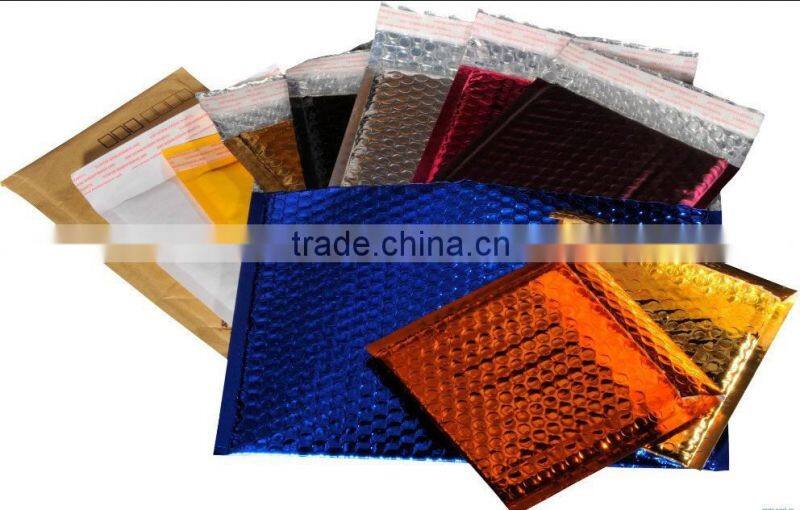

Bag Samples Made by our machine Showed as below:
Please send us inquiry for more informations, we will supply you good machine price & good after sales service. Thank you.
