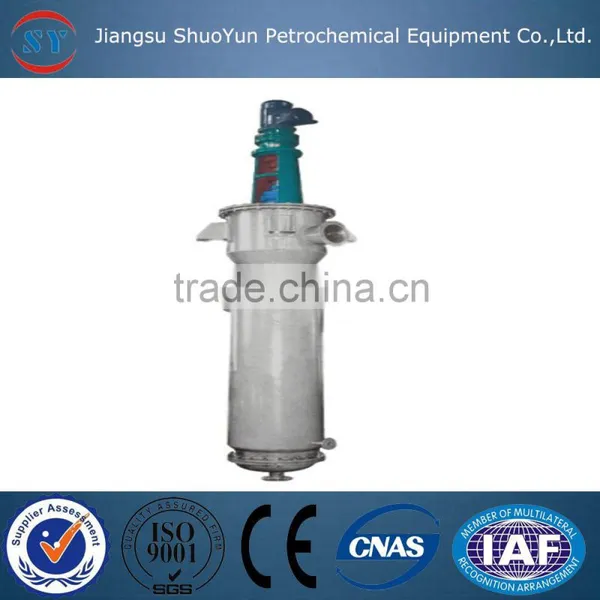

LG series centrifugal scraper film evaporator
Dear Customers:
We have Trade Assurance granted by , which means you will receive 100% refund for all of the orders if the products do not meet your quality requirement or delivery time!
Company Introduction :
Jiangsu Shuo Yun Petrochemical Equipment Co.,Ltd has the aptitude to design and manufacture A-class boiler and A1, A2,A3 type of pressure vessel. We can produce all kinds of metallic pressure vessels that contain reactor pressure vessel, heat exchanger,separator pressure vessel and storage vessel. We have get ASME U stamp and CE. Our company has covered an area of 48000m2, with the workshops of 18 meters high and 130 meters long. At present, the company has an annual output of various pressure vessels of 2500 units , and with the steel materials of 10,000 tons
LG series centrifugal scraper film evaporator Introduction:
Wiped film evaporator is the use of high-speed rotation into a uniform distribution of the liquid film evaporation or distillation carried out an efficient evaporation, distillation equipment, but also for deodorization, defoaming reaction and heating and cooling unit operation can be widely applied in Western pharmaceutical, food, light industry, petroleum, chemical industry, environmental protection and other industries.
Performance and features:
1, the heat transfer coefficient is high, large evaporation capacity, evaporation intensity can reach 200kg/m2/h, high thermal efficiency.
2, material heating time is short, between about 5-10 seconds, and work under vacuum conditions, more favorable for heat-sensitive materials, maintaining a variety of ingredients does not produce any decomposition, to ensure product quality.
3, to adapt to a wide range of viscosity, low viscosity materials can handle the material viscosity up to 100,000 CP.
4, changing the direction of rotation of the blade grooves, you can adjust the material evaporation time in the evaporator.
5, the cylinder wall evaporator through precision boring and polished surface is not easy to produce coke, scaling.
Product overview
The main technical parameters of the reference table
project model |
LG0.8 |
LG1.5 |
LG2.5 |
LG4 |
LG6 |
LG20 |
heat transfer area(m2) |
0.8 |
1.5 |
2.5 |
4 |
6 |
20 |
steam pressure(MPa) |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
vacuum degree(KP) |
70 |
70 |
70 |
70 |
70 |
70 |
evaporation(kg/h) |
160 |
300 |
500 |
800 |
1200 |
2000 |
energy(kg/h) |
168 |
315 |
525 |
840 |
1260 |
2100 |
motor power(KW) |
1.1 |
1.5 |
2.2 |
4 |
5.5 |
11 |
speed(rpm) |
300 |
300 |
280 |
134 |
134 |
88 |
device height(mm) |
2500 |
3295 |
4100 |
5180 |
5800 |
7800 |
Why Choose us?
1. Famous Brand in the Industry
2. Best Quality Standard, most competitive Price
3. Fast Delivery time, excellent after-sales service for 2 years.
Certificates,Products,Equipments
