Tube Condenser

Tube Condenser thumbnail-1
Tube Condenser thumbnail-2
Tube Condenser thumbnail-3
Tube Condenser thumbnail-4
Tube Condenser thumbnail-5
Tube Condenser thumbnail-6
Tube Condenser photo-1
Tube Condenser photo-2

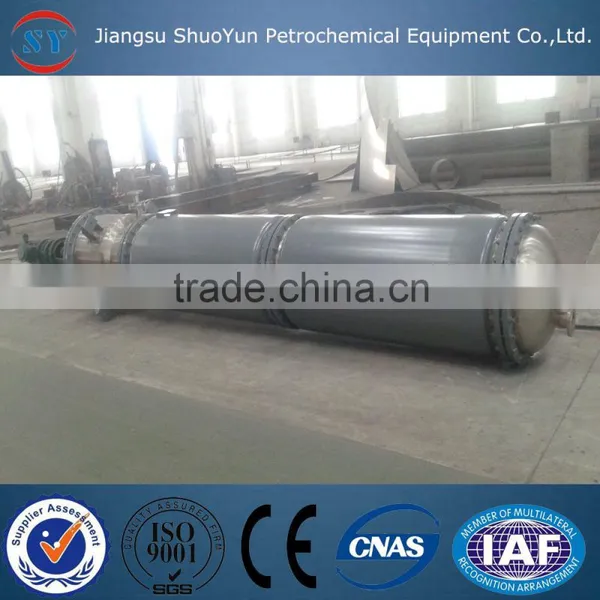

Tube Condenser photo-3
Tube Condenser photo-4

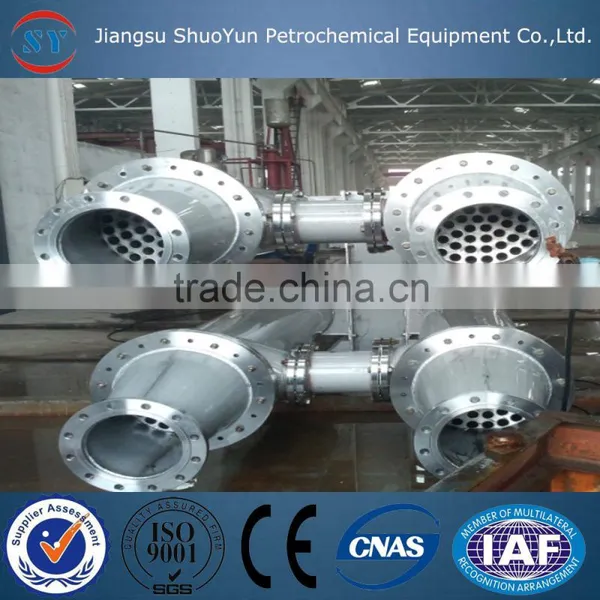

Tube Condenser photo-5
Tube Condenser photo-6
US$ 1 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
shuoyun
Contact Supplier Request Quote Chat Now
Jiangsu Shuo Yun Petrochemical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name shuoyun
Model Number CONDENSER
Structure Tube Heat Exchanger
Liquid Flow Rate as per design
Maximum Working Pressure 50 bars
Voltage as per design
Weight as per design
Dimension(L*W*H) as per design
Power(W) as per design
Certification CE, Other, CE, ASME
Warranty 2 years
After-sales Service Provided Engineers available to service machinery overseas

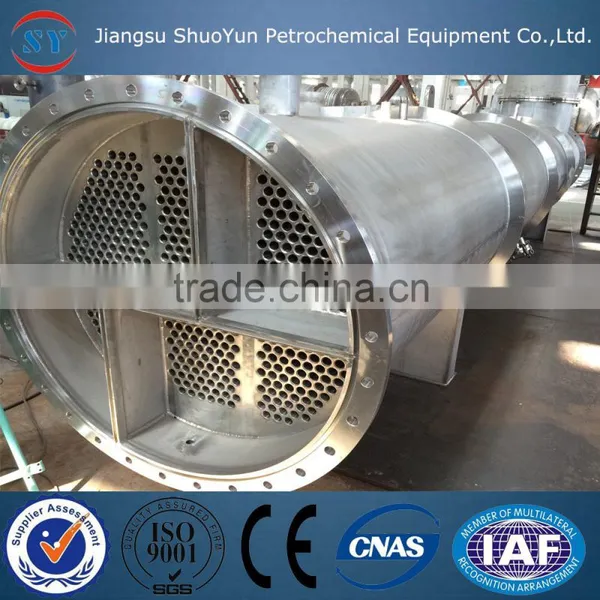

Tube condenser
The condenser can be designed and manufactured all as per Customers' drawings or requirement.

The material has stainless stell, Duplex steel, Titanium and carbon steel.

The max. pressure can be up to 50 bars at both tube side and shell side.

Our tube and shell Condenser / Heat Exchanger can be classified into several sorts as per different materials, i.e., carbon steel, stainless steel, Titanium, and carbon steel /stainless steel and Titanium mixture. As per the shapes, there are fixed tube-sheet, floating head and U- tube. As per the structure, there is single-trip, round-trip and multi-trip. Heat conduct area is 0.5-500 m2 and can be set as per user’s demands.

Nominal
Size		 Trips Tubes Heat Exchange Area, Nominal Value/ Calculation Value Section of Tube, Flux under the flow rate of 0.5 m/sec Nom
inal
Pres
sure
Tube Length φ25×2.5
1500 2000 3000 4000 6000 φ25×2
159 1 14 1.51.62 22.17 33.27

0.0044/0.0049

 7.92/8.82 0.25
219 1 26 3/3.00 4/4.02 6/6.06 8/8.1   0.0082/0.0090 14.76/16.20 0.6
  2 26 3/3.00 4/4.02 6/6.06 8/8.81   0.0041/0.0045 7.38/8.01 1.0
273 1 44 5/5.08 7/5.18 10/10.26 14/13.72 21/20.63 0.0138/0.0152 24.84/27.36 1.6
  2 40 5/4.62 6/6.19 9/9.33 12/12.47 19/18.76 0.0063/0.0069 11.24/12.42 2.5
325 1 60 7/6.93 9/9.28 14/14.00 19/18.71 28/28.13 0.0188/0.0208 33.84/37.44 0.6
  2 56 6/6.47 9/8.66 13/13.05 17/17.46 36/26.26 0.0088/0.0097 15.84/17.46 1.0
400 1 119 14/13.47 18/18.41 28/27.76 37/37.10 55/55.8 0.0374/0.0412 67.32/74.16 1.6
  2 110 13/12.70 17/17.02 26/25.66 34/34.20 50/51.58 0.0173/0.0190 31.14/34.20 2.5
500 1 185     45/4.15 55/57.68 85/86.74 0.0581/0.0641 104.58/115.38
  2 180     40/41.99 55/57.68 85/86.74 0.0283/0.0312 50.94/56.16
600 1 269     60/62.7 85/83.88 125/126.13 0.0845/0.0932 152.10/167.76
  2 266     60/32.05 80/82.94 125/14.72 0.0418/0.0461 75.24/83.98
700 1 379     90/88.41 120/118.17 175/177.71 0.0091/0.1313 214.38/236.34
  2 358     85/83.51 110/111.62 165/167.85 0.0562/0.0620 101.16/111.60
800 1 511     120/119.20 160/159.16 240/239.60 0.1605/0.1770 288.90/318.60
  2 488     115/113.83 150/152.16 230/228.81 0.0767/0.0845 138.06/152.10
900 1 649     150/151.39 200/202.36 305/304.3 0.2039/0.2248 367.02/404.46
  2 630     145/146.96 195/196.44 295/295.40 0.0990/0.1091 178.20/196.38
1000 1 805     185/187.78 250/251.00 375/377.45 0.2529/0.2788 455.22/501.74
  2 792     185/184.75 245/246.95 370/371.36 0.1244/0.1374 223.92/246.96

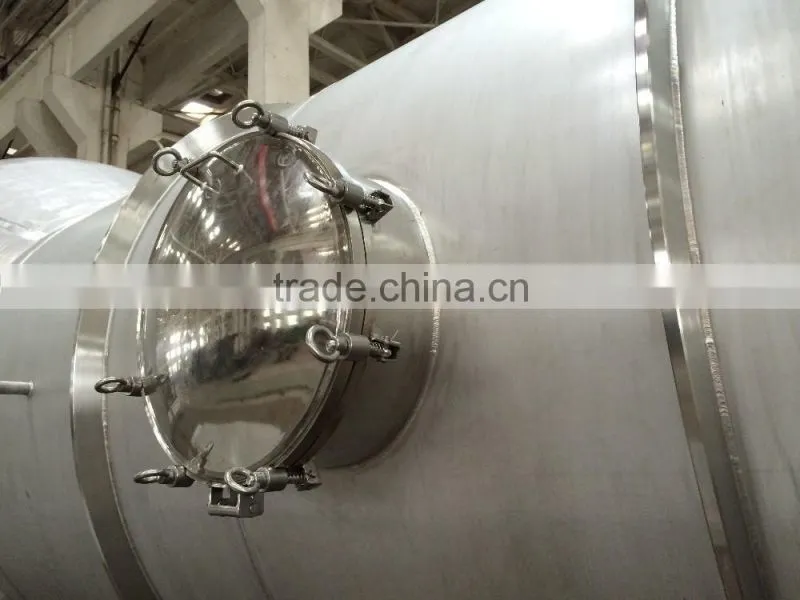

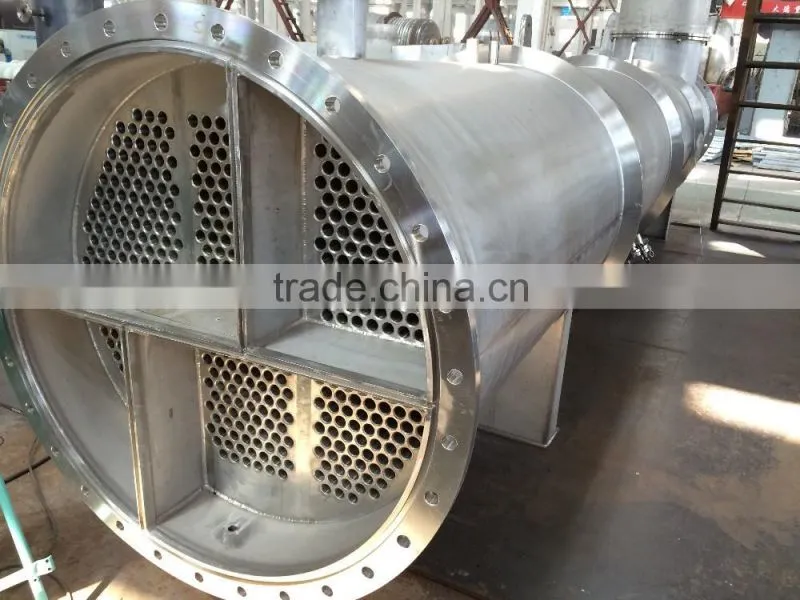

Tube condenserTube condenserTube condenserTube condenserTube condenser Tube condenser
Certificate,Products

Certificates,Products,EquipmentsTube condenserTube condenserTube condenserTube condenser

Tube condenser
