Specifications
1.Power transmission wormgearbox2.Vertical distance between the centers of worm shaft and gear varies,25mm to 150mm
- Wide transmission rate, strong output torque
- Structure: base-mounted, input shaft, input flange, additional single or double output shafts
- Compact mechanical structure, light weight, small volume
- Good temperature change resistance
- Smooth operation with lower noise or vibration
- Easy mounting, free linking, high efficiency
- Wide range of application
Technical data:
| Model | RV025 030 040 050 063 075 090 110 130 150 |

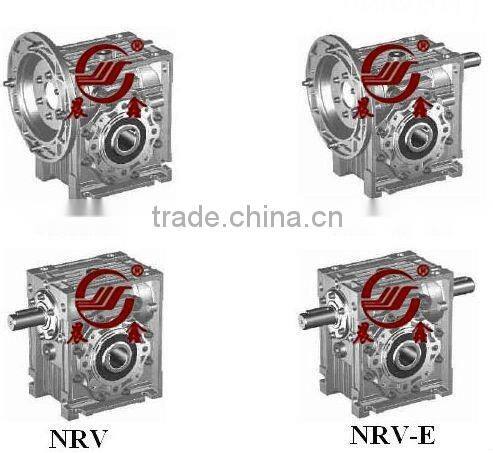

| Single unit versions | NMRV - fitted for motor flanged coupling, NRV - with input shaft, NMRV-E motor flanged coupling with worm extension shaft, NRV-E with double extension worm shaft, |
| Power | 0.06----15KW |
| Single unit reduction ratio | 1:5 7.5 10 15 20 25 30 40 50 60 80 100 |
| Output torque | 2.6---1195N.M |
| Application | Widely used in flow-line transmission devices,like conveyor belts,etc |
| After-sale service | Warranty,one year,subject to proper operation and installation;during warranty,free components or complete unit will be provided to replace the damaged or broken ones from quality problems;free technical support all the time. |
