NMRV063 Speed Reducer Gear Motor Transmission With 550w Electric dc Motor Quality Choice

FOB Price

US$ 100 - 110 / Piece

1 Piece(Min. Order)

Port NingBo port / Shanghai port / UPS / DHL/ TNT
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Gearing Arrangement	Worm	Output Torque	60N.M
Rated Power	0.75KW	Input Speed	1400rpm
Output Speed	70rpm	Place of Origin	Zhejiang, China
Model Number	NMRV063	Brand Name	Chenxin

Product Description

Characteristics:

The Speed reducer motor features

(1) Large output torque

(2) Safe, reliable, economical and durable
(3) Stable transmission, quiet operation

(4) High heat-radiating efficiency, high carrying ability
(5) Combination of two single-step worm gear speed reducers, meeting the requirements of super speed ratio

Performance parameter for RV series worm gear speed reducer

Motor power	Model	speed ratio	output speed	output toruqe
0.25kw 1400rpm	NMRV063	40	35rpm	48.0N.M
	NMRV063	50	28rpm	55.0N.M
	NMRV063	60	24rpm	63.0N.M
	NMRV063	80	18rpm	76.0N.M
	NMRV063	100	14rpm	87.0N.M
0.37kw 1400rpm	NMRV063	25	56rpm	50.0N.M
	NMRV063	30	47rpm	57.0N.M
	NMRV063	40	35rpm	70.0N.M
	NMRV063	50	28rpm	82.0N.M
	NMRV063	60	24rpm	94.0N.M
	NMRV063	80	18rpm	113.0N.M
	NMRV063	100	14rpm	129.0N.M
0.55kw 1400rpm	NMRV063	15	94rpm	47.0N.M
	NMRV063	20	70rpm	60.0N.M
	NMRV063	25	56rpm	72.0N.M
	NMRV063	30	47rpm	82.0N.M
	NMRV063	40	35rpm	104.0N.M
	NMRV063	50	28rpm	122.0N.M
	NMRV063	60	24rpm	140.0N.M
	NMRV063	80	18rpm	174.0N.M
0.75kw 1400rpm	NMRV063	10	140rpm	45.0N.M
	NMRV063	15	94rpm	63.0N.M
	NMRV063	20	70rpm	82.0N.M
	NMRV063	25	56rpm	98.0N.M
	NMRV063	30	47rpm	112.0N.M
	NMRV063	40	35rpm	141.0N.M
	NMRV063	50	28rpm	171.0N.M
1.1kw 1400rpm	NMRV063	5	280rpm	35.0N.M
	NMRV063	7.5	186rpm	50.0N.M
	NMRV063	10	140rpm	65.0N.M
	NMRV063	15	94rpm	92.0N.M
	NMRV063	20	70rpm	120.0N.M
	NMRV063	25	56rpm	144.0N.M
	NMRV063	30	47rpm	164.0N.M
1.5kw 1400rpm	NMRV063	5	280rpm	55.0N.M
	NMRV063	7.5	186rpm	67.5N.M
	NMRV063	10	140rpm	88.0N.M
	NMRV063	15	94rpm	128.0N.M
	NMRV063	20	70rpm	164.0N.M

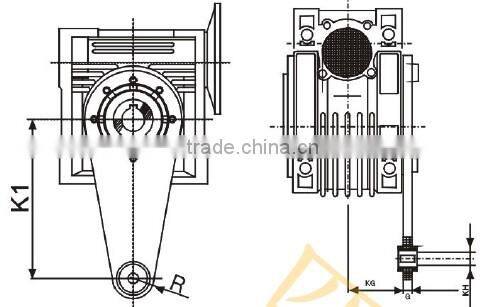

The speed reducer NMRV063 Accessories outline dimension

	K1	G	KG	KH	R
NMRV063	150	14	49	10	18

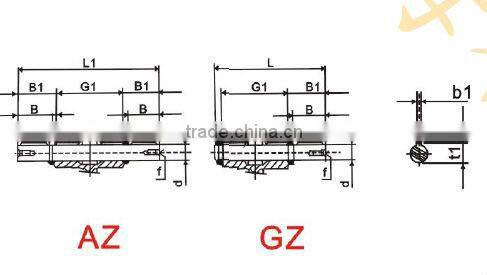

Speed reducer Size of Single Extension & Double extension

	D(h6)	B	B1	G1	L	L1	f	b1	t1
NMRV063	25	50	53.5	92	153	199	M10	8	28

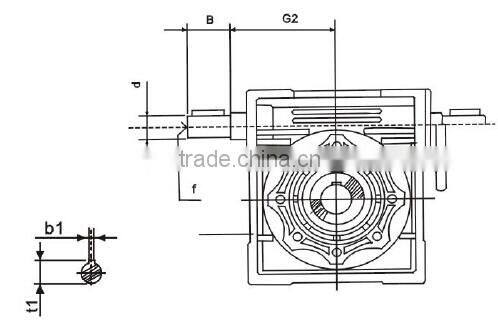

The NMRV063 speed reducer Motor - Double extension worm shaft

	G2	d(j6)	B	F	b1	t1
NMRV063	75	19	40	M6	6	21.5

The NMRV040 speed reducer Motor

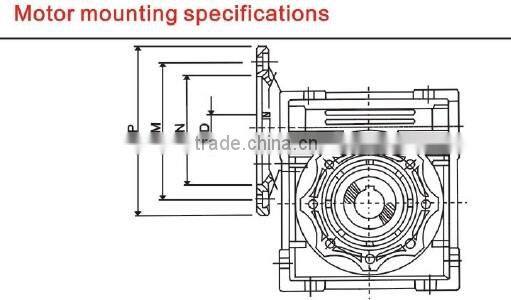

IEC Motor adapters
Model	PAM(IEC)	N	M	P	ration	Shaft:D
NMRV063	90B5	130	165	200	40	-
	90B14	95	115	140	40	-
	80B5	130	165	200	40	19
	80B14	80	100	120	40	19
	71B5	110	130	160	40	14
	71B14	70	85	105	40	14

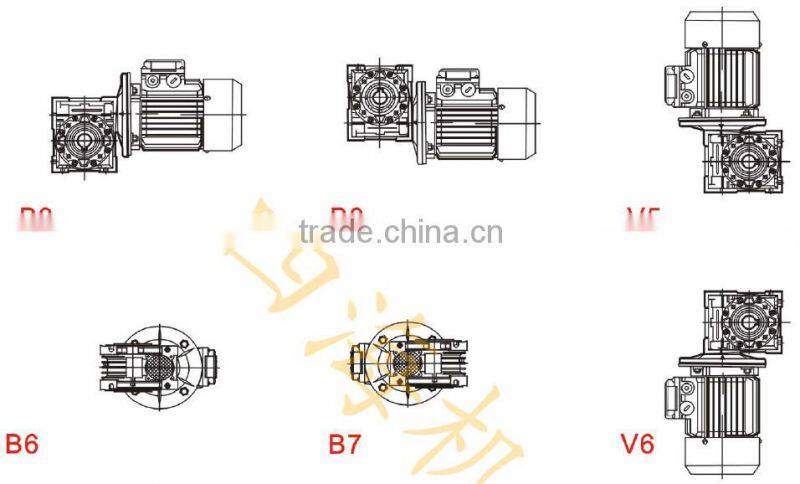

The NMRV063 speed reducer Motor - Mounting positions

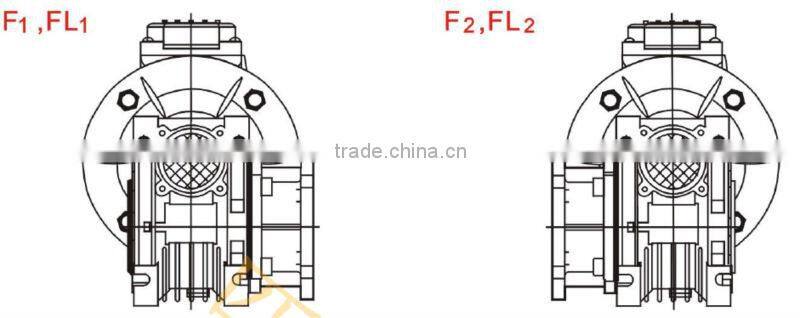

Worm gearbox of Position diagram for output flange

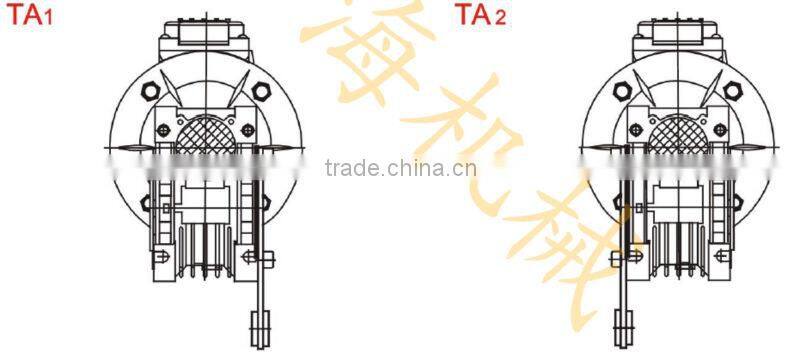

Worm gearbox of position diagram for torque arm

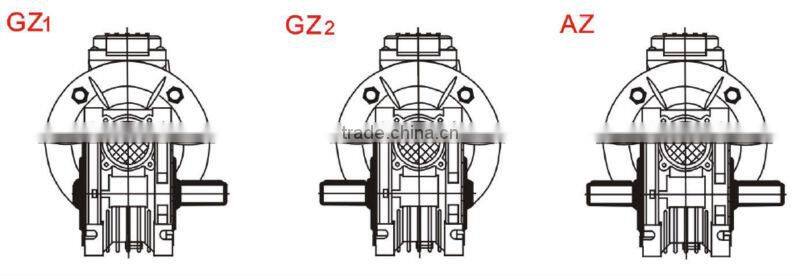

Worm gearbox of position diagram for one-way output shaft

Notice for ordering:

1) when ordering,please refer to the details of the products and tell us the exact type your need according to your requirements,like input speed,output torque,configuration,installation,etc:the installation position of the products in the order should accord with your actual needs,otherwise, it will result in oil leakage, which will impact the serving life of the products negatively.if there is special requirement to the installation position,please stress it and inform us.

2) to attain the excellent state of the variators, the common working speed should be chosen in the middle position,instead,it ismot appropriate to choose in the positions of min,or max.speed

3) if your requirements of worm gearbox or speed variator are different from shte standard products as in the catalogue,like:some portion that should be customized or mounted with special motors,please inform us in advance

Technical data:

Model	RV025 030 040 050 063 075 090 110 130 150
Single unit versions	NMRV - fitted for motor flanged coupling, NRV - with input shaft, NMRV-E motor flanged coupling with worm extension shaft, NRV-E with double extension worm shaft,
Power	0.06----15KW
Single unit reduction ratio	1:5 7.5 10 15 20 25 30 40 50 60 80 100
Output torque	2.6---1195N.M
Worm shaft	20CrMnTi with carburizing and quenching.The hardness of surface is 56-62HRC with carbonized layer 0.5-0.8mm
Worm wheel	worm mandrel is HT250,and worm ring gear,ZQSn10-1
