Factory Supplier RV Series Worm Gearbox Speed Reducer

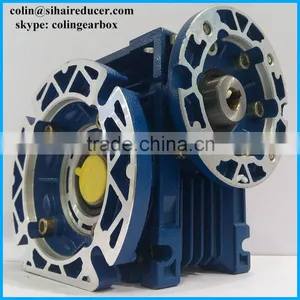

Factory Supplier RV Series Worm Gearbox Speed Reducer thumbnail-1
Factory Supplier RV Series Worm Gearbox Speed Reducer thumbnail-2
Factory Supplier RV Series Worm Gearbox Speed Reducer photo-1

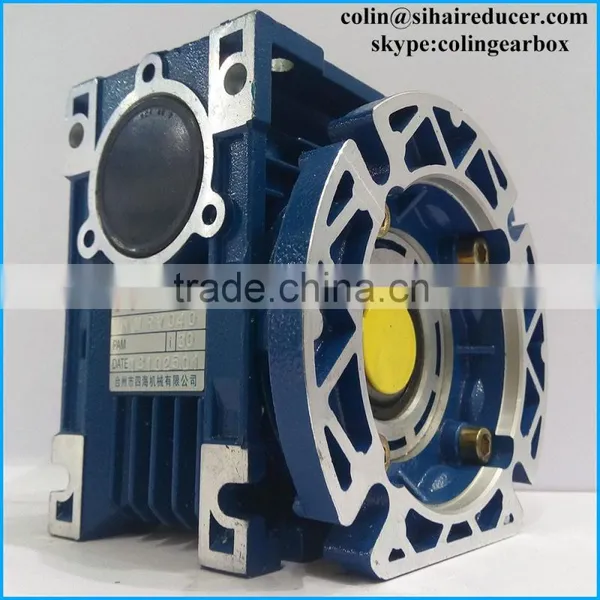

Factory Supplier RV Series Worm Gearbox Speed Reducer photo-2
US$ 28 - 48 MOQ: 1 Piece
Key Specifications
Get Latest Price
Gearing Arrangement:
Worm
Output Torque:
2~24N.M
Rated Power:
0.06kw~~0.18kw
Contact Supplier Request Quote Chat Now
Taizhou Sihai Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NingBo Port / Shanghi Port / UPS / DHL
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Gearing Arrangement Worm
Output Torque 2~24N.M
Rated Power 0.06kw~~0.18kw
Input Speed 1400rpm
Output Speed 18~~280rpm
Place of Origin Zhejiang, China
Model Number NMRV030
Brand Name Chenxin

Characteristics:

The Speed reducer motor features

(1) Large output torque

(2) Safe, reliable, economical and durable
(3) Stable transmission, quiet operation

(4) High heat-radiating efficiency, high carrying ability
(5) Combination of two single-step worm gear speed reducers, meeting the requirements of super speed ratio







Factory Supplier RV Series Worm gearbox speed reducer

Factory Supplier RV Series Worm gearbox speed reducer

Performance parameter for RV series worm gear speed reducer

Motor power  Model speed ratio output speed output toruqe
0.06kw 1400rpm NMRV030 5 280rpm  2.0N.M
NMRV030 7.5 186rpm  2.6N.M
NMRV030 10 140rpm  3.3N.M
NMRV030 15 94rpm  4.7N.M
NMRV030 20 70rpm  5.9N.M
NMRV030 25 56rpm  6.8N.M
NMRV030 30 47rpm  7.9N.M
NMRV030 40 35rpm  9.7N.M
NMRV030 50 28rpm 11.0N.M
NMRV030 60 24rpm 12.0N.M
NMRV030 80 18rpm 14.0N.M
0.09kw 1400rpm NMRV030 5 280rpm  2.7N.M
NMRV030 7.5 186rpm  3.9N.M
NMRV030 10 140rpm  5.0N.M
NMRV030 15 94rpm  7.0N.M
NMRV030 20 70rpm  8.8N.M
NMRV030 25 56rpm 10.0N.M
NMRV030 30 47rpm 12.0N.M
NMRV030 40 35rpm 14.0N.M
NMRV030 50 28rpm 17.0N.M
NMRV030 60 24rpm 18.0N.M
0.12kw 1400rpm NMRV030 5 280rpm  3.6N.M
NMRV030 7.5 186rpm  5.2N.M
NMRV030 10 140rpm  6.6N.M
NMRV030 15 94rpm  9.3N.M
NMRV030 20 70rpm 12.0N.M
NMRV030 25 56rpm 14.0N.M
NMRV030 30 47rpm 16.0N.M
NMRV030 40 35rpm 19.0N.M
NMRV030 50 28rpm 22.0N.M
0.18kw 1400rpm NMRV030 5 280rpm  5.3N.M
NMRV030 7.5 186rpm  7.7N.M
NMRV030 10 140rpm 10.0N.M
NMRV030 15 94rpm 14.0N.M
NMRV030 20 70rpm 18.0N.M
NMRV030 25 56rpm 20.0N.M
NMRV030 30 47rpm 24.0N.M



The speed reducer NMRV030 Accessories outline dimension

 Factory Supplier RV Series Worm gearbox speed reducer



K1

G

KG

KH

R

NMRV030

85

 14

24

8

15







Speed reducer Size of Single Extension & Double extension

Factory Supplier RV Series Worm gearbox speed reducer



D(h6)

B

B1

G1

L

L1

f

b1

 t1

NMRV030

14

30

32.5

63

102

128

M6

5

16







The NMRV030 speed reducer Motor - Double extension worm shaft

Factory Supplier RV Series Worm gearbox speed reducer



G2

d(j6)

B

F

b1

t1

NMRV030

45

9

20

--

3

10.2







The NMRV030 speed reducer Motor

Factory Supplier RV Series Worm gearbox speed reducer



IEC Motor adapters

Model

PAM(IEC)

N

M

P

ration

Shaft:D



NMRV030

63B5

95

115

140

7.5

11

63B14

60

75

90

7.5

11

56B5

80

100

120

7.5

9

56B14

50

65

80

7.5

9







  The NMRV030 speed reducer Motor - Mounting positions

Factory Supplier RV Series Worm gearbox speed reducer













Worm gearbox of Position diagram for output flange

Factory Supplier RV Series Worm gearbox speed reducer





Factory Supplier RV Series Worm gearbox speed reducerFactory Supplier RV Series Worm gearbox speed reducer





Worm gearbox of position diagram for torque arm

 Factory Supplier RV Series Worm gearbox speed reducer





Worm gearbox of position diagram for one-way output shaft

Factory Supplier RV Series Worm gearbox speed reducer



Notice for ordering:



1) when ordering,please refer to the details of the products and tell us the exact type your need according to your requirements,like input speed,output torque,configuration,installation,etc:the installation position of the products in the order should accord with your actual needs,otherwise, it will result in oil leakage, which will impact the serving life of the products negatively.if there is special requirement to the installation position,please stress it and inform us.



2) to attain the excellent state of the variators, the common working speed should be chosen in the middle position,instead,it ismot appropriate to choose in the positions of min,or max.speed



3) if your requirements of worm gearbox or speed variator are different from shte standard products as in the catalogue,like:some portion that should be customized or mounted with special motors,please inform us in advance
