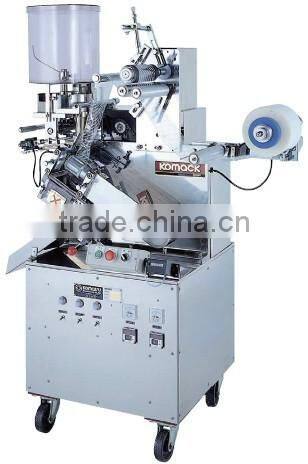

KP-109 SINGLE ROLL TYPE HIGH-SPEED AUTOMATIC POWDER & GRANULE FILLING AND PACKAGING MACHINE
Product Specification:
This is a twin type fillling and packaging machine which is exclusively used for “powder/granule”and “liquid/paste”.This model can fill “powder(for granule)”and “liquid(or paste)”at the same time into two chambers.For improving the quality of package,the print registration is possible by photocell control device,optional item.This machine can use all kinds of laminate film.
| SPECIFICATIONS: | |
| Filling Product: | Powder & Liquid
|
| Pouch Pattern: | 3-side seal & 4-side seal
|
| Pouch Height Range: | 50-150mm
|
| Pouch Width: | 70-90mm
|
| Packaging Capacity: | 40-80 pouches per minute (depending on pouch height,film composition,product property,etc)
|
| Filling Capacity: | 0.3-5c.c.(powder),3-30c.c.(liquid) (depending on product property and filling device to be used)
|
| Power Consumption: | 3-phase 380V 4.9kw
|
| Machine Dimensions: | 900mm(L)×1300mm(W)×2200mm(H)
|
| Machine Weight: | Approx.800kg
|
| Application: | This machine is widely used in separate packaging powder(granule) and liquid,for example,soy sauce and ground pepper,edible oil and soup powder,mayonnaise and pepper salt,etc. |
Advantage:
1. Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
3. Safty device: Machine stop at abnormal air pressure, heater disconnection alarm.
4. The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clip, easily operate, and save time.
5. The part where touch to the materials is made of stainlesss steel is accord with the request of GMP.
Auto Package process
Packing Sample:
After Service:
The seller guarantee to solve all problems which may occur due to manufacture’s mistakes or wrong design, a
nd to provide all necessary spare parts and in case if the problem is serious and can’t be solved by buyer, The
seller has to send his technician on the buyer’s account.
