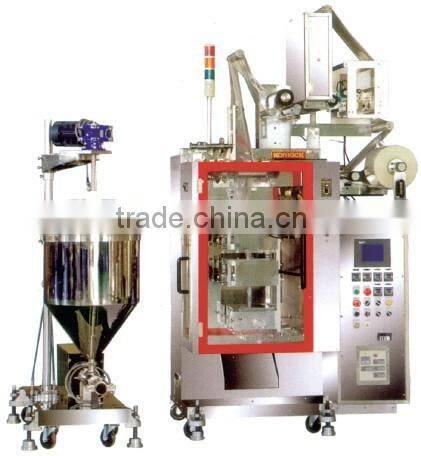

TYL-314·3/L SINGLE-LINE STICK AUTOMATIC PASTE (LIQUID) FILLING AND PACKAGING MACHINE
Product Specification:
This model is for stick type pouch,based on the the heating roll sealing method,specially for liquid and viscous products.The machine is 1-lane,but continuous driven type and the revolution will be increased as compared with other stick type machine,which gains high reputation as an economical type.All necessary functions such as photocell control device,pouch height adjustable system,cutter/notcher positioning system,etc.are equipped with as standard devices.
| SPECIFICATIONS: | |
| Filling Product: | Liquid & Paste
|
| Pouch Pattern: | Stick type
|
| Pouch Height Range: | 45-160mm
|
| Pouch Width: | 25-50mm
|
| Packaging Capacity: | 20-80 pouches per minute (depending on pouch height,film composition,product property,etc)
|
| Filling Capacity: | 10-50c.c. (depending on product property and filling device to be used)
|
| Power Consumption: | 3-phase 380V 5.4kw
|
| Machine Dimensions: | 1200mm(L)×1150mm(W)×1800mm(H)
|
| Machine Weight: | Approx.600kg |
| Application: | This machine is applicable to filling and packaging of cheese,liquid soup,cosmetics, mayonnaise,jam,fruit jelly,etc |
Advantage:
1. Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
3. Safty device: Machine stop at abnormal air pressure, heater disconnection alarm.
4. The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clip, easily operate, and save time.
5. The part where touch to the materials is made of stainlesss steel is accord with the request of GMP.
Auto Package process

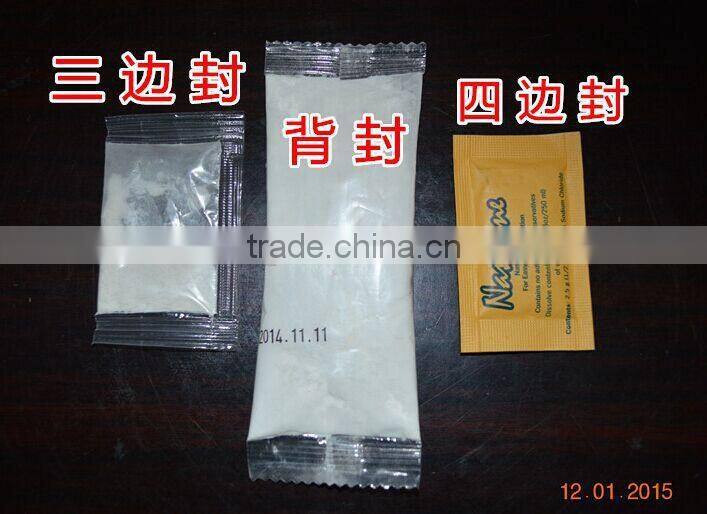

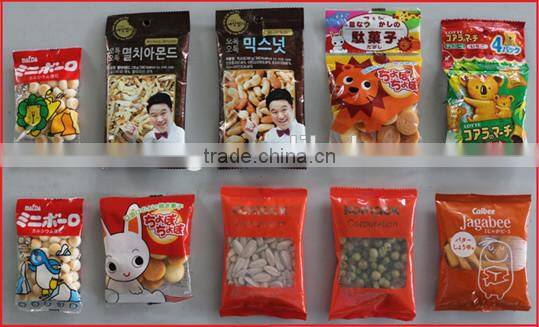

Packing Sample:
After Service:
The seller guarantee to solve all problems which may occur due to manufacture’s mistakes or wrong design, a
nd to provide all necessary spare parts and in case if the problem is serious and can’t be solved by buyer, The
seller has to send his technician on the buyer’s account.
