automatic vertical packaging machine

FOB Price

USD $4,000 - $8,000 / Set

1 Set(Min.Order)

Supply Ability 50 Set / Sets per Month
Port Shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Function	Embossing, Filling, Sealing
Application	Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles	Packaging Type	Bags
Packaging Material	Plastic	Automatic Grade	Automatic
Driven Type	Electric	Voltage	3-phase 380V
Power	5.5kw	Place of Origin	Shanghai, China
Brand Name	CUIWANG	Model Number	TYP-602 2/S
Dimension(LWH)	1100mm(L)920mm(W)1960mm(H)	Certification	CE &SGS&ISO
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

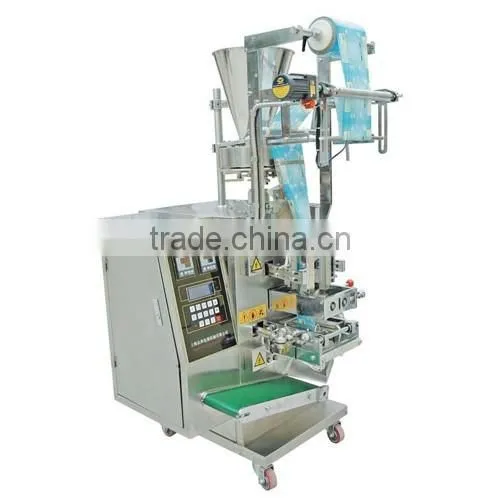

vertical packaging machine

TYP-602·2/S AUTOMATIC GRANULE,POWDER FILLING AND PACKAGING MACHINE

Product Specification:

This model is based on the the heating roll sealing method,specially for granule and powder products.This machine is controlled by the servo motor so that the bag length ranging from 60 to 140mm can be adjusted.For improving the quality of package,the print registration is possible by photocell control device.In addition,the structure of the machine is simple,low price and good quality.

SPECIFICATIONS:
Filling Product:	Granule & Powder
Pouch Pattern:	3-side seal & 4-side seal
Pouch Height Range:	60-140mm
Pouch Width:	25-100mm
Packaging Capacity:	3-side seal: 20-90 pouches per minute 4-side seal: 35-100 pouches per minute (depending on pouch height,film composition,product property,etc)
Filling Capacity:	1-30cc. (depending on product property and filling device to be used)
Power Consumption:	3-phase 380V 5.5kw
Machine Dimensions:	1100mm(L)×920mm(W)×1960mm(H)
Machine Weight:	Approx.400kg

Application:

Especially applicable to packaging of all kinds of powder,granule etc.

Advantage:

1. Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.

2. Automatic checking function: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.

3. Safty device: Machine stop at abnormal air pressure, heater disconnection alarm.

4. The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clip, easily operate, and save time.

5. The part where touch to the materials is made of stainlesss steel is accord with the request of GMP.

Auto Package process

Packing Sample:

After Service:

The seller guarantee to solve all problems which may occur due to manufacture’s mistakes or wrong design, a

nd to provide all necessary spare parts and in case if the problem is serious and can’t be solved by buyer, The

seller has to send his technician on the buyer’s account.
