Liquid filling packaging machine

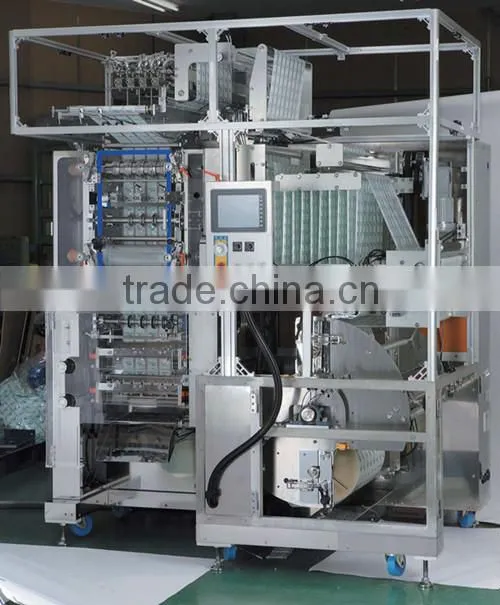

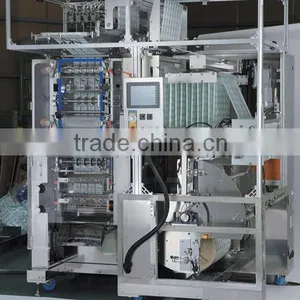

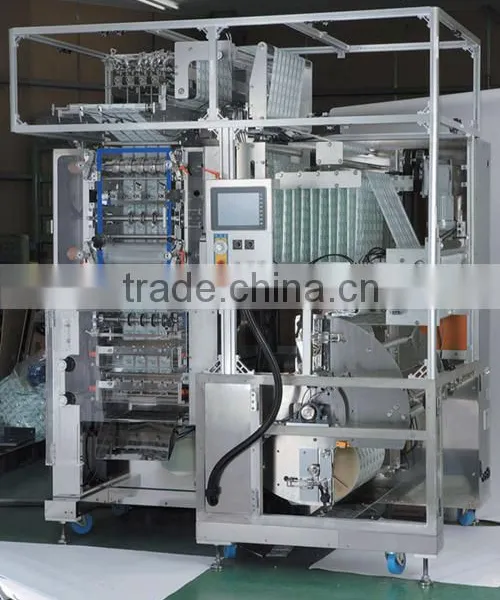

SKL-3000 AUTOMATIC MULTI-LANE LIQUID & PASTE FILLING AND PACKAGING MACHINE
Product Specification:
This machine is Multi-lane liquid&paste automatic filling and packaging machine, Its advantages: wide application, simple operation, easy maintenance. This machine is used in multi-lane of 4-side packing.The suggestion that you can apply it in Multi-lane making when the width X lane amounts + bilateral cutting width =less than 300mm
| SPECIFICATIONS: | |
| Filling Product: | Liquid & Paste
|
| Pouch Pattern: | 4-side seal
|
| Pouch Height Range: | 2divisions100~200mm 3divisions 80~150mm 4divisions 55~100mm 6divisions 40~60mm According to the width of horizontal sealing pouch height range is different.
|
| Pouch Width: | 280mm(MAX)+Both sides of the cutting part Even in this range,one lane’s pouch width will be limitted by the relationship between the device
|
| Packaging Capacity: | 20-150 pouches per minute(1-lane) ×lane amount (depending on pouch height,film composition, product property,etc)
|
| Filling Capacity: | 1-50c.c. (depending on product property and filling device to be used)
|
| Applicable Film Width: | Maximum 560mm+
|
| Maximum Film Roll Dia: | 400mm
|
| Power Consumption: | 3-phase 380V 14.95kw
|
| Air Consumption: | 300L/min(0.4~0.5Mpa)
|
| Machine Dimensions: | 1900mm(L)×1500mm(W)×2300mm(H)
|
| Machine Weight: | Approx.1600kg |
| Application: | This machine is broadly used in packaging liquid soup,cosmetics,cleansing liquid and mayonnaie,which require high filling precision. |
Advantage:
1. Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
3. Safty device: Machine stop at abnormal air pressure, heater disconnection alarm.
4. The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clip, easily operate, and save time.
5. The part where touch to the materials is made of stainlesss steel is accord with the request of GMP.
Auto Package process
Packing Sample:
After Service:
The seller guarantee to solve all problems which may occur due to manufacture’s mistakes or wrong design, a
nd to provide all necessary spare parts and in case if the problem is serious and can’t be solved by buyer, The
seller has to send his technician on the buyer’s account.
