Algeria Brick QT5-15 Full automatic brick making machine is with PLC intelligent control Man-machine interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function. So it doesn’t need a professional person but only need a simple training to the operator.
Production scope: QT5-15 fully automatic block making machine is a multi-function machine, it can produce various bricks/blocks including color-face bricks (layered material feeding), through-body tiles, dock linkage blocks, road curb bricks, solid bricks, hydraulic blocks, hollow blocks, perforated bricks, and standard bricks etc.
Model: QT5-15 Full automatic brick making machine
Vibration frequency:3800-4500 times/sub(adjustable)
vated pressure: 25mpa
Molding cycle: 15-25s
pallet size: 1100*560*20(mm)
Power: 31.4KW
Weight: 6.9T
machine size: 9450*3300*2700mm
Production capacity
Hollow block: 5pcs/mould (390*190*190), 7200-11520pcs/day (8hours)
Cellular block: 16pcs/mould (240*115*90), 23000-28800pcs/day (8hours)
solid block: 34pcs/mould( 240*115*51mm) , 49000-61440pcs/day(8 hours)
Holland Brick : 8pcs/mould( 200*250*60mm), 10500-13000pcs/day(8 hours)
Holland Brick :18pcs/mould( 200*250*60mm), 23900-30000pcs/day(8 hours)
Note: Any other blocks dimension can be designed.
Main Raw Materials
Fly ash, cement, sand, crash stone, additive, constrution garbage etc.

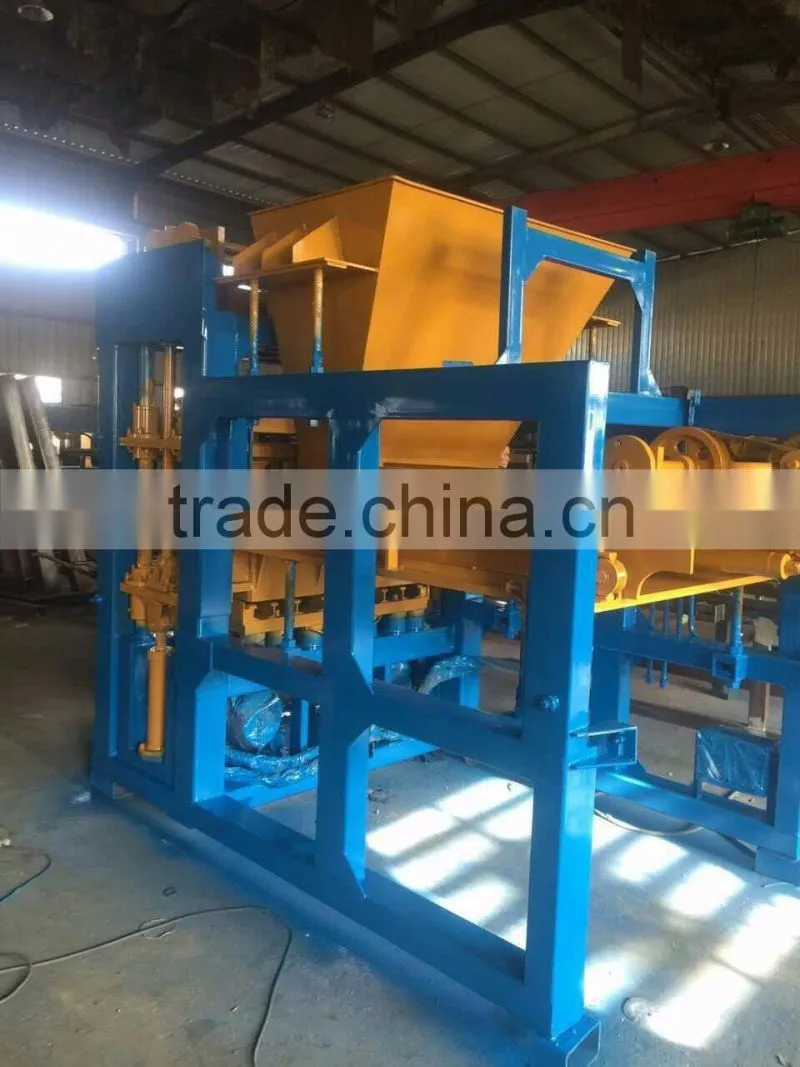

QT5-15 Full automatic brick making machine host machine:
One base brick making production line usually includes one host machine, one batching machine, one mixer, one block stacker, some bamboo pallets and some molds you need. Cement scale, pigment feeder, srew conveyor and cement silo can be choice.

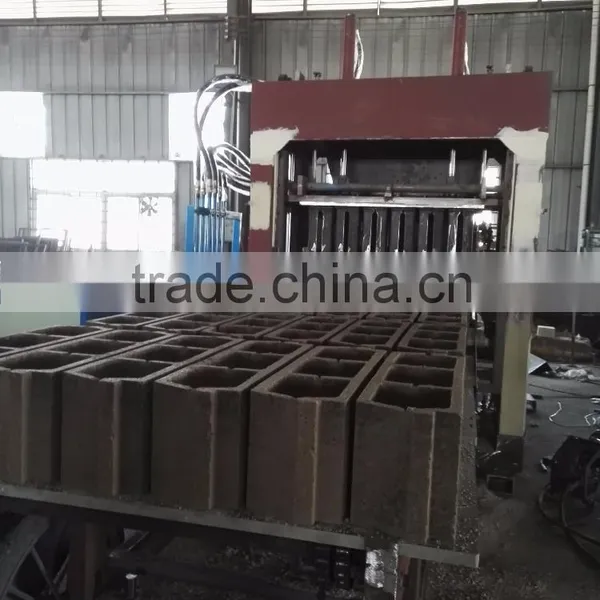

Block samples produced by QT5-15 brick making production line:

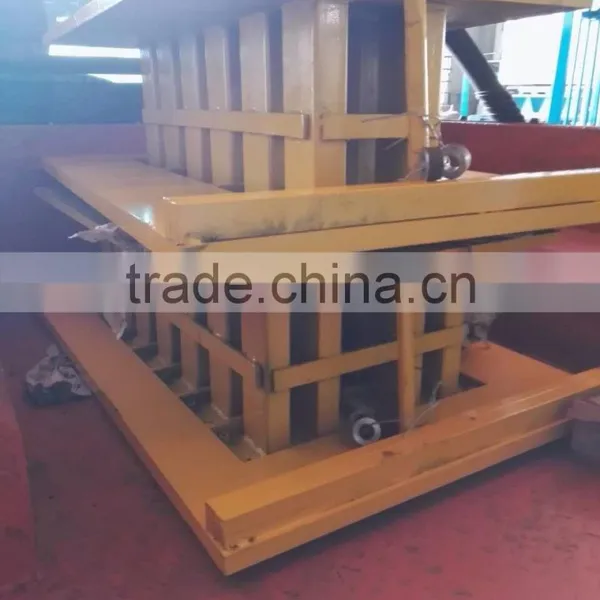

Block molds:
PL800 batching machine and JS500 mixer:
Sample brick
