Block brick making machine QT5-15 popular model in Algeria

Block brick making machine QT5-15 is with PLC intelligent control Man-machine interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function. So it doesn’t need a professional person but only need a simple training to the operator.

Production scope: QT5-15 fully automatic block making machine is a multi-function machine, it can produce various bricks/blocks including color-face bricks (layered material feeding), through-body tiles, dock linkage blocks, road curb bricks, solid bricks, hydraulic blocks, hollow blocks, perforated bricks, and standard bricks etc.

Model: QT5-15  Block brick making machine
Vibration frequency:3800-4500 times/sub(adjustable)
vated pressure: 25mpa
Molding cycle: 15-25s
pallet size: 1100*560*20(mm)
Power: 31.4KW
Weight: 6.9T
machine size: 9450*3300*2700mm

Production capacity

Hollow block: 5pcs/mould (390*190*190), 7200-11520pcs/day (8hours)
Cellular block: 16pcs/mould (240*115*90), 23000-28800pcs/day (8hours)
solid block:   34pcs/mould( 240*115*51mm) ,  49000-61440pcs/day(8 hours)
Holland Brick : 8pcs/mould( 200*250*60mm), 10500-13000pcs/day(8 hours)

Holland Brick :18pcs/mould( 200*250*60mm), 23900-30000pcs/day(8 hours)

Note: Any other blocks dimension can be designed.

Main Raw Materials

Fly ash, cement, sand, crash stone, additive, constrution garbage etc.

One base brick making production line usually includes one host machine, one batching machine, one mixer, one block stacker, some bamboo pallets and some molds you need.  Cement scale, pigment feeder, srew conveyor and cement silo can be choice.

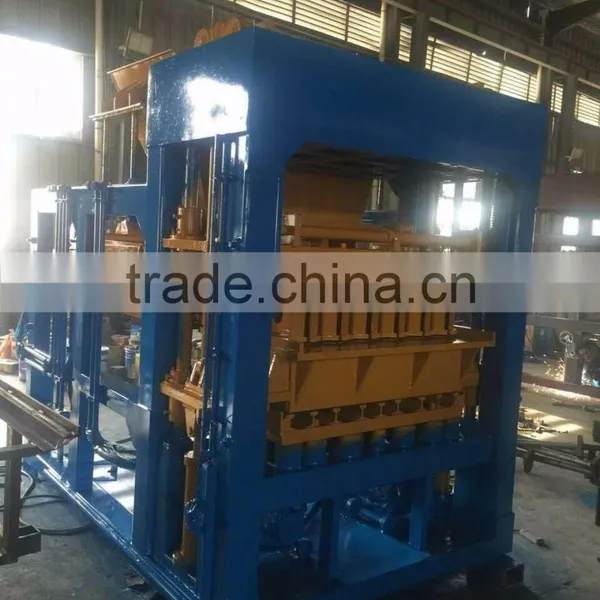

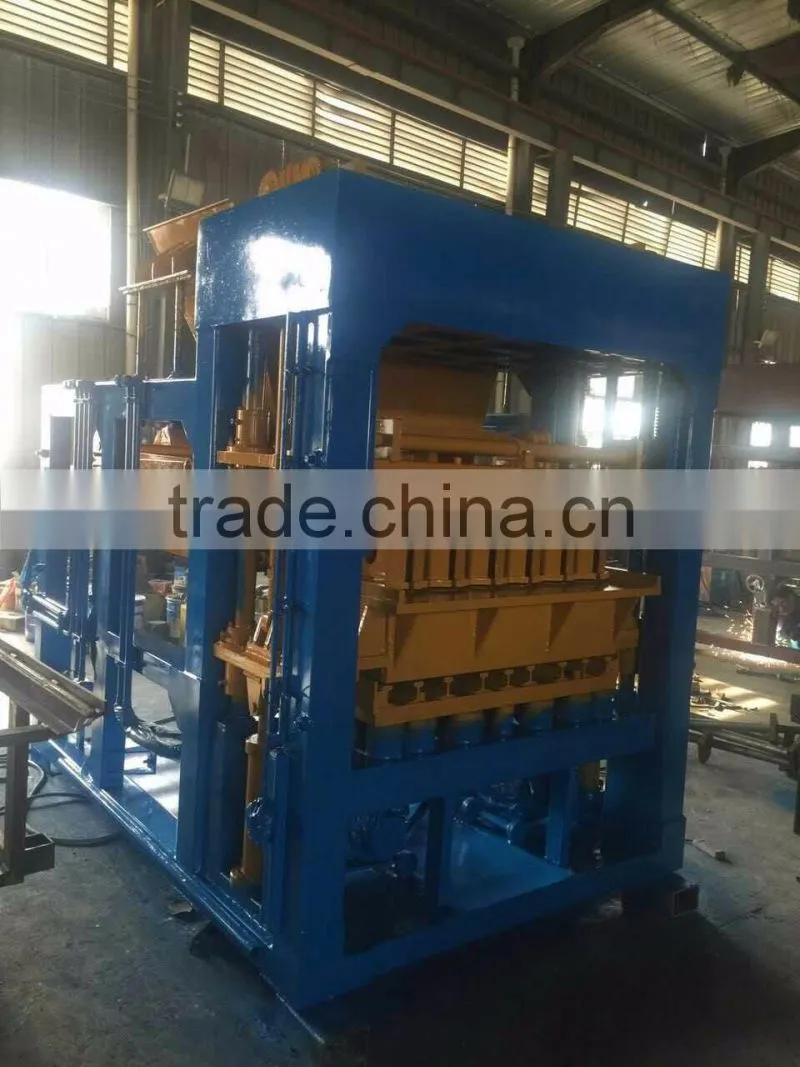

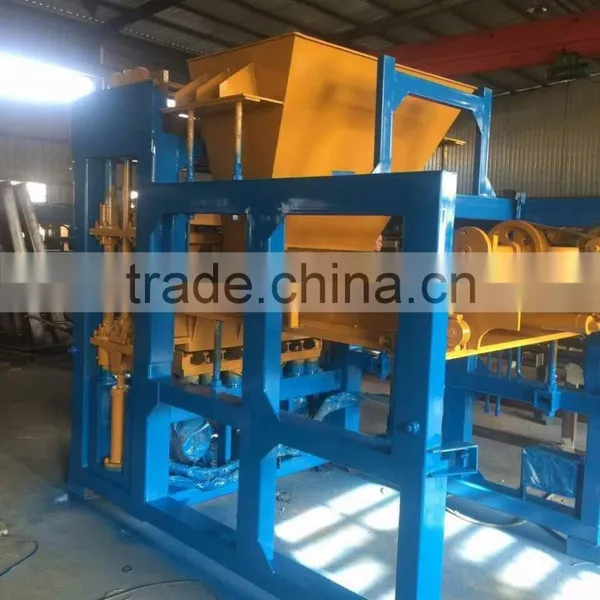

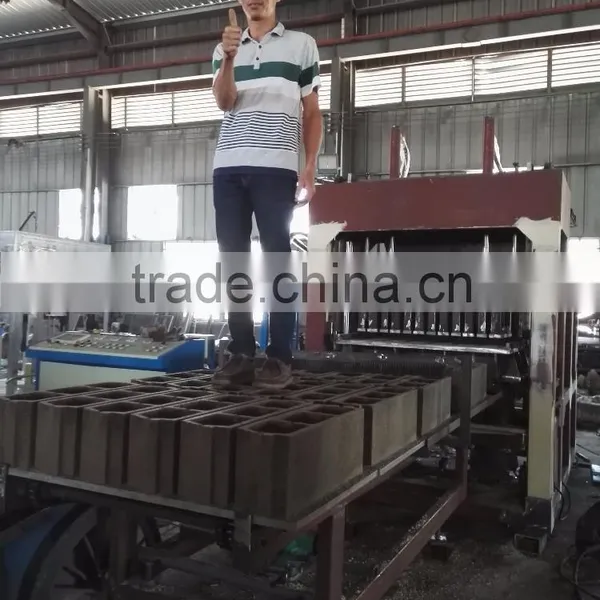

QT5-15 Block brick making machine :

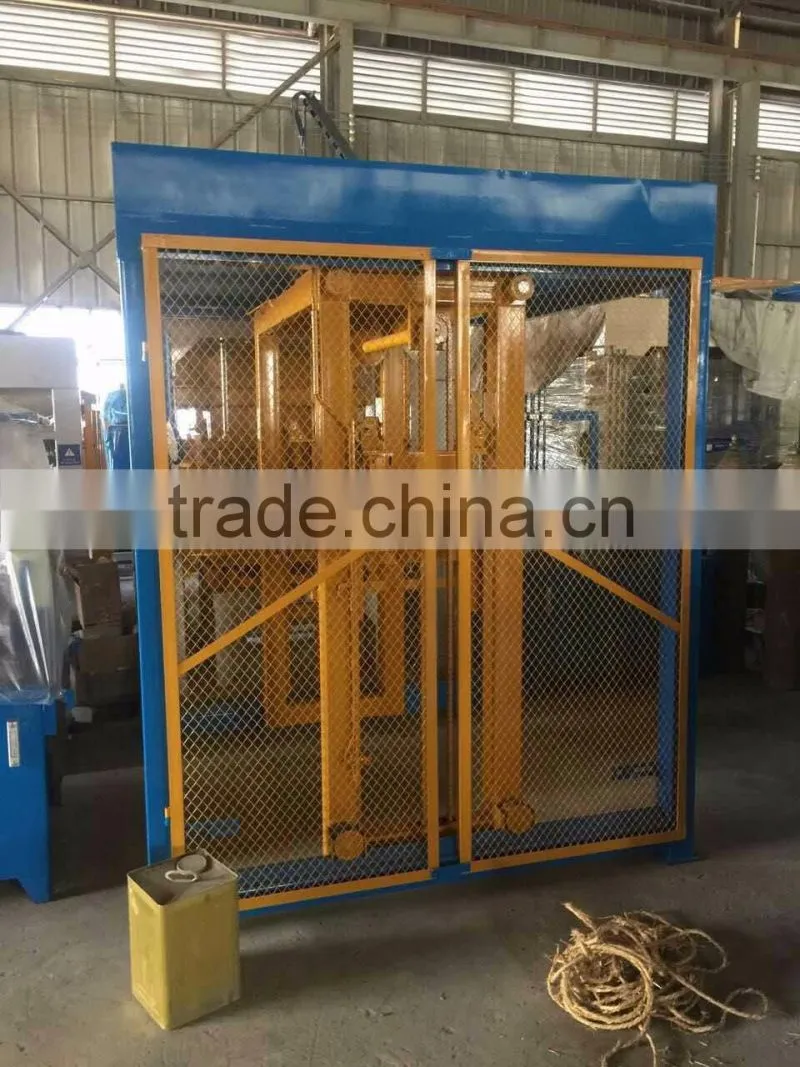

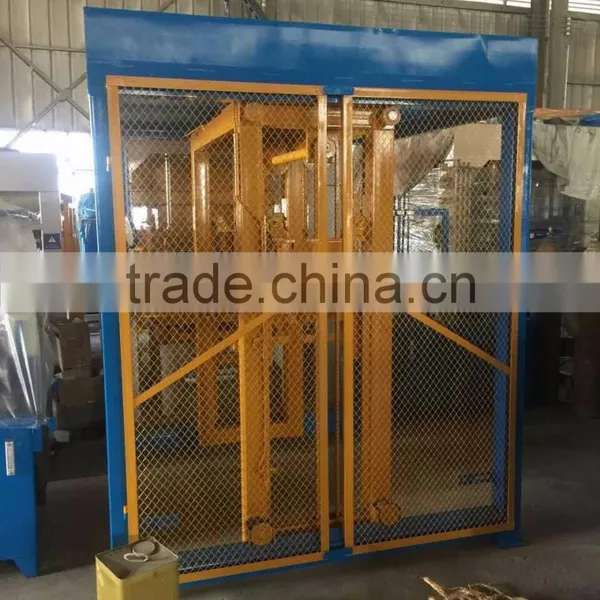

Block stacker:

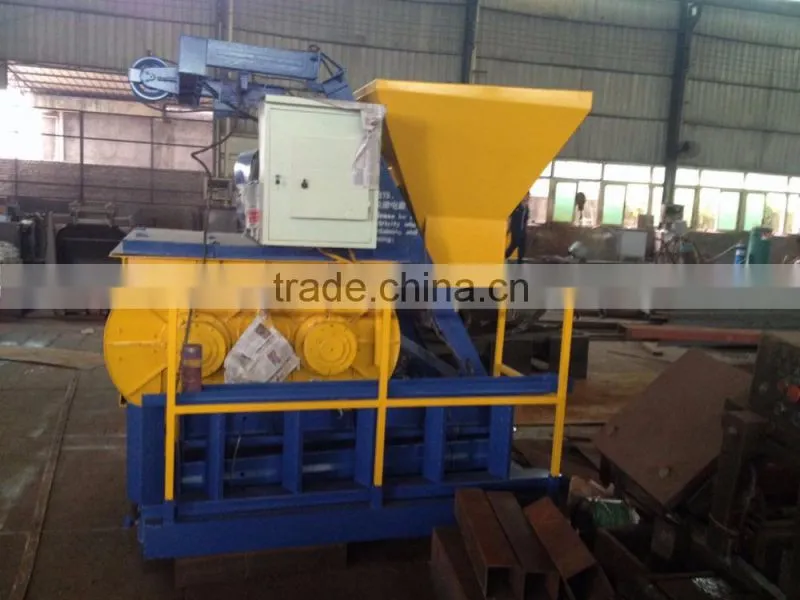

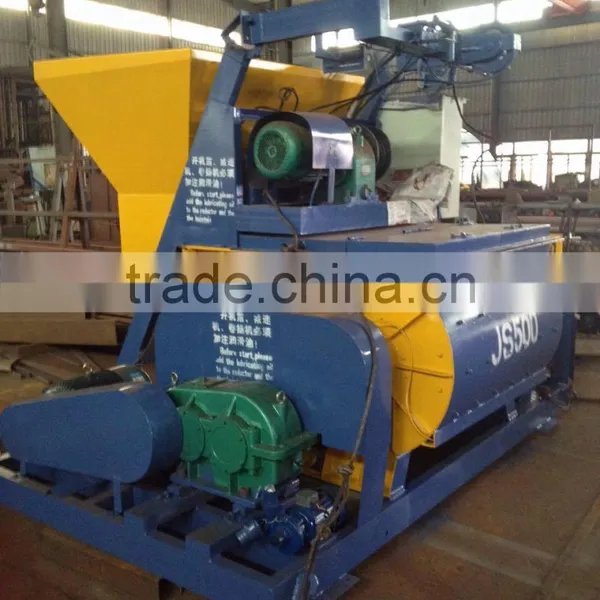

JS500 concrete mixer:

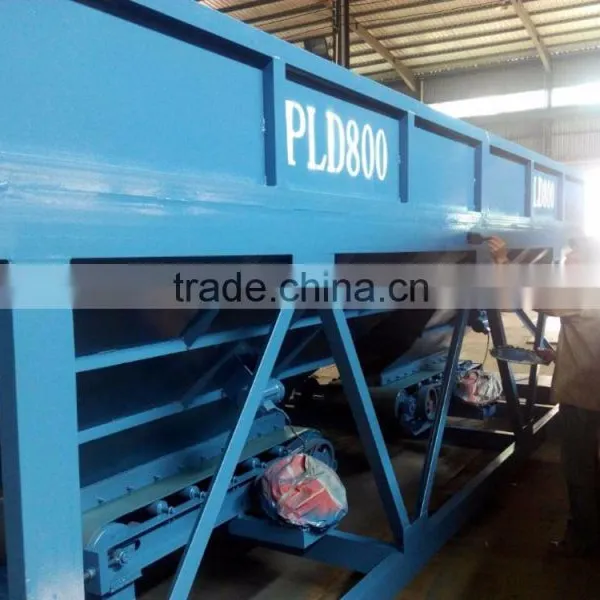

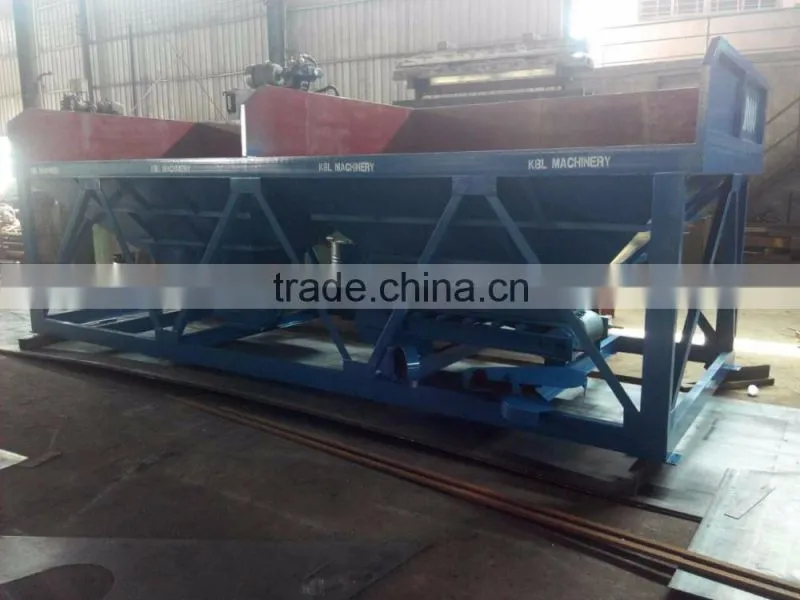

PL800 batching machine:

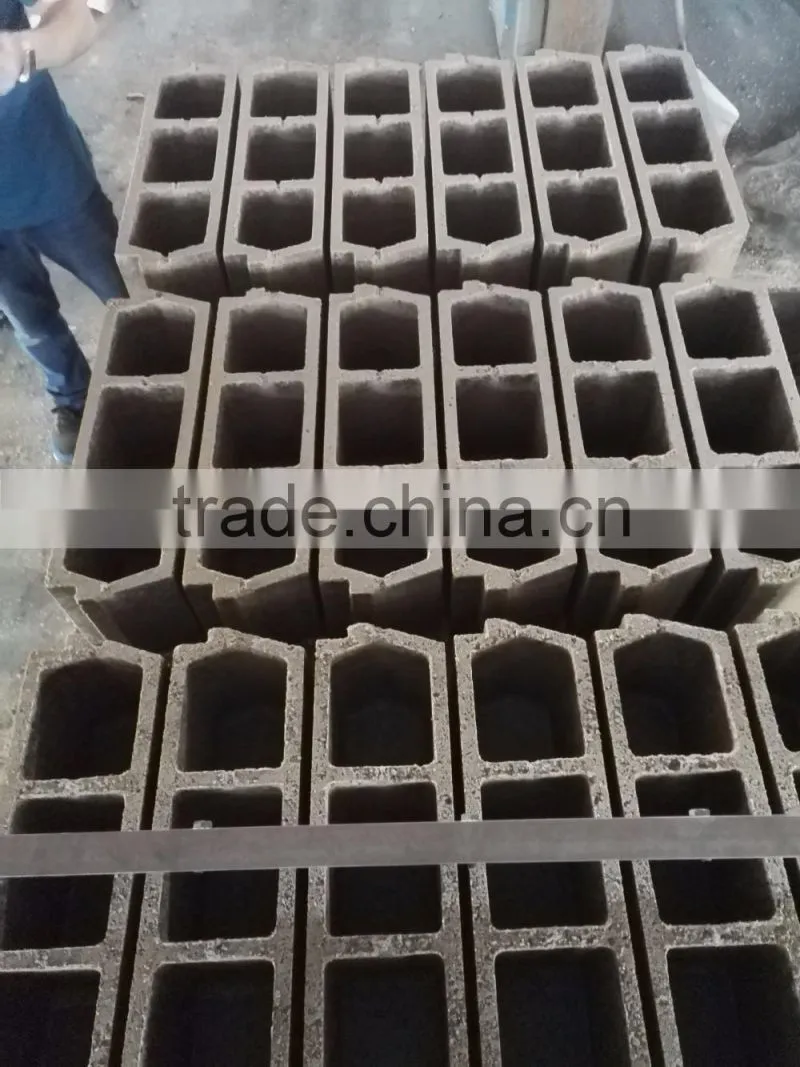

Block samples produced by QT5-15 brick making production line:

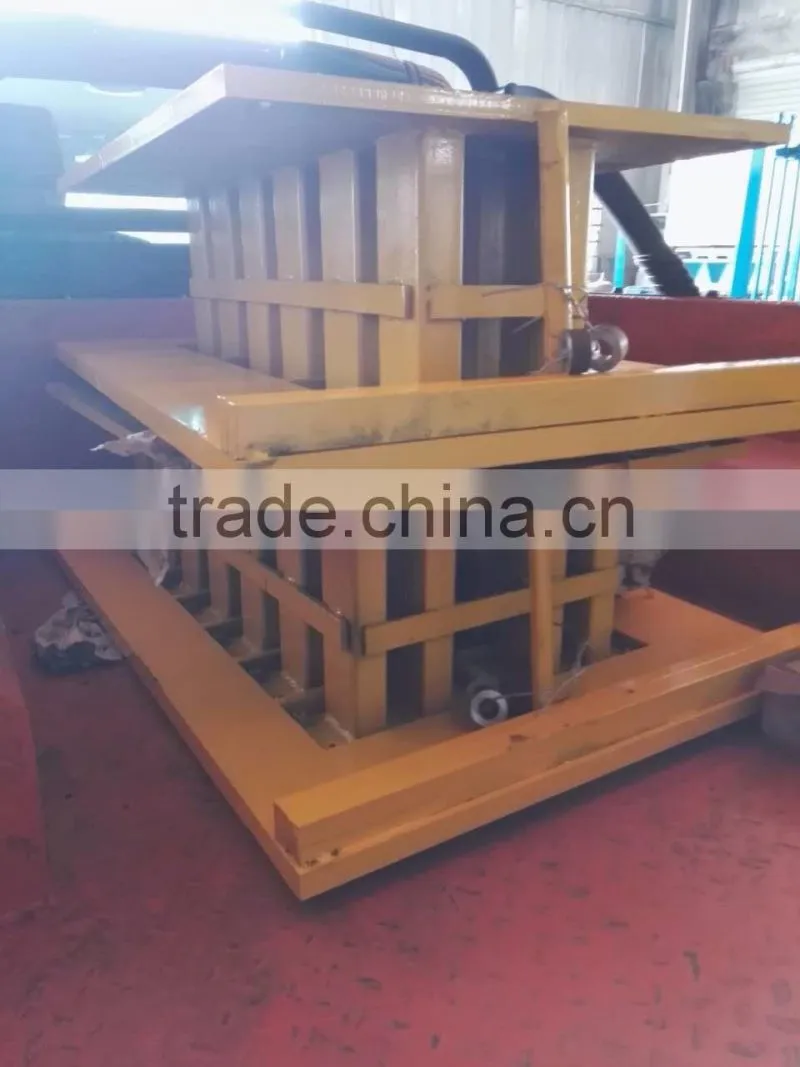

Block molds:

Gurantee Period: One year after installation finished at buyer's factory.

All kinds of moulds can be produced according to customers’ design or drawing.

Installation service: Our company could send one or two of our engineers to buyers' place to direct the installation and give the operation training. The customers should pay for the cost of room and board, the round-trip tickets and USD70/day/person for our engineers .

Quanzhou Kimberley Heavy Industry Machinery Co., Ltd. Is a special manufacture of concrete machines with 20 years experience! Our main products include concrete block machine, concrete pipe machine and concrete batching plant. They have been exporting to over 50 countries and all of them have got CE/ISO certificates!
We are experienced in producing all necessary main production machines, concrete mixer; block mould, batching machine, block stacker, automatic feeding pallet machine, block robot etc at our own plant.
Customized production of all sorts of moulds and machines has been made in line with our customers’ order.
Machines that were manufactured have been produced by us as semi-automatic or PLC programmed full automatic machines.

Sample brick
