Automatic QT10-15 cement brick manufacture machine
- 500 Set / Sets per Month
- Xiamen
- T/T
- China pe200x300 smallest jaw crusher
- Popular compound pendulum jaw crusher price
- 2016 china products stone coated steel roofing tile ,shingle steel roof tile
- 2016 china products lightweight roof tile,blue glazed roof tile
- colored metal roofing prices,sand coated metal roofing tiles
- roofing tiles coated with stones,roofing tiles for houses
Product Details
Condition: | New | Type: | Hollow Block Making Machine | Brick Raw Material: | Concrete |
Processing: | Brick Molding Machine | Method: | Hydraulic Pressure | Automatic: | Yes |
Capacity: | 17000pcs/shift for hollow block 390*190*190mm | Place of Origin: | Fujian, China | Brand Name: | FULI |
Model Number: | QT10-15 brick manufacture machine | Voltage: | 380/50hz/3phz | Power: | 57kw, 57 KW |
Dimension(L*W*H): | 13500*5500*3500mm | Certification: | CE/ISO90001 | Warranty: | one year guarantee after installation |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Porduct description:
Big Five Advantages Of our Fully Automatic Block Making Machines:
1. Use Germany Siemens PLC control system and Siemens Touch Screen, use Schneider and Omron relays and contactors:
A. Siemens PLC, with great adaptability, guarantees the stability and reliability of the machine.
B. Visualization touch screen, with easy operation;
C. High-quality electrical components from Schneider and Omron;
2. Use Frequency Conversional Control Technology, which controls the block making:
A. Frequency Conversion Control: guarantees the precise and parallel movement between tamper head and mould, protects the products from transfiguration; increases the production rate by improving the vibrating efficiency;
B. Controls the instantaneous start and stop of the motors, to protect the motor from over-heating caused by constant working;
C. Power saving: 30%;
3. Use Double high-dynamic Proportional/Directional Valves to automatically adjust the oil flow and pressure
A. Buffer the hydraulic cylinder, to protect the cylinder from damage caused by inertia;
B. Guarantee production stability;
4. 360° Multi-Shaft Rotating and Compulsory Feeding:
A. Speedy and rotating feeding, with uniform mixing, to make sure that the density and intensity of the products are guaranteed
B. This uniform feeding is applicable for different kinds of raw materials and moulds;
5. Use heat treatment on moulds and main parts of the machines:
A. Heavy duty machine structure and wear resistant moulds;
B. The hardness reaches up to HRC 52-58;
C. Greatly improves the using lifetime of the machine by 50%.
Key Parameters of QT10-15 hollow brick machine :
Vibration frequency | 0~ 6000 |
Pallet dimension | 1080*850*30(mm) bamboo pallet |
Molding cycle | 15-25 |
Conversion parameter | 0~60Hz |
Specification of mould box | 1100*85 0(mm) |
Power | 57KW |
Weight | 12.7T |
Installation dimension | 13500×5000×3500(mm) |

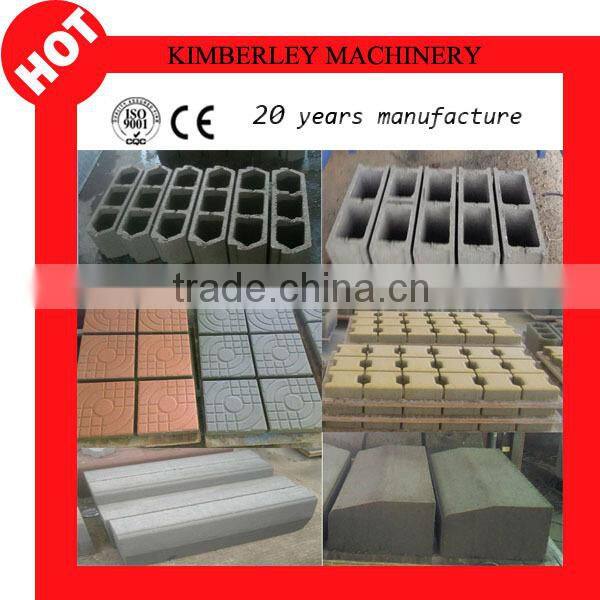

Production capacity of QT10-15 hollow brick machine :
Hollow block | 10pcs/mold (390*190*190), 17000pcs/day (8hours) |
Porous block | 24pcs/mold (240*115*90), 46 000pcs/day (8hours) |
Standard brick | 51pcs/mold (200*100*60), 97000pcs/day (8hours) |
Environmental protection paver | 28pcs/mold (240*115*53), 40000pcs/day (8hours) |
Main Raw Materials:
Fly ash, cement, sand, crash stone, additive, constrution garbage etc.

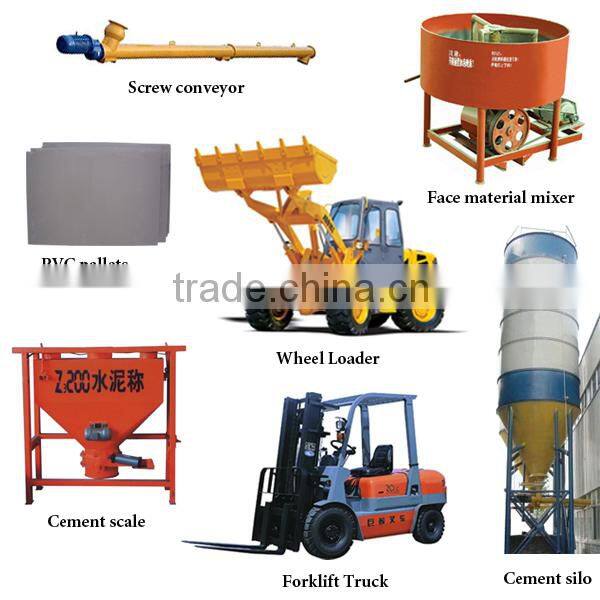

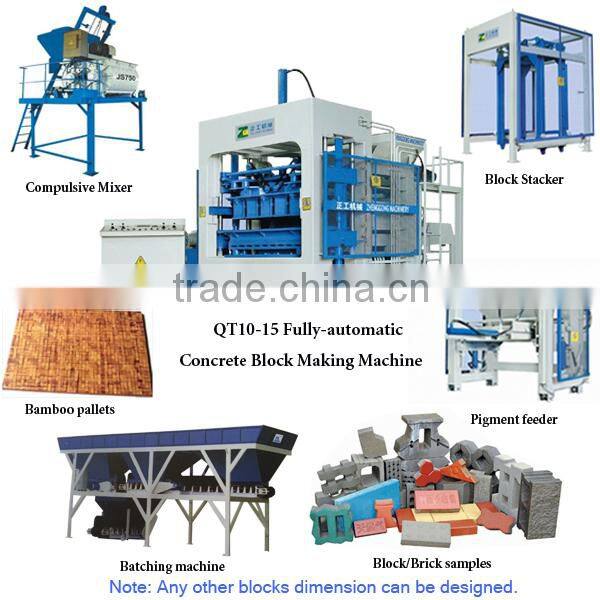

Base brick making prduction line
1. Cement silo:
It is used for loading bulk cement.
If cement in bulk, better chooses the Silo; if cement packed in bags, then
no need silo.
2. Screw conveyor
It conveys the cement from silo to cement scale for weighing.
If the production line doesn’t use silo, then the screw conveyor is no need.
3. Cement scale
It is used for weighing cement automatically.
4. Batching Machine:
It is used for weighing the materials automatically.
It consists of two or three loading tanks, one weighing tank and belt conveyor.
The batching machine could weigh four kinds of materials.
The batching and weighing are automatic and controlled by PLC.
5. Concrete Mixer
All the materials are put into the mixer tank and mixed in it at same time.
It will need one worker to operate the mixer.
The water pump is controlled by time relay. Feeding period is adjustable.
6. Block Making Machine:
Block making machine is the key item of the whole production line. By pressing the mixed materials, it can make block, brick, interlock pavers and curbstone with different moulds.
It is controlled by PLC and Hydraulic station.
7. Hydraulic unit
8. Conveyor belt
The mixed materials down from mixer conveyed to molding machine hopper for making blocks.
9. Pallet feeder
Pallet feeder is used for feeding pallet by people to put the finished green blocks.
10. Blocks conveyor
It will support the fresh/green blocks.
The fresh block/brick come out from mould conveyed to the block conveyor.11. 11.PLC control Unit
SIEMENS PLC & touch screen
12. Mold
By changing different molds each machine can produce different types of bricks that you want.
13. Blocks Stacker
The stacker will stack the pallets with blocks one by one; usually, it can be pilled up 3 to 8 layers automatically according to different types of bricks. It will be easy for forklift to transport them to the store yard.
14. Forklift (pallet car)
The forklift will transport the stacked pallets with blocks to the store yard for curing.

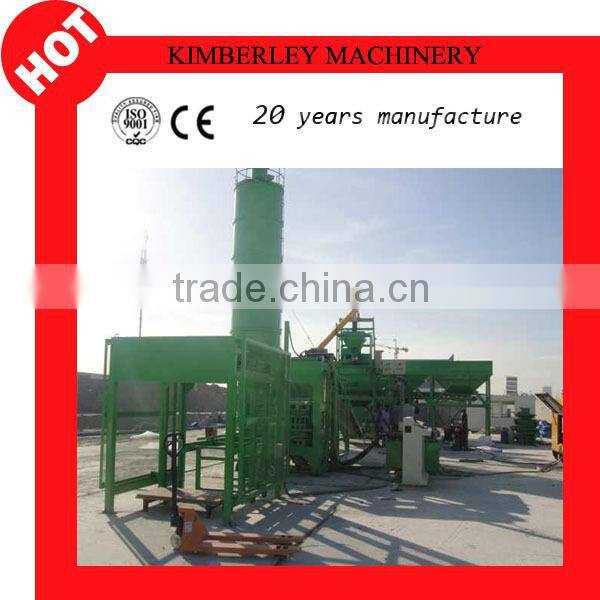

Production line at buyer's place:
Customer visited:
Our service
1) Send the technicians to carry out the installation and debugging of equipment for
the foreign users with compensation.Countries or regions with unstable political
situation or in the throes of wartime are not included in our plan.
2) Train the users to command the equipment and guide them for safe production.
3) Explain the routine maintenance of equipment carefully and remove common faults.
4) We are responsible for all the repairs that caused by our quality problems within one
year’s warranty. (We will provide one set of spare parts/wear & tear parts free of charge
with shipment.)
5) For some countries whose visas are difficult obtained, customers can also send their
technicians to our company to receive free guidance and training.
6) Accept suggestions for improvement put forward by customers an earnest way.
In accordance with changes of the market, provide the products and services to meet
the user’s needs and create value for them.
7) We will make every effort to solve your problems, and your success will add new
glory to us.
All details can be customized according to you special requests if you have, please feel free to contact with us by
Skype: fuliangel0301;
TM: cn1000318320;
Mob/Wechat/What Sapp: +86-13305052785
Ms. Angel Wang
