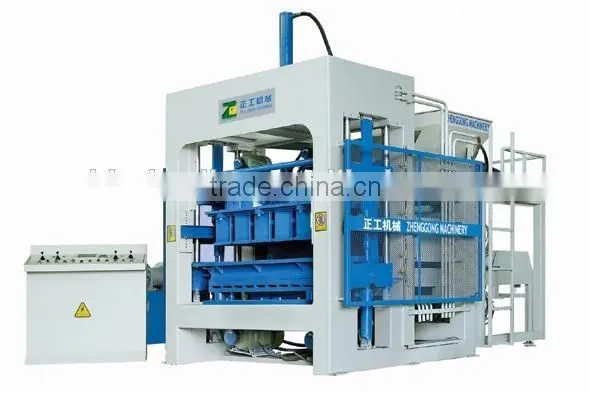

QT8-15 Automatic Hollow Brick Making Machine
| QT8-15 Automatic Hollow Brick Making Machine | ||||
| Technical Specifications : | ||||
| Vibration frequency: 3000~4000rolls/minute | Frequency range:50-60Hz | |||
|
Molding cycle time: 15-25s |
molding box: 830*830mm | |||
| Motor power: 53KW | Gross weight: 9.5T | |||
| Pallet dimension: 850*850mm | Installation sie: 13500×5000×3500mm | |||
| Capacity Production :(L*W*H*mm) | Hollow Block: 8pcs/ mould(390*190*190mm), 14000pcs/ day(8hours) | |||
| Perforated brick: 20pcs/ mould(240*115*90mm), 38000pcs/ day(8hours) | ||||
| Environmental block :24pcs/mould(200*100*60mm), 35000pcs/ day(8hours) | ||||
| Standard Brick:40pcs/ mould(238*115*51mm),76000pcs/day(8hours) | ||||
| Raw material | crush stone, sand, cement, fly ash, additives,etc. | |||

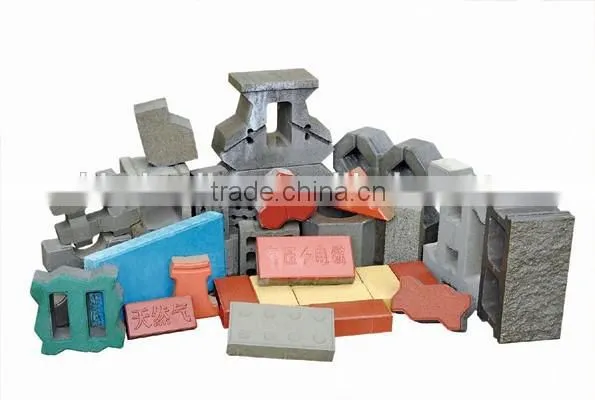

| Products: | Color pavement brick which is colored in several single layers or the whole body, wharf chain brick, kerb stone, grass planting brick, hydraulic brick, hollow brick, perforated brick, burn-free standard brick, etc. | |||
|
Note: 1. Brick of any size can be designed and produced as customers' requirements. 2. Bricks produced can be widely used in the construction and paving of plaza, garden and city, as well as in water conservancy project. |
||||
Characters:
This Brick Makeing machine with PLC intelligent control.Man-machine interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function. So it doesnt need a professional person but only need a simple trainning to the operator.
Product scope:

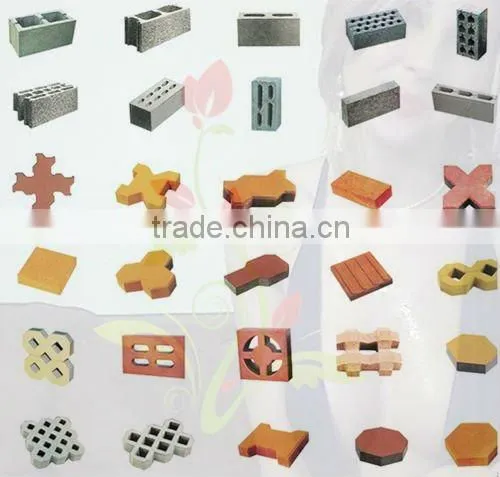

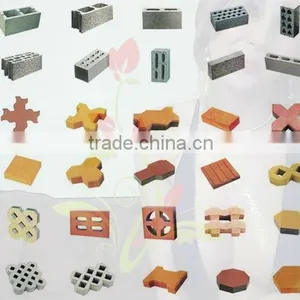

It produces various bricks/blocks including color-face bricks (layered material feeding), through-body tiles, dock linkage blocks, road curb bricks,sod bricks, hydraulic blockshollow blocks, perforated bricks, and standard bricks etc.
_________________________________
Optional configuration:

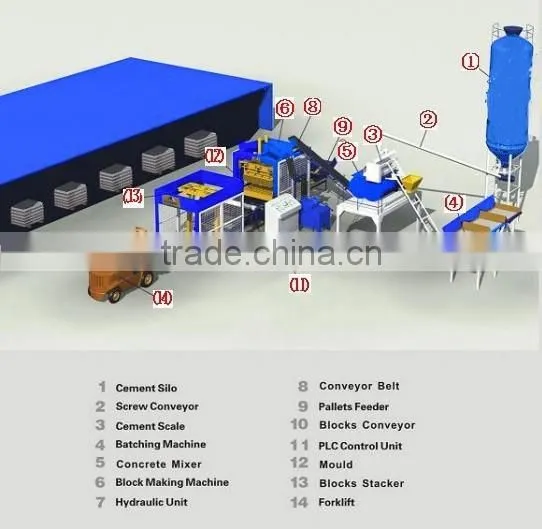

1. Lift-slab Elevating Conveyor (block stacking machine):
According to the different type of bricks, the finished products will be moved from the discharge transmitter and pilled up automatically 3 to 8 layers by the elevating conveyor, and carried to the maintaining place by the fork lifter truck. It could reduce labor and ground.
2. Colour face material feeder (layered material feeding)
Equipped with color face material feeding device, it could make various color face bricks , through-body Environmental protection bricks, road curb rocks, hydraulic blocks and sod bricks and so on.
Pre-sales Service
1. We can also offer technical support and technical consultation services. We can offer suggestions to clients who newly come into the industry.
2. New customers can pay a visit to our production factory, and can also pay a visit to our old clients who are using our machines. We can send technicians to introduce the production process and solve any of your problems.
In-sales Service
1. We implement ISO9001 quality management system standard during our block making machine, concrete pipe making machine and concrete mixing plant production. We can also design and manufacture our products according to customers' demands.
2.We offer timely feedback to customers so as to solve the equipment problem as soon as possible.
3. We can also help clients in their production quality control, raw material purchasing and end product marketing. We can also help clients who buy our block making machine, brick production line and concrete mixing plant, etc. In foundation construction, electric circuit layout and more.
4. Offer free equipment testing and commissioning services. Operation training and safety production guidance are also provided.
5. We offer guidance on equipment maintenance and simple failure treatment solutions.
After-sales Service
1. All our block making machine, brick production line, concrete mixing plant and concrete pipe making machine as well as hydraulic brick machine are provided with one year warranty except wearing parts and lifetime equipment maintenance guidance service.
2. We help clients to solve any of their problems regarding to our machines, via different methods.
3. Any of our clients can send their operators or technicians to our company to receive free technical training.
Thanks for your browsing !
