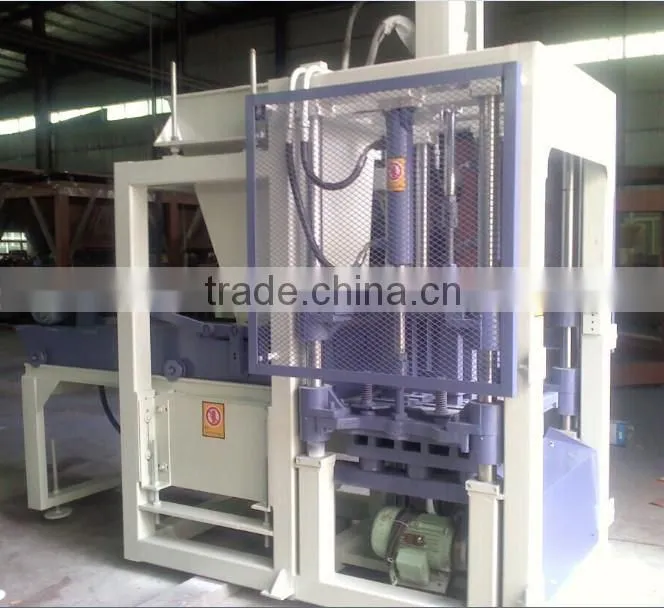

QT3-20 host machine showed:
Technical Details :
| QT3-20 Semi-automatic Paving Brick Machine |
||||
| Technical Specifications : | ||||
| Vibration frequency: 3000~4000rolls/minute | Frequency range:50-60Hz | |||
|
Molding cycle time: 15-30s |
molding box: 620*540mm | |||
| Motor power: 14.7KW | Gross weight: 3.5T | |||
| Pallet dimension: 680*535*20mm | Installation size: 10000×4500×2600mm | |||
| Capacity Production :(L*W*H*mm) | Hollow Block: 3pcs/ mould(390*190*190mm), 4200pcs/ day(8hours) | |||
| Perforated brick: 10pcs/ mould(240*115*90mm), 14000pcs/ day(8hours) | ||||
| Environmental block :12pcs/mould(200*100*60mm), 14000pcs/ day(8hours) | ||||
| Standard Brick:20pcs/ mould(238*115*51mm),28000pcs/day(8hours) | ||||
| Raw material | crush stone, sand, cement, fly ash, additives,etc. | |||
| Products: | Color pavement brick which is colored in several single layers or the whole body, wharf chain brick, kerb stone, grass planting brick, hydraulic brick, hollow brick, perforated brick, burn-free standard brick, etc. | |||
|
Note: 1. Brick of any size can be designed and produced as customers' requirements. 2. Bricks produced can be widely used in the construction and paving of plaza, garden and city, as well as in water conservancy project. |
||||

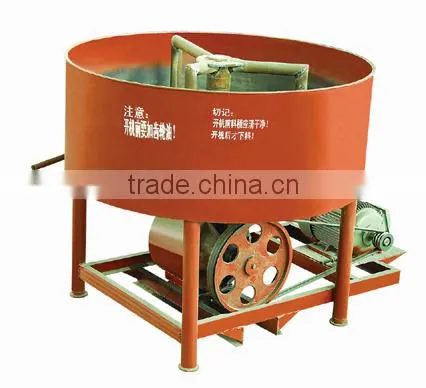

JW350 mixer without hopper:
JW350 mixer with hopper:

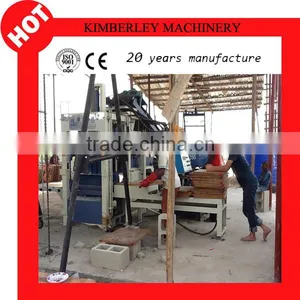

QT3-20 base brick making production line at buyer's place:
Some types of concrete blocks produced by our cement block machine:
Project case:
Pre-sales Service:
1. We can also offer technical support and technical consultation services.
We can offer suggestions to clients who newly come into the industry.
2. New customers can pay a visit to our production factory, and can also pay a
visit to our old clients who are using our machines. We can send technicians to
introduce the production process and solve any of your problems.
In-sales Service:
1. We implement ISO9001 quality management system standard during our block
making machine, concrete pipe making machine and concrete mixing plant
production. We can also design and manufacture our products according to
customers' demands.
2.We offer timely feedback to customers so as to solve the equipment problem as
soon as possible.
3. We can also help clients in their production quality control, raw material
purchasing and end product marketing. We can also help clients who buy our block
making machine, brick production line and concrete mixing plant, etc. In
foundation construction, electric circuit layout and more.
4. Offer free equipment testing and commissioning services. Operation training
and safety production guidance are also provided.
5. We offer guidance on equipment maintenance and simple failure treatment
solutions.
After-sales Service:
1. All our block making machine, brick production line, concrete mixing plant
and concrete pipe making machine as well as hydraulic brick machine are provided
with one year warranty except wearing parts and lifetime equipment maintenance
guidance service.
2.We help clients to solve any of their problems regarding to our machines, via
different methods.
3. Any of our clients can send their operators or technicians to our company to
receive free technical training.
