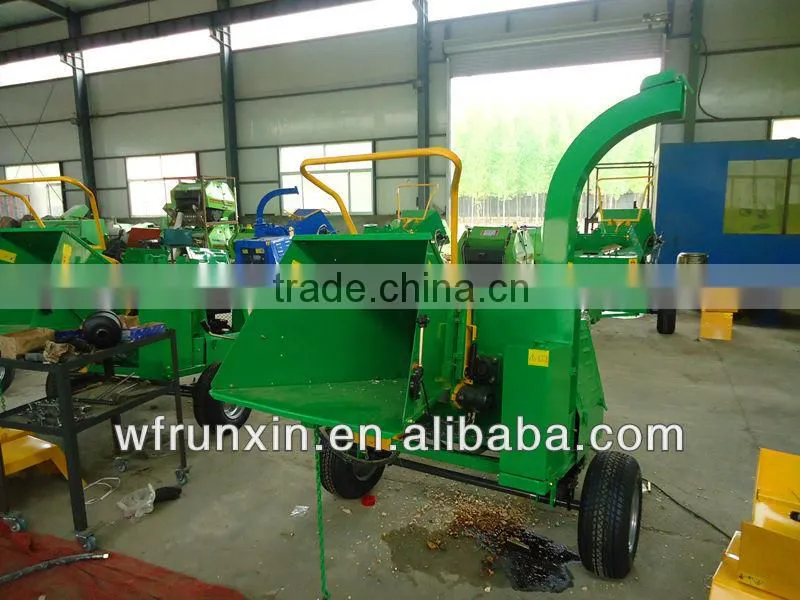

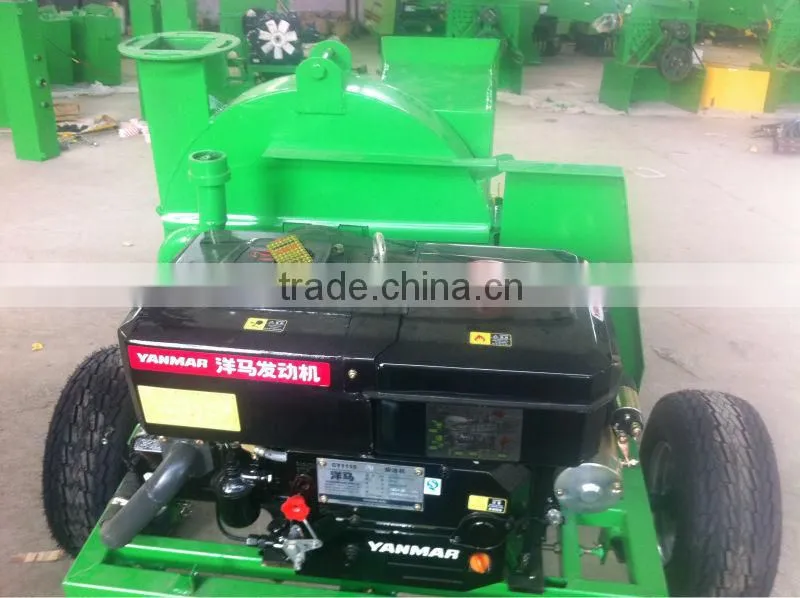

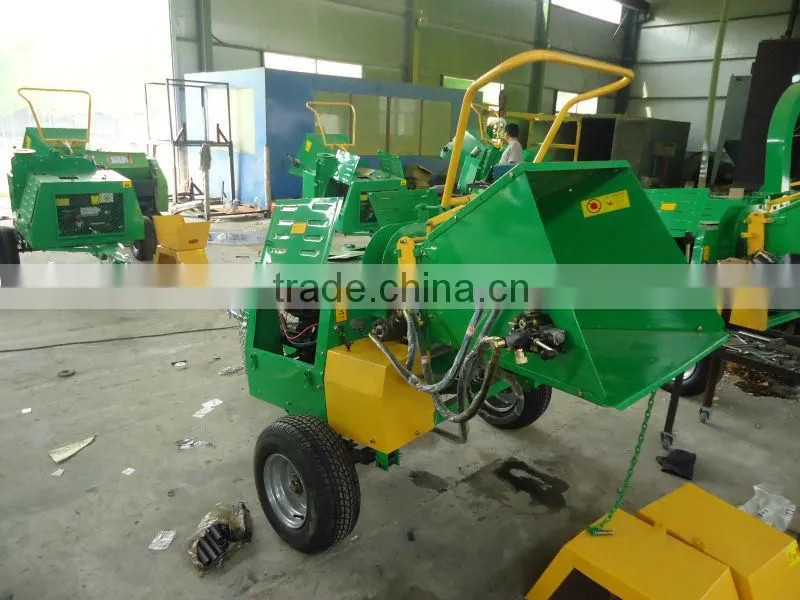

Help CenterCE Approved RXDWC-22 8 Inch Wood Chipper
Related Products
-
PTO TYPE Hydraulic Wood Chipper WC-6 With CENegotiableMOQ: 1 Set -
DWC-22 Mobile Disc Wood ChipperUS$ 1,800 - 2,260MOQ: 1 Set
-
DWC-22 Firewood Processor/wood Shredder/wood Crusher/wood Chipping MachineUS$ 2,400 - 2,800MOQ: 5 Sets
-
DWC-22 CE Certificated Wood Chipper/wood Processor/diesel Wood Chipper Supplier's ChoiceUS$ 2,400 - 2,800MOQ: 5 Sets
-
40hp Wood Chipper WC-40 CEUS$ 3,300 - 3,500MOQ: 5 Units
Specifications
1) Hydraulic feeding2) Trailer Mounted
3) 3 /4 Blades, 8" wood chipper
4) CE certificate
5) 22HP
Advantage: We are factory & manufacturer
1.CE certificate.
2.Yanmar diesel engine.
3.hydraulic feeding.
4.8″ Cutting diameter,
5.Equipped with direction signal light,
6.Easy discharge hood,
7.2″Ball pin hitch and security chain
8.Leaf spring on the axle.
9.Discharge hood rotates in 360 degrees.
Related products: PTO/18hp/22hp/40hp wood chipper
Model |
DWC-22 |
|
Engine |
Item |
Yanmar CY1115 diesel engine |
|
type |
Single cylinder, horizontal, four-stroke |
|
Combustion chamber type |
Direct Injection |
|
Cylinder diameter |
115mm |
|
Piston stroke |
115mm |
|
Piston displacement |
1.194L |
|
Piston average speed |
8.43m/s |
|
Compression ratio |
17.3 |
|
Rated power |
16.2KW/2200rpm |
|
Effective pressure |
740KPa |
|
Fuel consumption rate |
<245g/KW.h |
|
Engine oil consumption |
<1.5g/KW.h |
|
Cooled style |
Water-cooled (evaporation) |
|
Start |
Electric start |
|
weight |
190kgs |
|
dimensions |
918x451x689mm |
|
Fuel |
Diesel 0# in summer, -10# or -20# in winter |
Chipper capacity |
150mm (Max. To 200mm) |
|
Flywheel diameter |
640mm |
|
flywheel weight |
85kgs |
|
Blades Numbers |
1 stationary blade, 2 rotary blades |
|
Feed Hopper inner Opening |
200 x 220mm |
|
Discharge Hood Height |
2000mm |
|
Rated RPM |
1080 |
|
Weight |
650kg |
|
Working efficiency |
7-11 cbm/h |
|
Please email me to get more pictures, videos and quotation.
