Specifications
Forestry machinery (disc wood chipper) with CE certificate8" cutting capacity
small chip size: 1~3cm
hydraulic feed in
Features:
- Forestry Machinery -- Firewood Cutting Machine with CE certificate
- For chipping wood into slice
- 18hp single cylinder Yanmar brand,diesel engine,electric starting,
- 20-10.00-8PR tyre.Axle with spring,
- turning signal light,
- trailer ball coupler with safety chain,
- 2 inch feed roller,
- Discharge hopper can rotate in 360 degrees
- V-belt transmission,
Runshine diesel wood chipper DWC-22
Features:
1.CE certificate.
2.Yanmar diesel engine.
3.Hydraulic feeding.
4. 8″ Cutting diameter,
5.Easy discharge hood,
6. ball hitch and security chain
7. Discharge chute rotates 360 degrees.
8. self feeding design
9. feeding speed adjustable
Technical Data:
Model |
DWC-22 |
|
Engine |
Item |
CY1115 diesel engine |
type |
Single cylinder, horizontal, four-stroke |
|
Combustion chamber type |
Direct Injection |
|
Cylinder diameter |
115mm |
|
Piston stroke |
115mm |
|
Piston displacement |
1.194L |
|
Piston average speed |
8.43m/s |
|
Compression ratio |
17.3 |
|
Rated power |
16.2KW/2200rpm |
|
Effective pressure |
740KPa |
|
Fuel consumption rate |
<245g/KW.h |
|
Engine oil consumption |
<1.5g/KW.h |
|
Cooled style |
Water-cooled (evaporation) |
|
Start |
Electric start |
|
weight |
190kgs |
|
dimensions |
918x451x689mm |
|
Fuel |
Diesel 0# in summer, -10# or -20# in winter |
|
Chipper capacity |
150mm (Max. To 200mm) |
|
Flywheel diameter |
640mm |
|
flywheel weight |
85kgs |
|
Blades Numbers |
1 stationary blade, 2 rotary blades |
|
Feed Hopper inner Opening |
200 x 220mm |
|
Discharge Hood Height |
2000mm |
|
Rated RPM |
1080 |
|
Weight |
650kg |
|
Working efficiency |
7-11 cbm/h |
|
orders from dealers
we have dealer in European countries, Australia, South America and Japan.

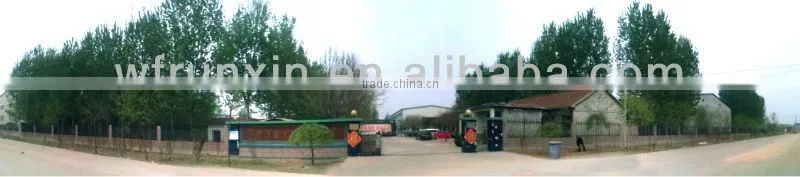

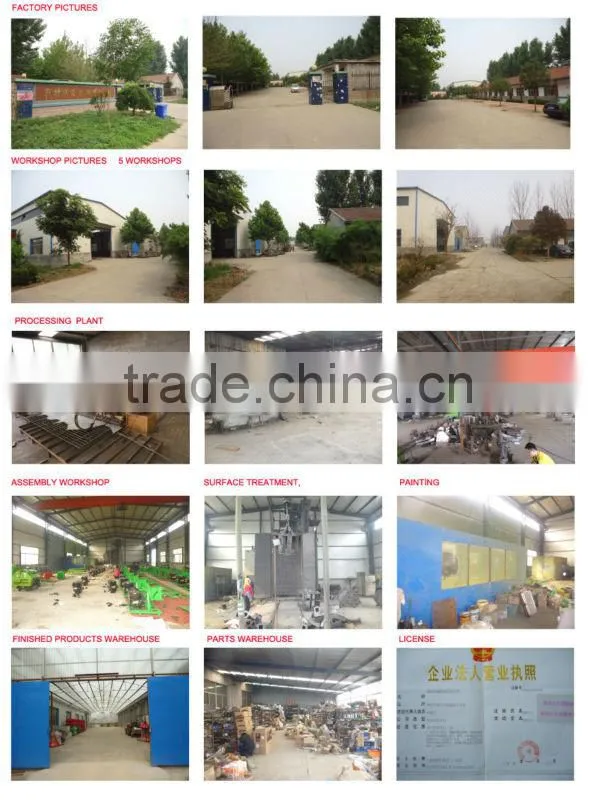

factory & workshop
