led tunnel lamp,tunnel pendant light,suspended tunnel lamp
Specifications:
led tunnel lamp
1) unnel pendant light
2)Inventronic led driver
3)adjustable bracket(good shape)
4)5 years warranty
5) suspended tunnel lamp

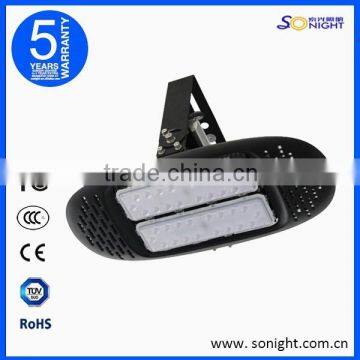

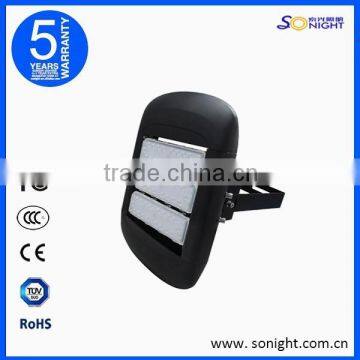

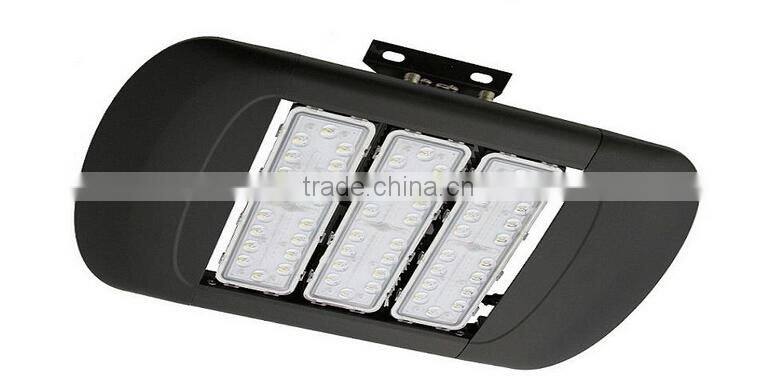

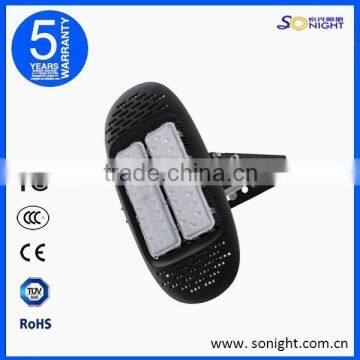

Detailed pictures showing on led tunnel light:
Technical parameters for 40w-360w led tunnel light:
| SNS1A | |||||||||
| Specifications | SNS1A-2 | SNS1A-3 | SNS1A-4 | ||||||
| WATT | 80W | 100W | 120W | 120W | 150W | 180w | 160w | 200w | 240w |
| product size | 430*340*170 | 510*340*170 | 590*340*170 | ||||||
| Packaging Dimension | 520*430*230 | ||||||||
| N.W(kg) | 6.3 | 7.3 | 8.3 | ||||||
| G.W(kg) | 7.3 | 8.3 | 9.3 | ||||||
| LED Brand | LED Module | ||||||||
| Input Voltage | AC90V-305V | ||||||||
| Power Efficiency | 91% | ||||||||
| Power Factor | 0.95 | ||||||||
| Junction Temperature | <80℃ | ||||||||
| CRI | Ra 70±5 | ||||||||
| Working Environment | -40℃ to+50℃ | ||||||||
| Life Span | >5000000h | ||||||||
| Surge Protection | 10KV | ||||||||
| CCT | 3000K,4000K,5000K,6000K | ||||||||
| Material | Aluminium Alloy | ||||||||
| IP Rating | IP68 | ||||||||
LED tunnel light
SN-S1A
Product Features for high quality led tunnel light:
- Modular plugable technology,easy tool onsite maintenance;
- Honeycomb and whole structure cooling technology,high efficient heat dissipation;
- Non-wire eutectic soldering;
- Double-coupling IP68 protection,highest waterproof level;
- Single unit's damage won't affect other unite's current.
- Intelligent constant current driving technolgy ,long life span;
- Ergonomic light distribution to achieve uniform illuminating effect;
- Free mogular serialization and full power range solutions.
SN-S1A
Lighting Distribution Curve of led tunnel lights
Application: large venues,warehouse,workshop,stadium,shopping mall,supermarket,exhibition hall,logistic park,corridor,ect.
SN-S1A various led modules for led tunnel light
Installation for highest protection led module led tunnel light:
Foreign Application
Factory and R&D room showing:
Company Advantages:
1.We are Top 100 LED Manufacturer in China and have produced the LEDs (or LED Package) and inductions for over 8 years.
2. We are full experience of support our exclusive agents in Germany, USA, PK, Romania, etc with good products and services.
3. OEM, ODM available with more than 50 peoples in R&D team, 30,000 squar meters in total and TUV authorized factory.
4. We supply the panel lights, flood lights, tubes, spotlights, high bay, street lights, tunnel lights, explosion-proof lights,tri-proof lights, bulbs, etc
SN certificate
Professional supplier for high quality COB LED flood lights :
1. Phillips LED chip for high luminance, LED modules produced by SN.
2. Constant Current Power supply EMC approved for long lifespan with 50000hrs.
3. Earth wire connection for safety assurance.
4. H05 VDE Electric wire to assure the high quality of the whole lights and safety to human activity.
5. Tested IP66, 100% Real Rain test for the flood lights.
6. Power ranges from 10W to 50,big power could be available according to your requirments.
7. RGB Series, PIR motion sensor Series, Low voltage Seires available for your personal choice.
8. 5 years warranty for our customers.
OEM/ODM is available for you. Welcome to consult us!
