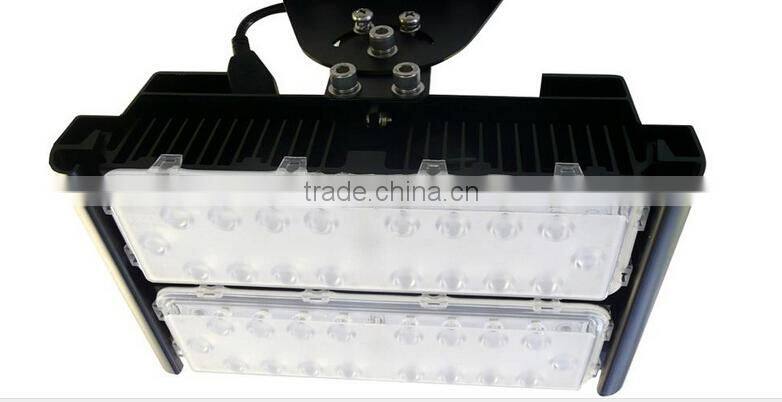

Help CenterFive Years Warranty 180w Waterproof LED Tunnel Light, IP68 Tunnel Light
Related Products
-
High Lumen Led Tunnel Light, 40W 50W 60W 80w 100W 120w Led Tunnel Light, 5 Year Warranty Led Tunnel LightUS$ 80 - 250MOQ: 1 Piece -
80w 100w 120w Outdoor Lighting Led Tunnel LightUS$ 80 - 250MOQ: 1 Piece
-
2015 Led Outdoor Lighting Tunnel LightUS$ 80 - 250MOQ: 1 Piece
-
High Quality 2015 New Product 100w Led Greenhouses Tunnels Used LightUS$ 80 - 250MOQ: 1 Piece
-
Led Tunnel Light 80w 100W 120w Led Tunnel Light With 5 Year Warranty Led Tunnel LightUS$ 80 - 250MOQ: 1 Piece
5years warranty
| SNS2A | |||||||||
| Specifications | SNS2A-1 | SNS2A-2 | SNS2A-3 | ||||||
| WATT | 40W | 50W | 60W | 80W | 100W | 120w | 120w | 150w | 180w |
| product size | 150*290*230 | 235*290*230 | 315*290*230 | ||||||
| Packaging Dimension | 325*315*245 | ||||||||
| N.W(kg) | 2.8 | 3.8 | 4.8 | ||||||
| G.W(kg) | 3.6 | 4.6 | 5.6 | ||||||
| LED Brand | LED Module | ||||||||
| Input Voltage | AC90V-305V | ||||||||
| Power Efficiency | 91% | ||||||||
| Power Factor | 0.95 | ||||||||
| Junction Temperature | <80℃ | ||||||||
| CRI | Ra 70±5 | ||||||||
| Working Environment | -40℃ to+50℃ | ||||||||
| Life Span | >5000000h | ||||||||
| Surge Protection | 10KV | ||||||||
| CCT | 3000K,4000K,5000K,6000K | ||||||||
| Material | Aluminium Alloy | ||||||||
| IP Rating | IP68 | ||||||||
SN-S2A
Product Features:
- PhilipsLumileds LEDs, flip chip technology, single unit’s damage won't affect others' normal work;
- Honeycomb briquette effect heat dissipation principle, best thermal management system;
- Designed to last at least 50,000 hours at L70;
- Multiple lighting distributions available;
- Wide power range: 30W~240W;
- Standard color temperatures: 3000K, 4000K, 5000K, 5700K;
- Minimum 70 CRI;
- IP68 modules: highest waterproof level, hot-pluggable, easy for installation and replacemet
- Aluminum housing;

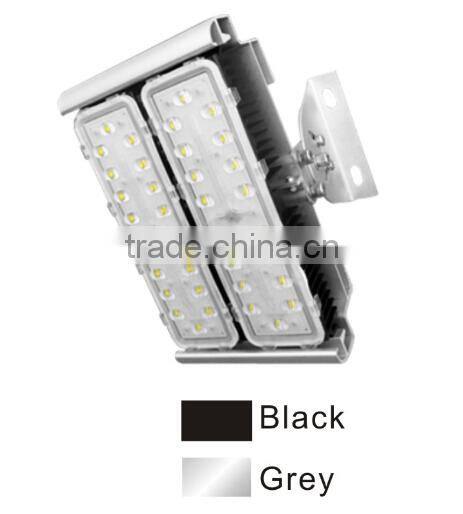

- Multiple housing colors: black, silvery, grey;
- Easy tool onsite maintenance and repair;
- 5-year limited warranty.

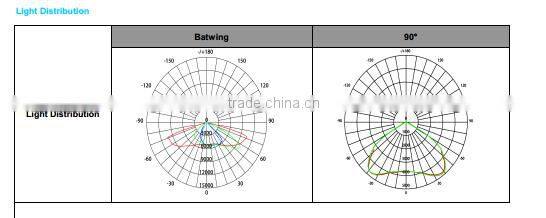

Lighting Distribution Curve
Why Choose SN?
Honeycomb Briquette effect
It simulates and adopts the burning principle of honeycomb briquette; it is easy to transform the original block of radiator to various modules, as well as to enable air to convect and fully pass through the gaps between modules by utilizing the honeycomb effect, thus to remove the heat rapidly, and reduce temperature by around 20 ℃.
High-efficacy LED Light source
It adopts Philips lumileds LUXEON T LED source with super efficacy and light output from a compat source. Optimized for efficacy driven applications with typical Vf: 2.7V and low thermal resistance: 3K/W. Specified, targeted and tested hot, at real world operating temperatures, Tj=85℃ to ensure in- application performance
Heat dissipation of the whole structure
It is available to make clever use of module bracket that only play a supporting role, and to transform it to a “thermal bracket” that is capable of conducting the module’s heat to the light shell as a structural part, thus to promote the cooling effect of radiator of cooling module, the design aims to fully utilize the surface area of structural parts to transfer heat to air.
Free Serialization
It is available to freely equip with different numbers of modules to achieve different powers as required.
Double-coupling IP68 protection
It adopts the screw-free structure to avoid the penetration of water vapor through the screw hole;
its double silicon-rubber rings insulate LEDs with
the outside environment completely, thus to eliminate any erosion to chips and PCB boards
from outside.
Easy-tool maintenance
It uses special structural design to achieve the manual disassembly and installation of lighting components, in consideration that the high-power
lights are generally installed in higher operating environment, the operators require as few tools as possible for their convenience and security
Modules
About SN
Research & Development
certificate
Sonight Lighting
Chongqing Sonight Lighting Co.,Ltd is an established lighting company evolving from over 18 years of experience in energy efficient lighting products. Sonight Lighting offers a complete line of project-oriented products to serve these important lighting markets: Including Drivers,Tubes,Grille Light,Linear tracking light,Induction light and All types of LED products.
We are specialized in technology support, product development,marketing, sales and power saving solution for induction lighting and LED lighting products. We represent qualified manufacturers internationally and bring their quality products to the global market efficiently and effectively.
Through constant efforts for searching and trying, Sonight has obtained good reputation in serving and quality from our customers.Also our products are tested strictly by authoritative organization and have passed CE,TUV,CCC,FCC,PSE.
Our mission is to make quality, energy-efficient and eco-friendly products much more affordable to the customers through our cost-effective marketing and sales solutions as well as to help businesses save their energy costs.
OEM/ODM is available for you. Welcome to consult us!
Professional team is responsible for the whole sales process.
