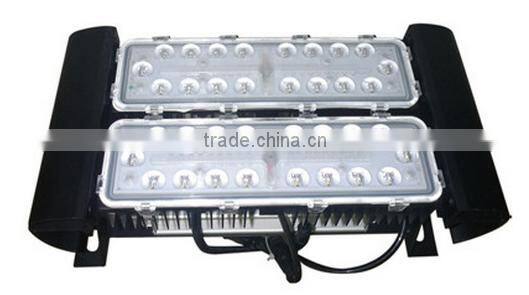

80w 100w 120w Outdoor lighting led tunnel light
Tunnel Light S1B Series
Chongqing Sonight Lighting Co.,Ltd is an established lighting company evolving
from over 18 years of experience in energy efficient lighting products.
Sonight Lighting offers a complete line of project-oriented products to serve these
important lighting markets: Including Drivers,Tubes,Grille Light,Linear tracking light,
Induction light and All types of LED products.
Main Description - led tunnel lights manufacturers
The lamp contains 1 (or 2) constant-current driver(s) and LED light sources;
it works under the technical conditions as marked on the driver(s).
Both the driver and light source are of modular design,
which makes it convenient for installation and maintenance.
Technical Parameters - Tunnel lights manufacturers
| S1B Series | |||||||
| Module Quantity | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| Input Voltage | 100-277V AC 50/60 Hz | ||||||
| Power Efficiency | ≥91% | ||||||
| Poweer Factor | 0.95 | ||||||
| Working Environment | -40℃~+50℃,10%-90%RH | ||||||
| Dimensions (mm) | 350*340*229 | 430*340*229 | 510*340*229 | 590*340*229 | 670*340*229 | 750*340*229 | 830*340*229 |
| Net Weight (kg) | 4.5 | 6.1 | 7.2 | 8.1 | 10 | 11.4 | 12.6 |
| IP Rating | LED MODULE IP68, POWER SUPPLY IP67 | ||||||
Electrical and Photometric Specification
| SNS1B | |||||||||
| Specifications | SNS1B-2 | SNS1B-3 | SNS1B-4 | ||||||
| WATT | 80W | 100W | 120W | 120W | 150W | 180w | 160w | 200w | 240w |
| product size | 170*340*230 | 250*340*230 | 330*340*230 | ||||||
| N.W(kg) | 4.4 | 5.4 | 6.4 | ||||||
| G.W(kg) | 5.2 | 6.2 | 7.4 | ||||||
| LED Brand | Philips Lumileds | ||||||||
| Input Voltage | AC90V-305V | ||||||||
| Power Efficiency | 91% | ||||||||
| Power Factor | 0.95 | ||||||||
| Junction Temperature | <80℃ | ||||||||
| CRI | Ra 70±5 | ||||||||
| Working Environment | -40℃ to+50℃ | ||||||||
| Life Span | >5000000h | ||||||||
| Surge Protection | 10KV | ||||||||
| CCT | 3000K,4000K,5000K,6000K | ||||||||
| Material | Aluminium Alloy | ||||||||
| IP Rating | IP68 | ||||||||
Package - led tunnel lights manufacturers
Main Applications - tunnel light manufacturers
- Trunk roads tunnels, sub-trunk roads tunnels, highway tunnels and other tunnels.
Q1. What is your main product line is made?
We mainly produce led industrial lighting fixtures application classes and induction lighting fixtures.
(led street light, led high bay light, led flood light, led downlight, led tri-proof light,led gas station light,more.)
Q2. Are you factory or trading company?
We are a factory, we provide OEM services. Some famous foreign supermarkets and we often collaborate.
Q3. Does LED high bay light really have 50,000 hours lifespan?
50,000 or longer lifespan is only theroy from lab test.But due to working enviroments are different from in lab,actual lifespan is only ≥30,000hours.
Especially for LED high bays and LED floods,the power is very huge,and lots of heat cause LEDs junction temperature very high.And light decay will be higher than low power LED products.
If the led lights can work well 24/7 days without power off,and still work well in 5 years,
the lights are very good.That is why the warranty in the market are mostly 5 years.
Q4. For same power,why different suppliers with different brightness?
Different chips,or same chip but different brightness version.The brightness will be different.But for same chip and same brightness version,the brightness will be slight difference.But please make clear the difference between LEDs and lamp fixture.
For example,50W LED flood light,bridgelux 110-120lm/w LEDs,the LEDs brightness will be 5500-6000lm.But the LED flood fixture will be only around 4100lm.Please note.
Q5: What is PF and efficiency?
PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher cost.
Q6: What is CRI?
CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.Generally,LED flood and LED high bays,if they are made by epistar or bridgelux chip,the CRI are all around 70-75Ra.If this figure higher than 75,please ask your suppliers to send test data.Because there are some suppliers write a high data to attract clients but actually,the figure is even lower than the market.
Q7: Can we get support if we have our own market position?
Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
For any further information,please feel free to contact,we will send you PDF document to show full issues you care on LED business.
