2016 China Hottest Selling 60m 1080P HDMI Extender By Cat5E/6 Support 3D
1. Introduction of 2 2016 China Hottest Selling 60m 1080P HDMI Extender By Cat5E/6 Support 3D:
This 60m HDMI Extender use double cat-5E or cat-6(recommended) cables up to 60 meters instead of HDMI cable to transmit high definition signal, for cutting down cost. Long distance transmission of high definition is very difficult because HDMI cable is very expensive and infrequent. The Extender is designed to supply for long distance transmission of high definition signal.
2. Features 2016 China Hottest Selling 60m 1080P HDMI Extender By Cat5E/6 Support 3D:
1) HDCP 1.2 protocol compliant
2) Support 1080p and 3D
3) Support video input : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
4) Signal transmission: Double cat-5e or cat-6(recommended) cables up to 60 meters instead of HDMI cables are connected between TX and RX Extender.
5) Support CEC
6) Audio format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
7) LED indication : when power is supplied or device is working, LED relative to is light.
8) Support up to 20metres AWG26 cable between extender and source & sink device
9) No loss of quality
10) Installs in minutes
11) Need DC5V/2A power supply
3. Specifications of 2016 China Hottest Selling 60m 1080P HDMI Extender By Cat5E/6 Support 3D:
Length of CAT-6 cable between Rx and TX…..……………….………….……..Up to 60 meters
HDMI Input…..………………….….….24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Audio format input..………..........DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
HDMI Output…..…………….…..……24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Audio format output...…….………….............……..…………LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth………………………………......………………………………………….…………165MHz
Max baud rate……………….…….…………...................……….………….…………………4.95Gbps
Input Video signal ………….………………..............…………..………………….… 0.5~1.5Volts p-p
Output DDC signal ………………………….............………………………………… 5Volts p-p (TT1L)
Input/Output HDMI1.3 cable distance…..….…...≤20m AWG26 HDMI 1.3 standard cable
Max working current……………………………….................…...…………………..………...800mA
Power adapter format………...…..…Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A
Operating Temperature range……..………….........….……………………………… (-15 to +55°C)
Operating Humidity range……………………….....….….……….5 to 90%RH (No Condensation)
Dimension (L x W x H) ……………......................................................…82x44x22 (mm)
Weight…..………………………….....................................................………………………200g
Packing:
1) One HDMI Sender
2) Onr HDMI Receiver

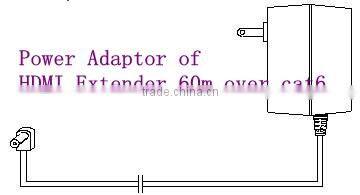

3) 5V Power Adapter
4) User’s Manual
Payment of HDMI Extender, HDMI Converter, HDMI Matrix, HDMI Splitter, HDMI Switch:
1) We could accept T/T and Western and Paypal Order. If you want other payment terms please let us know before you order.
2) Full payment should be made within 7 days after placing your order.
3) Make sure that you have completed all the detailed information like contact person, address, post code and telephone number when filling in your buyer's information.
Shipping of HDMI Extender, HDMI Converter, HDMI Matrix, HDMI Splitter, HDMI Switch:
1) UPS, DHL, Fedex and EMS, TNT are available.
2) The goods will be sent within 3 business days after the full payment has been confirmed. If payment is not available, your order will be closed automatically.
3) The products could be marked as "gifts" or "sample" for your easy custom clearances and less charge if you need. If you want to declare the goods as other item name, or specify an value for custom, please inform us when making the order.
Note: DHL/UPS/Fedex Express usually takes about 4-6 days to the destination, and about 5-8 work days by EMS or TNT. Hongkong Post Air Mail and Hongkong Post Air Parcel takes 7-30 days to ship to worldwide.
1. All products have proceeded aging test before shipping and we guarantee it's safety to use.
2. Support imprint your logo on products and let your logo shine anywhere that you like.
3. OEM/ODM orders are warmly welcome.
4. All products have 3 years warranty, if any not man-made problem, replace or repair are ok.
5. Best after-sale service, if any problems happen, our team will do our best to solve for you.
RealHD Established in 2009 by a group of rich experienced engineers, it is a professional manufacturer engaged in the research, development, production, sale and service of HDMI splitters, switchers, matrixes, converters, extenders and cables, our products are well saled in Europe, North America, Brazil, Australia.
