2016 Hottest 1.4v 4X4 HDMI Routing Matrix In Economical version
Features of 2016 Hottest 1.4v 4X4 HDMI Routing Matrix In Economical version :
1. Supports display resolutions up to 4K x 2K@30Hz,1080P@120Hz,and 1080P 3D@60Hz
2. 3D HDMI 1.4a video format support.
3. 3D video support including Frame Packing for all 3D formats up to a 297MHz TMDS clock.
4. Supports deep color up to 48-bit per pixel.
5. HDCP 1.4 support (INPUT), HDCP v1.4a protocol compliant (OUTPUT).
6. Supports reception of any audio data conforming to the HDMI specification 1.4 such ad L-PCM at up to 192kHz,compressed audio(IEC 61937),DSD,DST,DTS and HBR.
7. Full colorimetry including sYCC601, Adobe RGB, Adobe YCC601, xvYCC extended gamut color.
8. Operates for TMDS clock frequencies up to 300MHz.

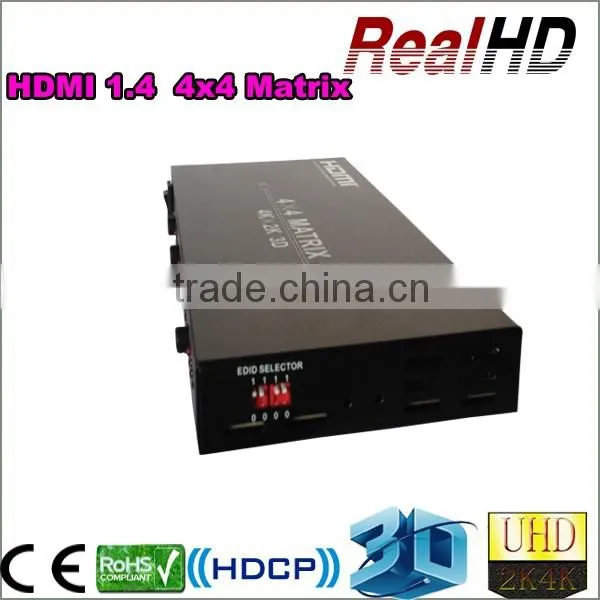

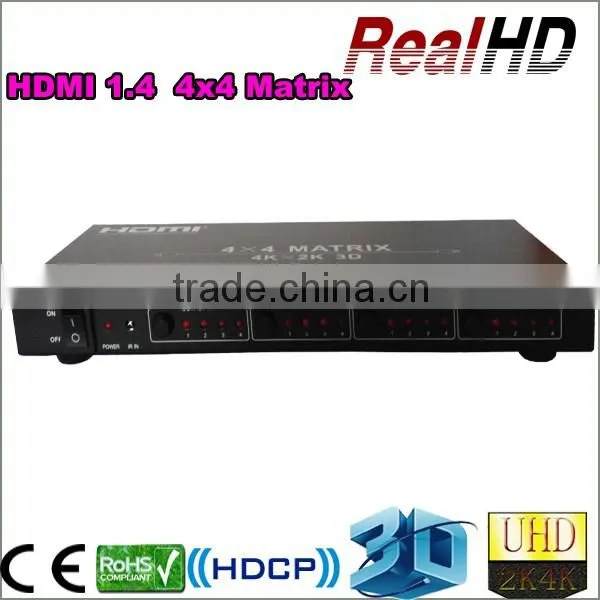

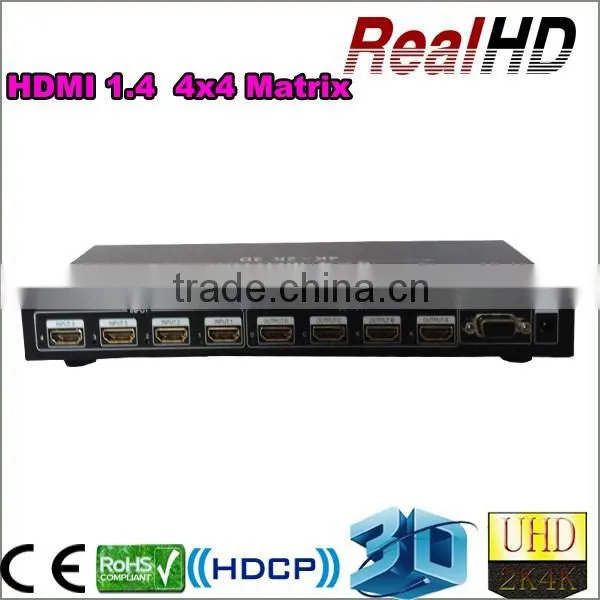

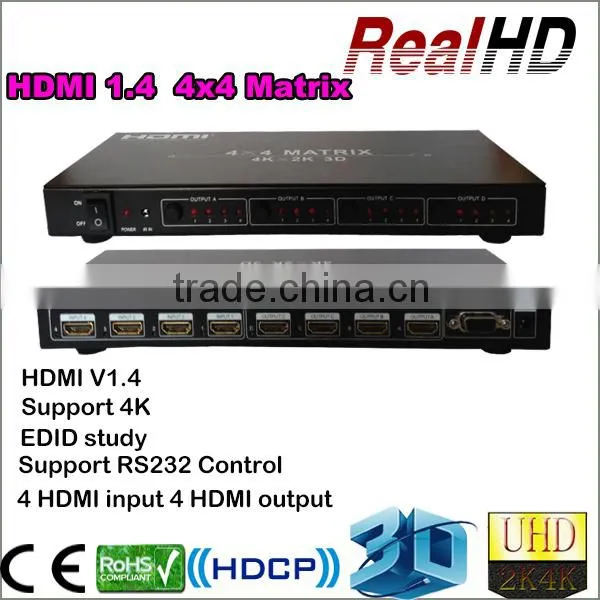

Pictures for 2016 Hottest 1.4v 4X4 HDMI Routing Matrix In Economical version :
Specifications of 2016 Hottest 1.4v 4X4 HDMI Routing Matrix In Economical version :
Operating Temperature Range |
0°C ~ 40°C / 32°F ~ 104°F |
Operating Humidity Range |
20 ~ 90% RH (Non-condensing) |
Frequency Bandwidth |
2.97Gbps |
Input Ports |
4 x HDMI Female input ports |
Output Ports |
4 x HDMI Female output ports |
Power Supply |
DC 12V, 2.5A |
ESD Protection Human Body Model: |
± 8kV (air-gap discharge)
± 4kV (contact discharge)
|
Dimension (L×W×H) |
113(W) X 260 (D) X 26 (H) |
Power Consumption (Max) |
20W |
Net Weight |
750g |
Table of Contents for 2016 Hottest 1.4v 4X4 HDMI Routing Matrix In Economical version :
Specifications
Package Contents
Panel Descriptions
Connecting and Operating
Typical Application
Maintenance
Product Service
Warranty
Notice:
Our company reserve the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice.
