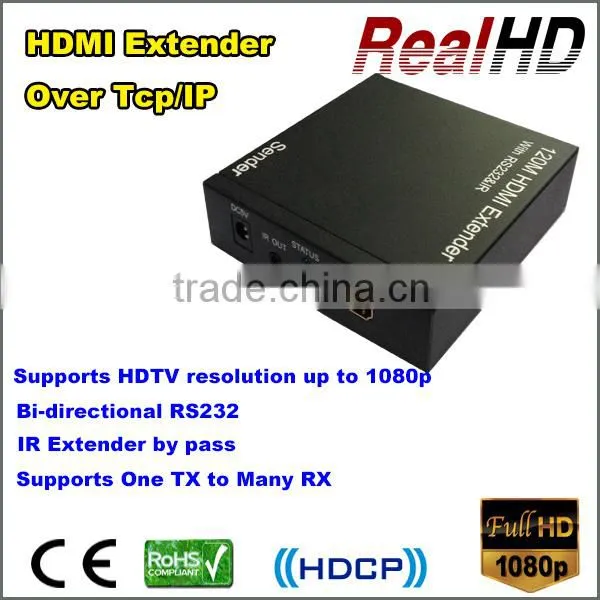

2016 China Best Selling 120m HDMI Extender by cat5e/6 with RS232 Over TCP/IP
Introducton of 2016 China Best Selling 120m HDMI Extender by cat5e/6 with RS232 Over TCP/IP :
This HDMI Extender is base on TCP/IP standard .It extends your HD display with the resolutions of 1080p/60Hz up to 395feets (120 meters)away from your HDMI or DVI-D source by using one CAT5e/6 cable.
With the advantage of TCP/IP standard, you can extend you HD video to multiple displays by using an Ethernet router or hub and the total distance can be up to max 660 feets
Features of 2016 China Best Selling 120m HDMI Extender by cat5e/6 with RS232 Over TCP/IP :
HDMI 1.3b
With RJ45, RS232 & IR
Following TCP/IP standard.
Supports resolution up to 480p/720p/1080i/1080p.
CAT 5e/6 cable follows the standard of IEEE-568B
Specifications of 2016 China Best Selling 120m HDMI Extender by cat5e/6 with RS232 Over TCP/IP :
| Signal Input/Output | |
| Input/Output port of sender | HDMI Female x1 |
| RJ45 Female x1 | |
| IR Extender in x1 | |
| RS232 in x1 | |
| Input/Output port of receiver | HDMI Female x1 |
| RJ45 Female x1 | |
| IR Extender out x1 | |
| RS232 out x1 | |
| Operating Frequency | |
| Vertical Frequency Range | 50/60HZ |
| Video Amplifier Bandwidth | Max up to 1.65Gbps/165MHZ |
| Resolutions(HDTV) | |
| Interlaced(50&60HZ) | 480i ,576i,1080i,for HDMI |
| Progressive(50&60HZ) | 480P,576P,1080P for HDMI |
| Mechanical | |
| Size(L-W-H) | 103X100X24mm |
| Weight(Net) | 800g |
| Environmental | |
| Operating Temperature | 0 °C-70°C |
| Operation Humidity | 10%-85%RH(no condensation) |
| Storage Temperature | -10 °C+80°C |
| Storage Humidity | 5%-90%RH(no condensation) |
| Power Requirement | |
| External Power Supply | DC 5V@1A x2 |
| Power consumption(Max) | 2.5W |
| Accessories Adapter | |
| Use manual | English Version |
Connection and operation of 2016 China Best Selling 120m HDMI Extender by cat5e/6 with RS232 Over TCP/IP :

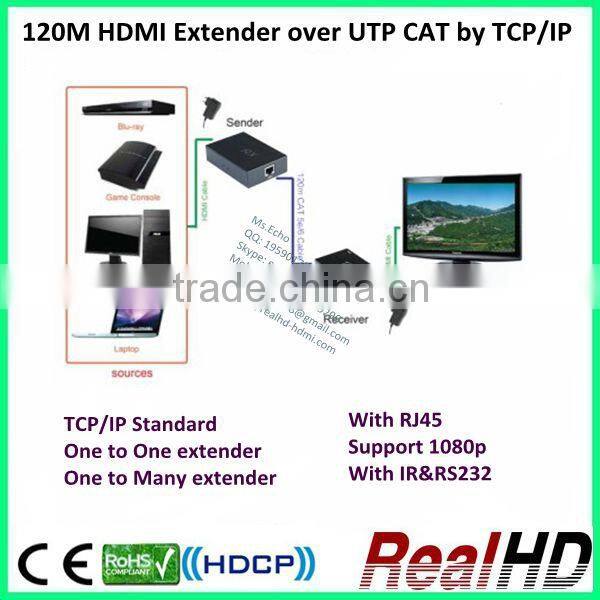

One to One HDMI Extender Matrix:

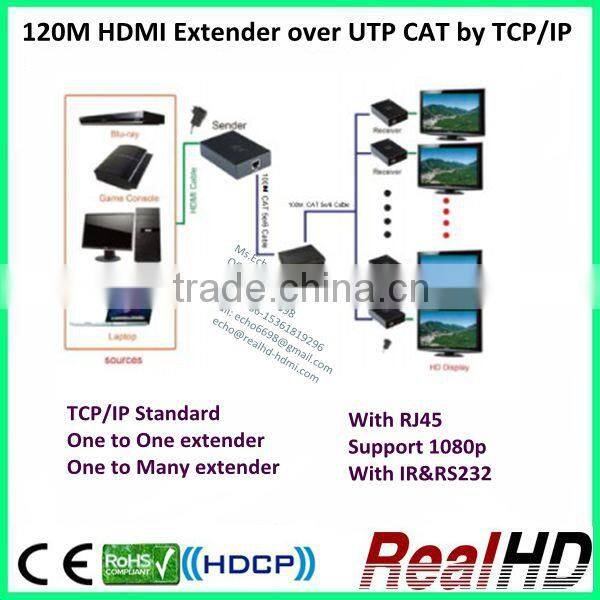

One to Many HDMI Extender Matrix:
1) Connect the HDMI source(such as DVD, PS3, STB) to the HDMI IN of the hdmi receiver.
2) Connect the HDMI out of the hdmi receiver to HDTV's display.
3) Use one cat5e/6 cable up to 120m to connect the hdmi sender and hdmi receiver.
4) Plug two pieces of 5V power supply into the hdmi sender and hdmi receiver.
5) Power on the HDTV display and HDMI sources.

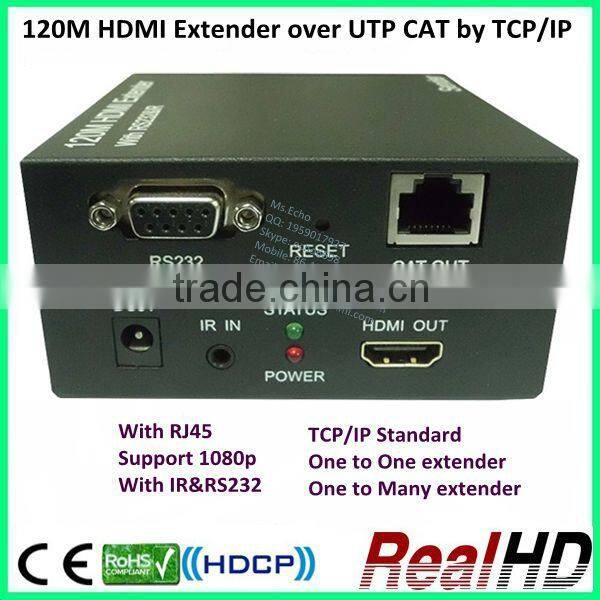

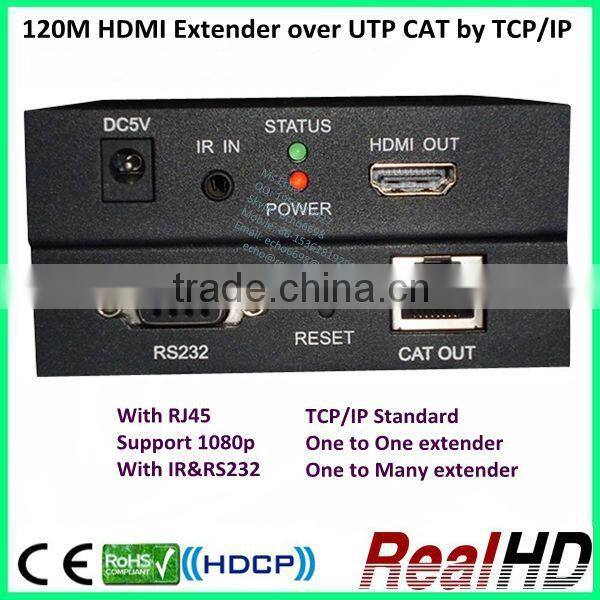

Panel description of 2016 China Best Selling 120m HDMI Extender by cat5e/6 with RS232 Over TCP/IP :

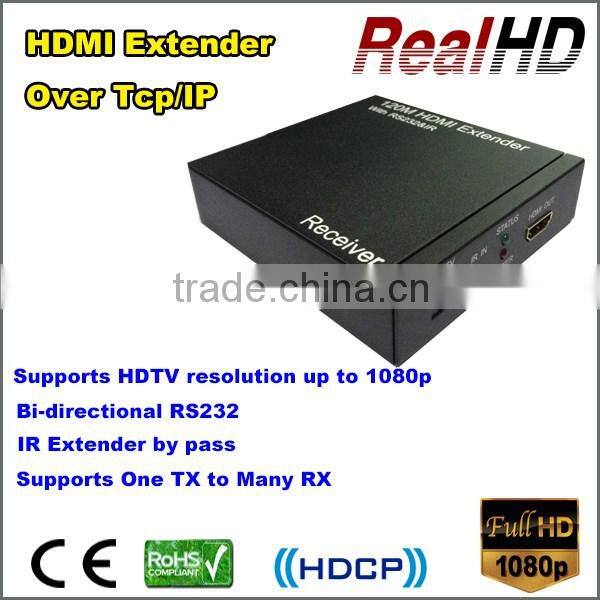

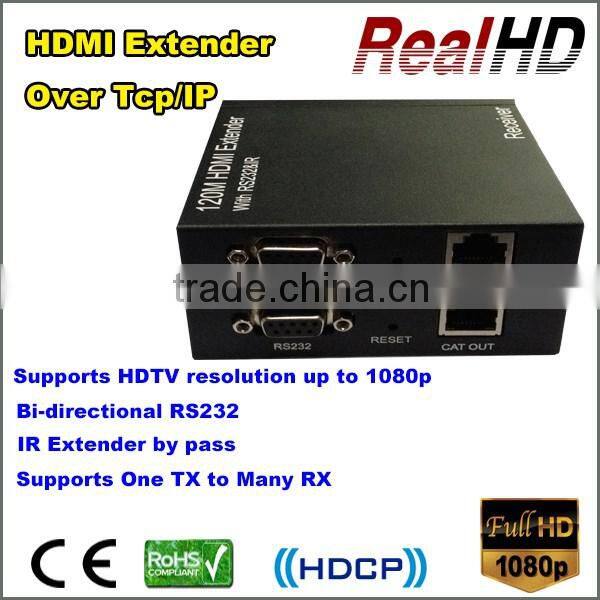

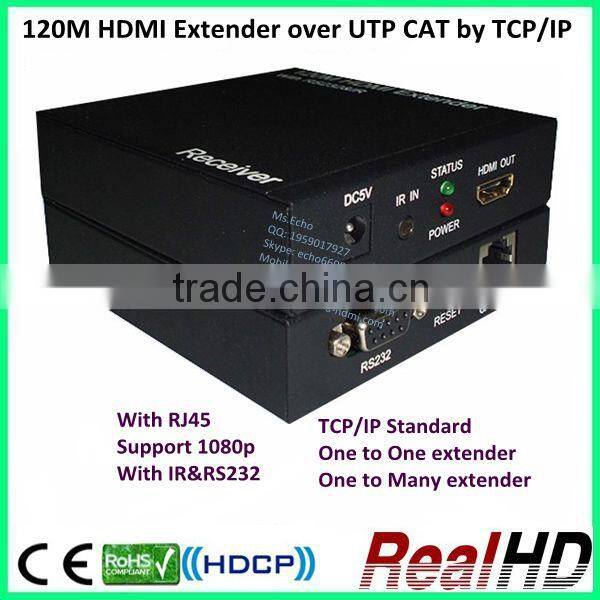

HDMI Reciever description:

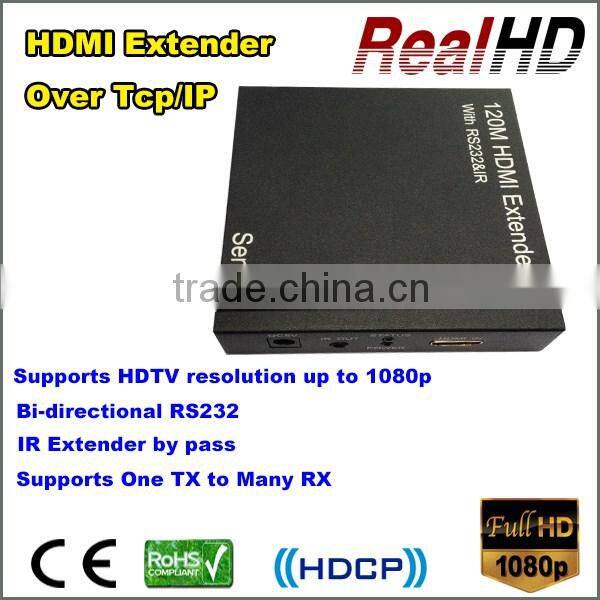

HDMI Sender description:
Packing:
1) Main unit No.1 Sender
2) Main unit No.2 receiver
3) Two pieces of DC 5V 1A power supply
4) User’s Manual
Payment of HDMI Extender, HDMI Matrix, HDMI Splitter, HDMI Converter, HDMI Switch:
1) We could accept T/T and Western Union and Paypal Order. If you want other payment terms please let us know before you order.
2) Full payment should be made within 7 days after placing your order.
3) Make sure that you have completed all the detailed information like contact person, address, post code and telephone number when filling in your buyer's information.
Shipping of HDMI Extender, HDMI Matrix, HDMI Splitter, HDMI Converter, HDMI Switch:
1) UPS, DHL, Fedex and EMS, TNT are available.
2) The goods will be sent within 3 business days after the full payment has been confirmed. If payment is not available, your order will be closed automatically.
3) The products could be marked as "gifts" or "sample" for your easy custom clearances and less charge if you need. If you want to declare the goods as other item name, or specify an value for custom, please inform us when making the order.
Note: DHL/UPS/Fedex Express usually takes about 4-6 days to the destination, and about 5-8 work days by EMS or TNT. Hongkong Post Air Mail and Hongkong Post Air Parcel takes 7-30 days to ship to worldwide.
Pictures:
1. All products have proceeded aging test before shipping and we guarantee it's safety to use.
2. OEM and ODM are welcome, and could imprint your logo.
2. 3 years warranty for all products, and If not man-made problem, replace or repair are ok.
Contact person of our HDMI Products:
RealHD Established in 2009 by a group of rich experienced engineers, it is a professional manufacturer engaged in the research, development, production, sale and service of HDMI splitters, switchers, matrixes, converters, extenders and cables, our products are well saled in Europe, North America, Brazil, Australia.
