2015 Best Selling V1.4a 300m HDMI Fiber Extender
- 3000 Piece / Pieces per Month
- Shenzhen China
- T/T L/C D/P D/A Credit Card PayPal
- 1080P HDMI Wireless Extender Kit 200m IR Video Transmitter and Receiver for Projector Laptop PC Switch Converter Screen Shared
- AIRPODS MAX (2020)
- Pen tablet painting graphic design pen monitor BOSTO X5 120% sRGB color full-laminated screen battery-free drawing tablet
- Factory wholesale 1280*720 lcd led poratble home theater projector Y7
- Top on sale 720p hd smart android projector HY300
- Camera Interface for Mecedes-Benz NTG 6.0,7" screen, A class
Product Details
Brand Name: | RealHD | Model Number: | RDEF300M | Place of Origin: | Guangdong, China |
Product Description

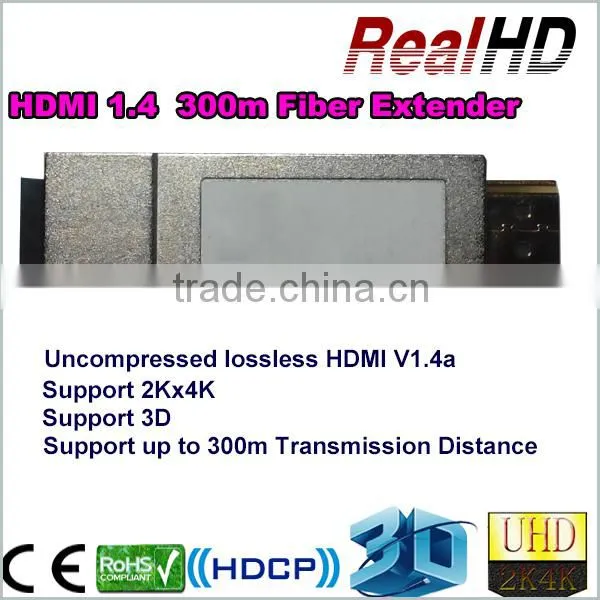

2015 Best Selling V1.4a 300m HDMI Fiber Extender
1. Introduction:
This HDMI Fiber Extender support transmission of an uncompressed lossless HDMI 1.4a . Signal over multimode optical fiber at 850nm, up to distance at 300m, at a resolution of 4Kx2K. REXMF300T converts an HDMI signal to a single 10Gb/s serial data stream for transmission over two optical fibers, REXMF300R converts the serial data back to an HDMI signal.
2. Specifications:
Signal Input/Output |
|
Input/Output port of transmitter | HDMI Female x1 |
| Fiber Female x1 |
| Mini USB Female x1 |
|
|
Input/Output port of receiver | HDMI Female x1 |
| Fiber Female x1 |
| Mini USB Female x1 |
|
|
Operating Frequency |
|
Vertical Frequency Range | 50/60HZ |
Video Amplifier Bandwidth | Max up to 10.3Gbps |
Resolutions(HDTV) |
|
Interlaced(50&60HZ) | 480i ,576i,720i,1080i,4kx2k forHDMI |
Progressive(50&60HZ) | 480P,576P,720p,1080P,4kx2k forHDMI |
Mechanical |
|
Size(L-W-H) | 90X25X20mm |
Weight(Net) | 80g |
Environmental |
|
Operating Temperature | 0 °C-70°C |
Operation Humidity | 10%-85%RH(no condensation) |
Storage Temperature | -10 °C+80°C |
Storage Humidity | 5%-90%RH(no condensation) |
Power Requirement |
|
External Power Supply | USB POWER |
Power consumption(Max) | 1.4W |
Accessories Adapter |
|
Use manual | English Version |
3. Features:
1) HDMI 1.4a
2) Support 4Kx2Kx30 Resolution
3) Support 3D.
4) Support HDCP
5) DDC CEC HDP Signal Support
6) Support up to 300m Transmission Distance at up to 10.3Gbps with OM3 Multimode Fiber
7) Integrated USB Connector For Power
8) Hot-Pluggable
9) 850nm VCSEL and PIN Photo detector
10) 2-Wire Interface
4. Connection:
5. Pictures:
Packing:
1) Main unit hdmi transmitter
2) Main unit hdmi receiver
3) Two pieces of USB lines
4) User’s Manual
Payment of HDMI Extender, HDMI Matrix, HDMI Splitter, HDMI Converter, HDMI Switch:
1) We could accept T/T and Western Union and Paypal Order. if you want other payment terms please let us know before you order.
2) Full payment should be made within 7 days after placing your order.
3) Make sure that you have completed all the detailed information like contact person, address, post code and telephone when filling in your buyer's information.
Shipping of HDMI Extender, HDMI Matrix, HDMI Splitter, HDMI Converter, HDMI Switch:
1) UPS, DHL, Fedex and EMS, TNT are available.
2) The goods will be sent within 3 business days after the full payment has been comfirmed, If payment is not available, your order will be closed automatically.
3) The products could be marked as "gifts" or "sample" for your easy custom clearances and less charge if you need. If you want to declare the goods as other item name, or specify an value for custom, please inform us when making the order.
Note: DHL/UPS/Fedex Express usually takes about 4-6 days to the destination, and about 5-8 work days by EMS or TNT. Hongkong Post Air Mail and Hongkong Post Air Parcel takes 7-30 days to ship to worldwide.
1. All products have proceeded aging test before shipping and we guarantee it's safety to use.
2. OEM and ODM are welcome, and could imprint your logo.
2. 3 years warranty for all products, and If not man-made problem, replace or repair are ok.
Contact Person of our hdmi products:
RealHD Established in 2009 by a group of rich experienced engineers, it is a professional manufacturer engaged in the research, development, production, sale and service of HDMI splitters, switchers, matrixes, converters, extenders and cables, our products are well saled in Europe, North America, Brazil, Australia.
