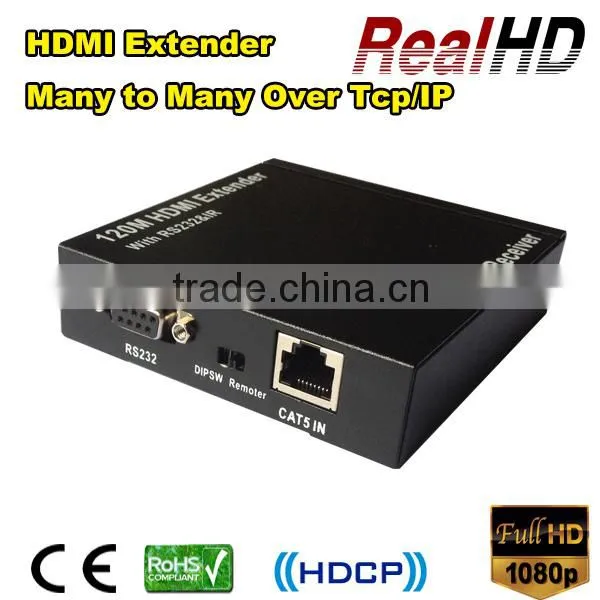

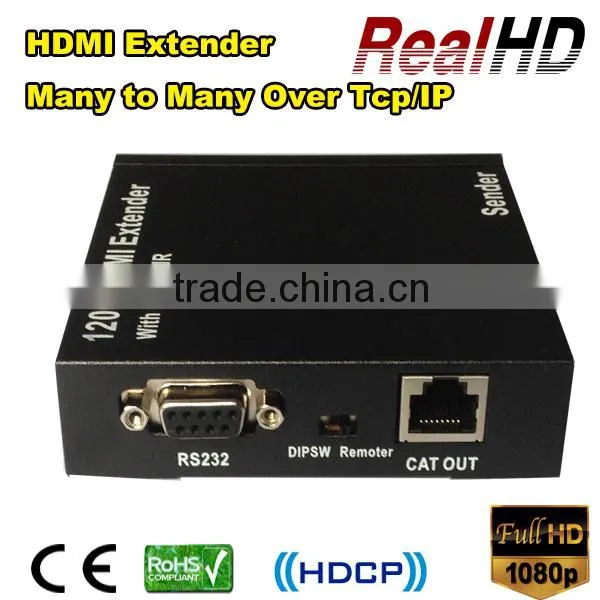

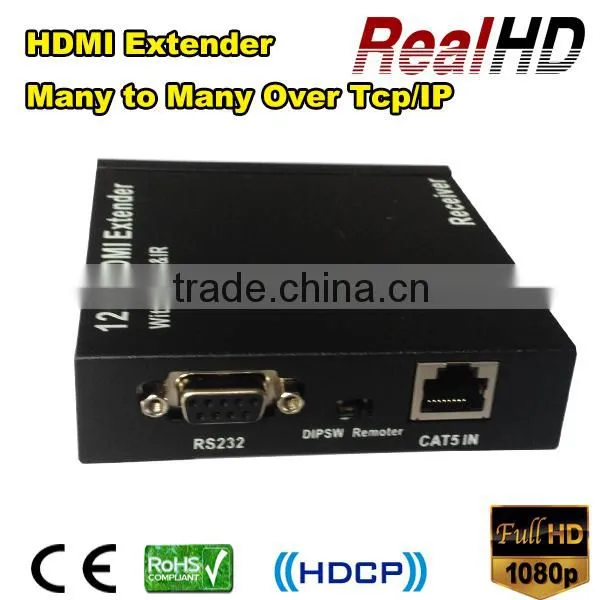

Over TCP/IP 120M HD MI Extender Many To Many
Introducton of Many to Many HDMI Extender by cat5e over 120m:
This HDMI Matrix Extender 120m is a sophisticated many to many HDMI extender over TCP/IP by CAT5e/6. It supports HDCP 2.0 compliant and resolutions up to 1080P full HD and 1920x1200 (WUXGA). Multiple receivers can simultaneously connect to any transmitters from a virtual crosspoint matrix of 16 transmitters and many receivers up to 65,000 units theoretically.

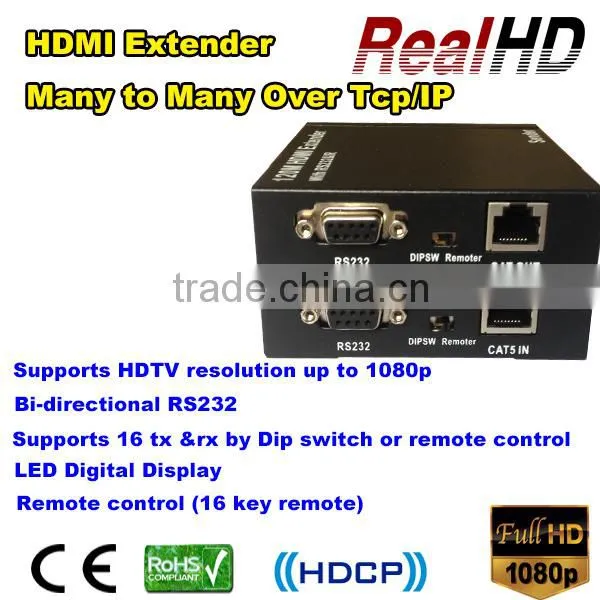

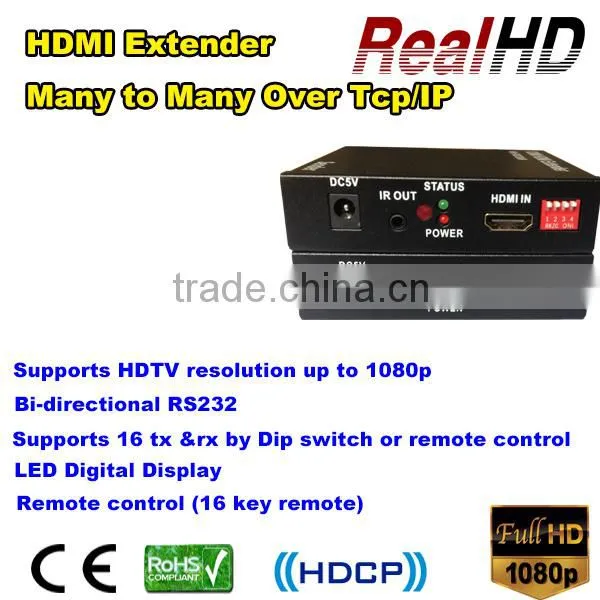

Features of Many to Many HDMI Extender by cat5e over 120m:
1) HDMI signal extension up to 100 meters.
2) Supports HDTV resolution up to 1080p .
3) Supports PCM 2.1, 5.1 and 7.1 Ch Audio.
4) Supports one-to-one, one-to-many and many to many connections via managed switch.
5) Supports up to 16 transmitters by Dip switch selection or remote control.
6) Supports up to theoretically 65,000 receivers.
7) IR pass-through.
8) Bi-directional RS232.
9) Line in / Line out.
10) Compliant with HDMI 1.3c and HDCP 2.0 standards.
11) Audio and video are transmitted digitally over the 100Ohm Cat.6 cable for lower signal loss.
12) TV will show display source channel, which is easier for end user to control.
13) LED Digital Display.

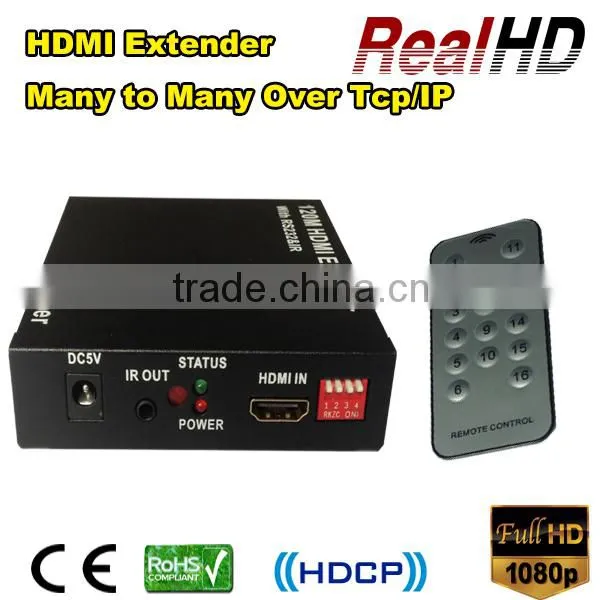

14) Remoter control (16 key remoter)
Specifications of Many to Many HDMI Extender by cat5e over 120m:
| PERFORMANCE | |
| HDTV Resolutions | 480p, 720p, 1080i, 1080p |
| Color Depth | 36 Bit |
| Audio Format | PCM 2 Ch audio |
| IR Range | 30 kHz to 50 kHz |
| Maximum Cable Range | HDMI Input: 5 meters Max, |
| HDMI Outputs: 5 meters Max | |
| Video Bandwidth | 150MHz via LAN |
| Input Video Signal | 3.3 Volts P-P |
| Input DDC Signal | 5.0 Volts P-P |
| I/O CONNECTORS | |
| Transmitter | |
| Inputs | 1 x HDMI-A 19pin socket |
| 1 x 3.5mm Jack for Microphone | |
| 1 x 3.5mm Jack for IR extender | |
| 1 x 2.5mm DC Jack for Power | |
| 1 x DB9pin for RS232 | |
| Outputs | 1 x RJ45 Jack |
| 1 x HDMI-A 19PIN Socket | |
| 1 x 3.5mm Jack for speaker | |
| 1 x 3.5mm Jack for IR Emitter | |
| Receiver | |
| Inputs | 1 x RJ45 Jack |
| 1 x 3.5mm Jack for Microphone | |
| 1 x 3.5mm Jack for IR extender | |
| 1 x 2.5mm DC Jack for Power | |
| 1 x DB9pin for RS232 | |
| Outputs | 1 x HDMI-A 19PIN Socket |
| 1 x 3.5mm Jack for speaker | |
| 1 x 3.5mm Jack for IR Emitter | |
| MECHANICAL | |
| Transmitter | |
| Dimensions (H-W-D) | 200*105*27mm |
| Weight | 0.6kg |
| Receiver | |
| Dimensions (H-W-D) | 200*105*27mm |
| Weight | 0.61kg |
| WARRANTY | |
| Limited Warranty | 1 Year Parts and Labor |
| ENVIRONMENTAL | |
| Operating Temperature | +0 to +40° C (+32° to 104° F) |
| Operating Humidity | 10% to 85% (Non-condensing) |
| Storage Temperature | -20° to +60° (+20° to +140° F) |
| Storage Humidity | 10% to 85% (Non-condensing) |
| POWER REQUIREMENTS | |
| External Power Supply | 5VDC/2.5A |
| SAFETY | |
| Certificate | FCC, CE, RoHS |
| Power Adapter | UL, FCC, CE, RoHS |
1) Connect the HDMI source(such as DVD, PS3, STB) to the HDMI IN of the hdmi receiver.
2) Connect the HDMI out of the hdmi receiver to HDTV's display.
3) Use one cat5e/6 cable up to 120m to connect the hdmi sender and hdmi receiver.
4) Plug two pieces of 5V power supply into the hdmi sender and hdmi receiver.
5) Power on the HDTV display and HDMI sources.
Packing of Many to Many HDMI Extender by cat5e over 120m:
1) One HDMI Transmitter
2) One HDMI Receiver
3) One Remoter
4) Two Power Adapters
5) One User's Manual
Payment of HDMI Extender, HDMI Splitter, HDMI Converter, HDMI Matrix, HDMI Switcher:
1) We could accept T/T and Western Union and Paypal Order. If you want other payment terms please let us know before you order.
2) Full payment should be made within 7 days after placing your order.
3) Make sure that you have completed all the detailed information like contact person, address, post code and telephone number when filling in your buyer's information.
Shipping of HDMI Extender , HDMI Splitter, HDMI Converter, HDMI Matrix, HDMI Switcher:
1) UPS, DHL, Fedex and EMS, TNT are available.
2) The goods will be sent within 3 business days after the full payment has been confirmed. If payment is not available, your order will be closed automatically.
3) The products could be marked as "gifts" or "sample" for your easy custom clearances and less charge if you need. If you want to declare the goods as other item name, or specify an value for custom, please inform us when making the order.
Note: DHL/UPS/Fedex Express usually takes about 4-6 days to the destination, and about 5-8 work days by EMS or TNT. Hongkong Post Air Mail and Hongkong Post Air Parcel takes 7-30 days to ship to worldwide.
1. All products have proceeded aging test before shipping and we guarantee it's safety to use.
2. OEM and ODM are welcome, and could imprint your logo.
2. 3 years warranty for all products, and If not man-made problem, replace or repair are ok.
RealHD Established in 2009 by a group of rich experienced engineers, it is a professional manufacturer engaged in the research, development, production, sale and service of HDMI splitters, switchers, matrixes, converters, extenders and cables, our products are well saled in Europe, North America, Brazil, Australia.
