Outdoor Full Color LED Screen on Building Top P16

Wooden Box

Specifications

1. High uniformity for LED
2. High performance of anti-vibration
3. Easy assembly
4. Extreme low blind LED rate.
5. CE UL

P16 Outdoor Full Color LED Display on Building Top Parameter





No.	Type	Full Color
1	Pixel Configuration	2R+1G+1B
2	Module Resolution	16pixels(H)×16pixels(W)
3	Module Dimension	256 mm(H)×256mm(W)×160mm(L)
4	Power Consumption(average)	400w/ m2
5	Power Consumption(max)	800 w/ m2
6	Density	3906pixels/m2
7	Brightness	>7000 nits
8	Color	16.7 M
9	Brightness Control	Manual/Auto
10	Gray Scale Rectification	rrectification
11	Picture Regulation	Contrast/Chroma regulation/Module brightness regulation
12	Drive Mode	Static
13	Refresh Rate	1080HZ
14	Control Mode	Synchronization control
15	Video Interface	S-Video, VGA, DVI etc.
16	Life Time	100,000 hours
17	Mean Time To Failure	>10,000 hours
18	Blind LED	None
19	Temperature	-35°C~+55°C
20	Relative Humidity	10%-95%RH
21	Display Flatness	The display:±1mm Gap between modules:1mm
22	Display Information	Video, Animation, Picture, Text etc.
23	Voltage	220V±10%,380V±10%
24	Communication Distance	<20km







 Front View of Module







Front View of Cabinet





Back View of Cabinet



Inside View of Cabinet

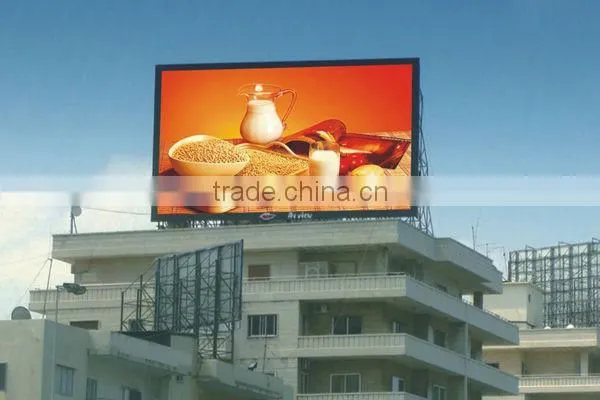

Project View



Project View





Aging Test in SunYEX Factory



 Strict Incoming Quality Check and Selection for Raw Material & Technology Advantages

Our advantage below:

1. LED: Antistatic>5000V

2. High temperature resistant>300°C

3. 14mil LED chips

4. 1.2mil gold wire
5. Copper brackets specially for LED display requiring cooling rapidly, excellent soldering performance.

6. Top quality of epoxy resin glue by Taiwan’s top company. Anti-ultraviolet ray, expansion & shrinkage resisting

7. Adopting Japanese Nichia LED classification standard to ensure the uniformity of LED color & brightness.
8. Connectors: above 2 mil brass connectors, phosphor copper,100% salt spray PH experiment, difficult to be oxidated and corroded.

9. Extreme flexibility,

10. Pluggable times is above 200 times.

11. High endurance in normal climate with long life span>10 years.
12. Shell: Using PC of German Bell Co. High intensity, long life span, anti-ultraviolet, able to withstand outdoor rigorous ambient, high and low temperature resistance, fire with the UL standard grades.
     Mask: using special anti-ultraviolet non-shine process, good uniformity.
     PCB: using PCB with UL certification, thickness of copper>one ounce, greatly extending the useful life and enhancing corrosion resistance and reliability.
    Power: all using Taiwan power with UL and CE certification, enhancing the reliability of the screen power supply.

  Production Advantages


Equipment

1. SunYEX has several auto production lines equipment with Taiwan auto-encapsulate machine, Taiwan Chang-Yu handler, and the production of LED meets the demand of high quality standard LED display.
2. Using full set of injection machine to meet the high quality requirements for shells, masks.

3. LED lead-free reflection wave soldering machine.



Features:

1. High uniformity for LED
2. High performance of anti-vibration
3. Easy assembly
4. Extreme low blind LED rate.
5. CE UL FCC certified
