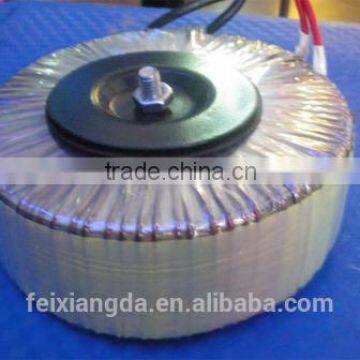

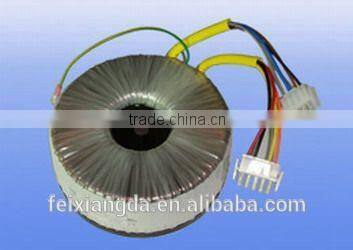

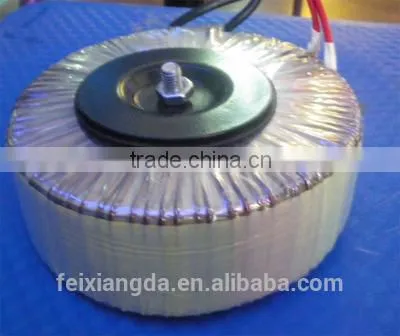

Toroidal transformer
Instruction for Toroidal transformer
Single-phase toroidal transformers, power range from 20VA to 5000VA. Designed and tested according to EN61558. Suitable for installation in electronically equipment.Designed as a safety isolating transformer with separate insulated windings and prepared for class II equipment.Short circuit and overload protected with thermal fuse on primary side. Up to 50% less weight than a similar conventional transformer.Low magnetisation currents and no-load losses.
Application
Suitable as safety isolating transformer in constructions where low weight, flexible dimensions and optimum conditions between dimensions are preferable
Mounting (2 kinds)
1.Parts for mounting supplied(rubber mats, screws and nuts)
2.Central proxy resin encapsulation and drilling
Parameters for Toroidal transformer
| Input voltage: | Customized |
| Frequency: | 50-60Hz |
| Output voltage: | Customized |
| According to: | EN61558 |
| Test/insulating voltage: | 4kV AC RMS |
| Construction | class II |
| Insulation class: | B (130°C) |
| Ambient temp. | 25°C |
| Rated Power (VA) | Voltage Regulation (%) | Efficiency (%) | Dimension(mm) | Weight (Kg) | |
| Height | Diameter | ||||
| 30 | 16 | 83 | 30 | 80 | 0.6 |
| 100 | 11 | 88 | 42 | 100 | 1.3 |
| 150 | 7.3 | 90 | 45 | 115 | 1.85 |
| 200 | 6.2 | 91 | 53 | 123 | 2.3 |
| 250 | 5.6 | 92 | 53 | 128 | 2.6 |
| 300 | 5.3 | 93 | 55 | 135 | 3 |
| 400 | 4.6 | 94 | 60 | 140 | 3.8 |
| 500 | 4.3 | 95 | 66 | 146 | 4.5 |
| 800 | 4 | 95 | 85 | 160 | 7 |
| 1000 | 3.8 | 96 | 90 | 165 | 8.5 |
| 1200 | 3.3 | 96 | 95 | 168 | 9 |
| 1500 | 3 | 96 | 100 | 173 | 9.5 |
| 2000 | 2.9 | 96 | 110 | 183 | 13 |
| 4000 | 2.2 | 97 | 135 | 245 | 23 |
| 5000 | 2.1 | 98 | 145 | 270 | 28 |
Company Information
ShenZhen FeiXiangDa Electrical Co.,Ltd specialized in manufacturing and selling various power supply products including precise and energy-efficient voltage stabilizer, transformer, voltage regulator, variable frequency power, DC power and UPS power supply etc…
Our company is integrated with R&D, design, manufacturing, marketing, and service, and was introduced by ISO9001 quality standard and 3C certifying for multi-products, we are supplying reliable, energy-efficient products and guarantee to different scopes covering OEM factory, minerals, telecommunications , finance, government, energy, traffic, medical, military, education etc.
Our company is based on honesty, loyalty and credibility, we always offer overall solution with professional technique, precise equipments and perfect service.
Certifications
Our partner
We service most domestic and oversea famous customers of transformer and receive high reputation for many years.Our products widely used in the follow machines and service our customers:
You can send your inquiry to MS. Ivy Wu through below ways
M:+86-18923857949 T:+86-755-27525435
Skype:ivy.wu.1
