Porducts introduction
The UPS, i.e., uninterrupted power supply, is a species containing energy storage device, the inverter as the main part of the constant voltage constant frequency uninterrupted power supply. Mainly used to a single computer, computer network system or other power electronic devices to provide uninterrupted power supply. When the city electricity input, the UPS will be the city electricity voltage supply to the load. This moment,the UPS power supply is a AC power regulator. At the same time, it also charge to the betteries inner the UPS.When the city electricity interruption, UPS immediately supply 220V alternating current to the load through the inverse conversion method to the machine electronic energy. The load can maintain the normal working and protect the load of soft, hardware from damage.
Parameter for UPS
| Capacity | From 10KVA to 300KVA |
| Input type | Three phase five wire system |
| Input voltage scope | 380V±20% |
| Input capacity demand | Rated input ≥120%rated output |
| Input power factor | >0.8(rated input voltage and full load |
| Start way | Soft start(no impulse current) |
| DC voltage | 360VDC(384VDC can be choosed) |
| Rated output power | Rated output capacity x0.8 |
| Bypass voltage | 380VAC ±20% |
| Rated output voltage | 380VAC ±20% |
| Rated output frequency | 50±0.5Hz(test when the bettery under a contravariant work status) |
| Output waveform | sine wave |
| Waveform distortion | ≤2%(Linear negative number) |
| Output power factor | 0.8 |
| Noise | <60dB |
| Kinetic transient range | ±10% |
| Transient recover time | ≤2u S |
| Power supply efficiency | >80% |
| Over load ability | 125%(1 min)150%(1S) |
| bypass switing time | ≤1u S |
| non-breakdown working time | 200000 H |
| Locking range | 50 ±2.5Hz |
| Working temperature | 0 ~ 40℃ |
| Relative humidity | 95%(noncondense) |
| Protection grade | IP20(according to IEC5299) |
Specification for UPS
| Model No. | Capacity | Dimenstion(D*W*H mm including wheel) | Weight(KG) |
| FXD-3010 | 10KVA | 700x520x1100 | 190 |
| FXD-3015 | 15KVA | 700x520x1100 | 230 |
| FXD-3020 | 20KVA | 780x580x1190 | 320 |
| FXD-3030 | 30KVA | 780x580x1190 | 365 |
| FXD-3040 | 40KVA | 1000x660x1460 | 440 |
| FXD-3050 | 50KVA | 1000x660x1460 | 520 |
| FXD-3060 | 60KVA | 1000x660x1460 | 605 |
| FXD-3080 | 80KVA | 1150x900x1500 | 850 |
| FXD-3100 | 100KVA | 1150x900x1500 | 1040 |
| FXD-3120 | 120KVA | 1150x900x1500 | 1110 |
| FXD-3140 | 140KVA | 1150x900x1500 | 1250 |
| FXD-3160 | 160KVA | 1600x750x1600 | 1380 |
| FXD-3200 | 200KVA | 1600x750x1600 | 1500 |
| FXD-3250 | 250KVA | 1600x750x1600 | 1600 |
| FXD-3300 | 300KVA | 1600x750x1600 | 2100 |

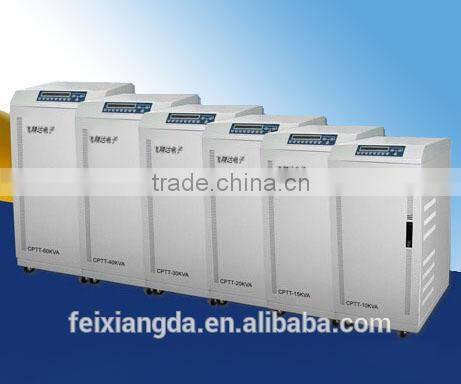

Product pictures
