Variable Frequency Power Supply 20K

Variable Frequency Power Supply 20K thumbnail-1
Variable Frequency Power Supply 20K photo-1
US$ 100 - 1,000 MOQ: 10 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Feixiangda
Model Number:
FXD-3020
Contact Supplier Request Quote Chat Now
Shenzhen FeiXiangDa Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen or HongKong or can be choosed
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Feixiangda
Model Number FXD-3020
Output Power Other, 500W~300KW
Output Type Multiple
Size Depend
Weight 3KG~300KG
Input Voltage 380V
Output Voltage 0-150V 0-300V
Type Other, 3 phase
Output Frequency 50/60Hz
Output Current 130A 200A 390A 500A 650A 860A 980A

Product introduction

Frequency conversion power supply is a kind of soft magnetic component, which has the function of voltage conversion, transmission power and insulation isolation.



Function features

1.One machine has muptiply usage.

2.Provide the world's standard power supply, stable and pure sine wave, simulation testing of various electrical products;

3.16 bit microcontroller (simulation) control,  intelligent (simulation) control the output voltage and frequency, easy to operate. ;

4.High frequency PWM design, with IGBT to do power driven, small volume, low noise;

5. Unique clockwise control mode, can set the standard voltage -10%~-30% and +10%~+25%, the control precision is high, the waveform quality is good, can adapt to all kinds of load

6.Efficiency is up to 85%, wide application, load power factor can be 0.5~1.0;

7.Intelligent response fast, to 100% of the on-load or off-load, the regulator reaction time is within 2ms

8.Overload ability is strong, the instantaneous current can withstand the rated current 300%;

9.With high current, overload, over temperature, and other multiple protection and alarm;

10.Current(A) ,voltage (V) , frequency (Hz), power (W), power factor (PF) all use LED digital tube display, easy to read, high resolution;

11.Output voltage have 0~150V/0~300V two gear shifting;

12.Output frequency can be adjusted as 50HZ, 45HZ~65HZ, 60HZ, 2F, 4F, 400HZ;

13. Low distortion, input / output complete isolation, safe and reliable

14.Wide range of application, can be widely used in variable frequency transformer;

15.Single phase 500VA~500KVA, three-phase 3KVA~1600KVA, can be customized of special specifications





Parameter for Variable frequency power supply



Input voltage three phases 380V   Flunctuation range323V~528V
Input frequency 50/60Hz ±5%   Power factor:≥85%
Output voltage 80V~144V(0~150V)145V~288V(0~300V)
Output frequency 47Hz~63Hz(47Hz~63Hz,50Hz,60Hz,2Ff,4F,400Hz)can adjust
Rated current 130A 200A 390A 500A 650A 860A 980A
Over-load ability Instantaneous current can be 300% of rated current
Strain time When 100% on-load or off-load,voltage regulation is within 2ms
Frequency stability ≤0.01%(0~100% load change,output frequency is unchanged
Load regulated rate ≤3%(100% absolutely resisdance load)
Efficiency ≥85%,when the power factor is ±0.5~1.0 or +10%~+25%,it can intelligent respond rapidly
Control way IGBT/SPWM Sine parallel modulation
Display way Display the voltage,current,frequency,and power factor through LED
Protection over-voltage,over-current,over-temperature,short circuit,short pahse
Insulation resistance >2M OHM
Noise <65dB(A)
Relative humidity Under 90%,-10℃~45℃(outdoor-30℃~45℃)
Install altitude <1000m

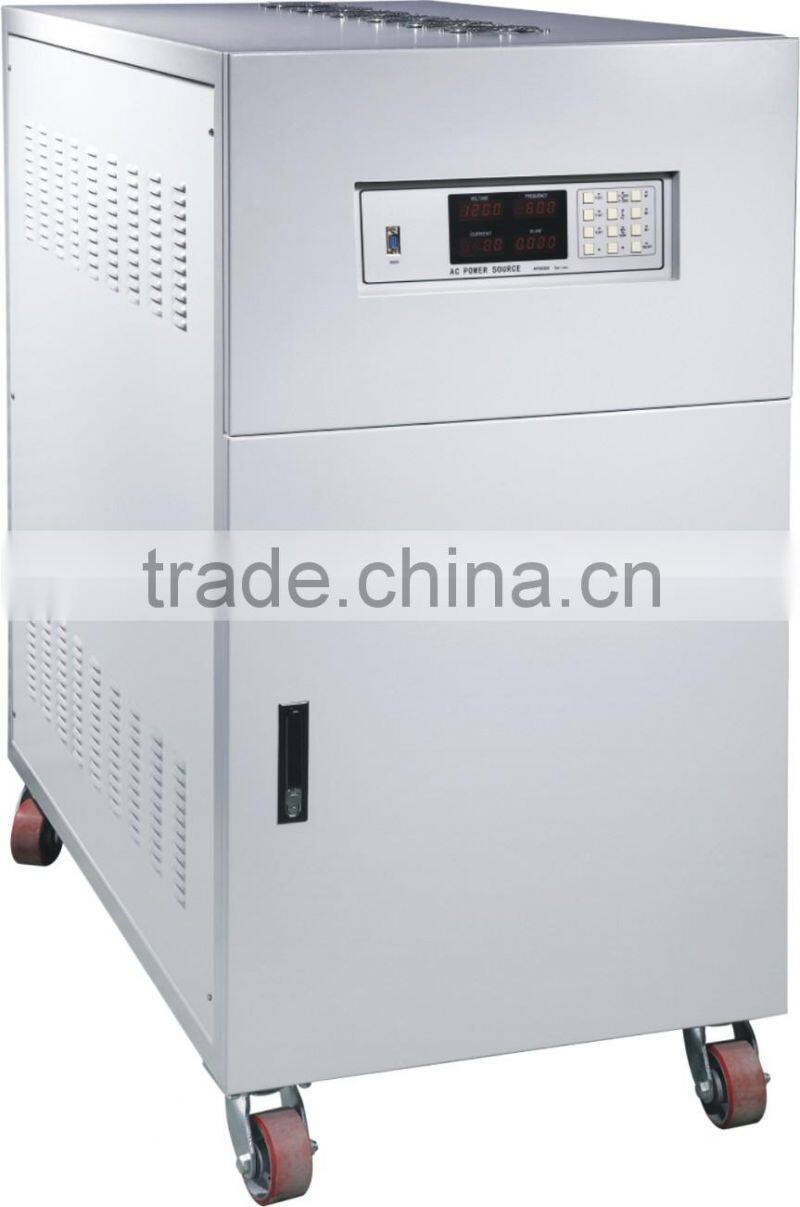

Products pictures

Variable frequency power supply 20KVariable frequency power supply 20K







Company Information

Variable frequency power supply 20K



ShenZhen FeiXiangDa Electrical Co.,Ltd specialized in manufacturing and selling various power supply products including precise and energy-efficient voltage stabilizer, transformer, voltage regulator, variable frequency power, DC power and UPS power supply etc…



 Our company is integrated with R&D, design, manufacturing, marketing, and service, and was introduced by ISO9001 quality standard and 3C certifying for multi-products, we are supplying reliable, energy-efficient products and guarantee to different scopes covering OEM factory, minerals, telecommunications , finance, government, energy, traffic, medical, military, education etc.



Our company is based on honesty, loyalty and credibility, we always offer overall solution with professional technique, precise equipments and perfect service.





Certifications



  Variable frequency power supply 20K



Our partner



We service most domestic and oversea  famous customers of transformer and receive high reputation for many years.Our products widely used in the follow machines and service our customers:



Variable frequency power supply 20K
