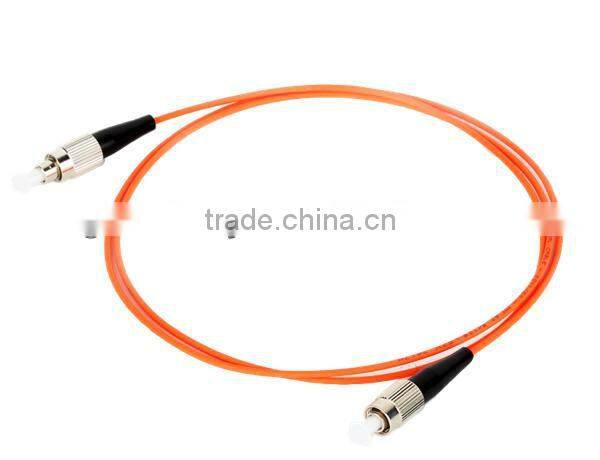

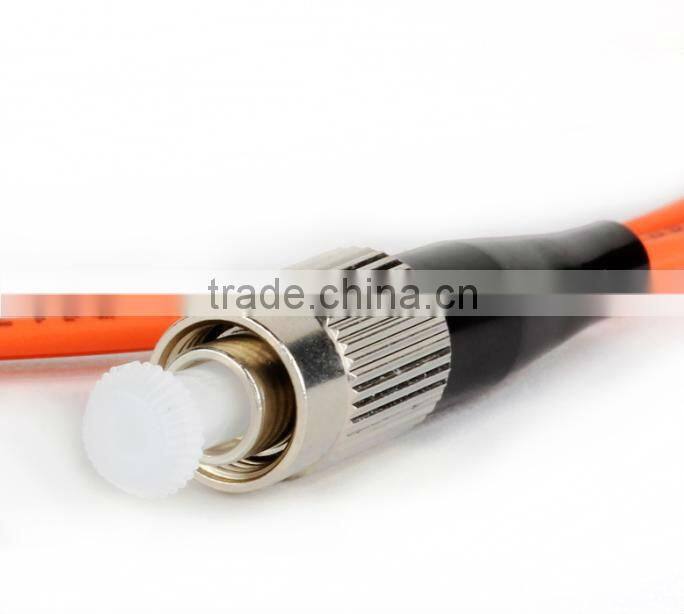

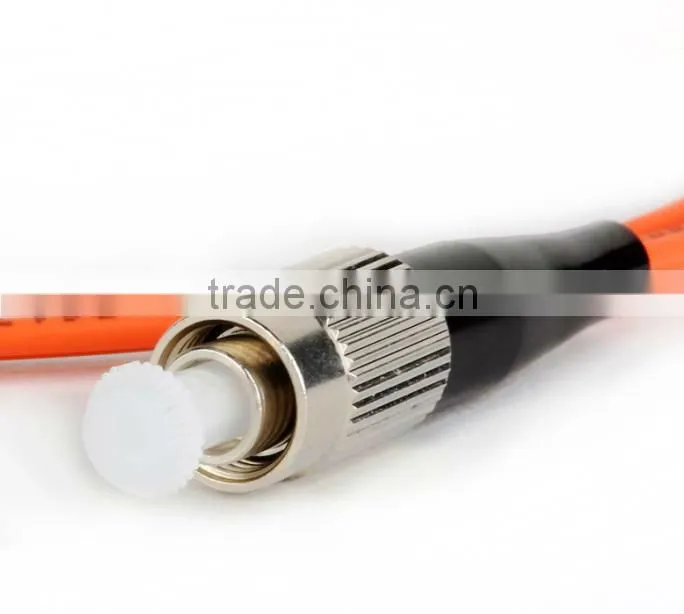

Grandway Fiber Patch Cord
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
F2H, F2H
Model Number:
ITU-T G.657A & 652D
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Grandway Fiber Optical Patch CordNegotiableMOQ: 10 Pieces -
Grandway Sc/apc Patch CordNegotiableMOQ: 10 Pieces
-
SC/UPC-SC/UPC Single Mode 2mm Loose Tube Fiber Optic Patch CordNegotiableMOQ: 10 Pieces
-
8 Cores MPO Patch CordNegotiableMOQ: 10 Pieces
-
FC/UPC Single Mode Fiber Optic PatchcordUS$ 1 - 99MOQ: 1 Piece
Place of Origin
China
Brand Name
F2H, F2H
Model Number
ITU-T G.657A & 652D
Specifications
Optical Patch cord, Fiber Patch cord1. ITU-T G.657A & 652D
2. armoured or normal
3. FTTH,FTTD, FTTB
General Description:
F2H SuperLinkTM is our new patchcord and pigtail designed for the need of next general FTTH and FTTD. F2H SuperLink include three seires: F2H SuperLinkTM2H SuperLinkTMH SuperLinkTM?bsp;
Features:
Small diameter, stainless steel to pretect the fiber, easy to bend
Excellent mechanical properties to avoid any damage caused by rodent animals.
Optical performance and Macrobending loss performance fully compliant to ITU-T G.657 Class A single mode fiber
F2H SuperLinkTM is our new patchcord and pigtail designed for the need of next general FTTH and FTTD. F2H SuperLink include three seires: F2H SuperLinkTM2H SuperLinkTMH SuperLinkTM?bsp;
Features:
Small diameter, stainless steel to pretect the fiber, easy to bend
Excellent mechanical properties to avoid any damage caused by rodent animals.
Optical performance and Macrobending loss performance fully compliant to ITU-T G.657 Class A single mode fiber
Widely used in the FTTH: horizontal & vertical, high density installation.
Specifications:
Item |
PC |
UPC |
APC |
Material |
ceramic |
||
Insert Loss(dB) |
<0.2 |
<0.2 |
<0.2 |
Return Loss(dB) |
>=45 |
>=50 |
>=60 |
Fiber type |
G.657 A/ customised |
||
Repeatability(500times)(dB) |
0.2 |
||
Working temperature |
-20 to +80°C |
||
Storage temperature |
-20 to +80°C |
||
Working humidity |
<90% RH |
||
Ordering Information:
F2H-SuperLink-1 2 3 4 5 6 7
1. Type: etallic armoured soft in-door patchcord series; metal super-soft patchcord series; pigtail series
2.Type of the jacket: P-PVC ; L-LSZH;C-Customized
3.Color of the Jacket: B-black; Y-Yellow; W-white; C-Customized
4. Outer diameter: 1-Φ0.9mm, Φ2.0mm, Φ3.0mm, Φ0.9mm
5. Length: H1-0.5m, 1-1.0m,3-3.0m,5-5.0m,D5-10m, C-Customized
6. Connector:F-F, S-S,L-L,F-S.F-L(*F=FC,S=SC,L=LC, others are available)
7. Interface: P-PC, U-UPC, A-APC
