Specifications
RV-7100 car reverse parking system7inch LCD monitor with touch button
Back camera 120 field view with night vision,
20M AV

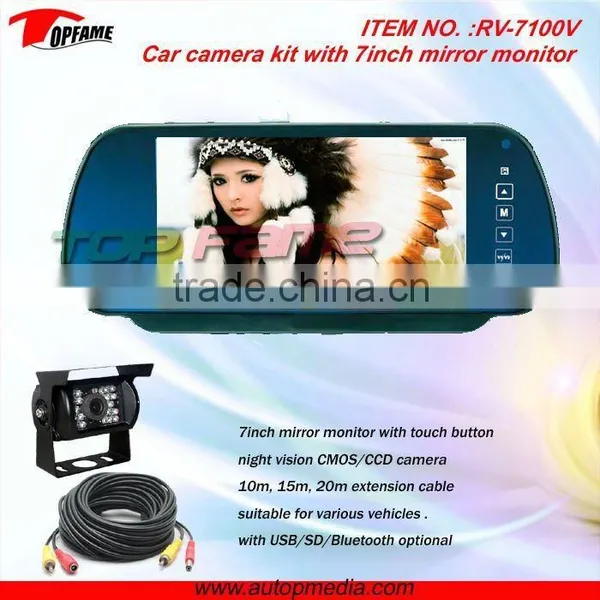

RV-7100V car reverse parking system
7inch rearview monitor with touch button, clip on original sunvisor
Screen: (16:9/(4:3)
Resolution degree:480(W)xRGBx234(H)
PAL/NTSC compatible
Dual video input(V1/V2)
Can be connected with camera for safer parking
Rearview image auto display
Full function remote control
Power supply : DC12V
Operating temperature:-10oC~60oC
Camera
Image Sensors: 1/4" OV7950 /1/3"OV7949/1030
TV System:PAL / NTSC
waterproof rate:Ip67
Effective Pixels:628x582 pixels / 656×492 pixels
Resolution:420TV lines
Minimum Illumination:1.0Lux / F1.2
Pin Lens:f=3.6mm / F = 2.0
Lens Angle:120°
Vertical Sync. Frequency:50Hz / 60Hz
Video Output:1.0vp-p, 75Ohm
Power Supply:DC12V
Current Consumption:≤200mA
Electronic Shutter:1/60 ~ 1/10,000 Seconds
Gamma Consumption:0.45
S/N Ratio:Better than 48Db
Scanning System:2:1Interlace
Operating Temperature:-20°C~70°C ,RH95% MAX
Storage Temperature:-40°C~85°C ,RH95% MAX
Package included:
- 7" LCD mirror monitor x 1
- Remote controller x 1
- Color bus camera x 1
- 20m connection cable x 1
