Specifications

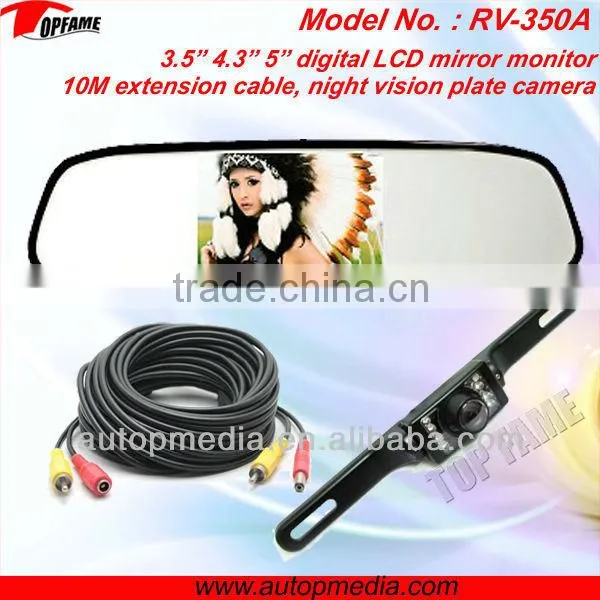

RV-350A 3.5 inch car rear mirror with camera120 field view camera with drill
RV-350A auto back up system with good quality&attractive price
Rear view monitor
RV-350A 3.5inch mirror monitor
Voltage: 9 to 15V DC (OR 24V)
1 Video input, (2video optional)
Video frequency: NTSC/PAL
Auto switch
Screen size: 3.5-inch digital LCD
Resolution: 320 x 240
Working temperature: -20 to +70 degrees C
Display size: 29 x 7.5 x 2cm
Back up camera
Image Sensors: Sharp CCD, OV7950 /OV7949
TV System:PAL / NTSC
waterproof rate:Ip67
Effective Pixels:628x582 pixels / 656×492 pixels
Resolution:420TV lines
Minimum Illumination:1.0Lux / F1.2
Pin Lens:f=2.4mm / F = 2.0
Lens Angle:120°
Vertical Sync. Frequency:60Hz
Video Output:1.0vp-p, 75Ohm
Power Supply:DC12V
Current Consumption:≤120mA
Electronic Shutter:1/60 ~ 1/10,000 Seconds
Gamma Consumption:0.45
S/N Ratio:Better than 48Db
Scanning System:2:1Interlace
Operating Temperature:-20°C~70°C ,RH95% MAX
Storage Temperature:-40°C~85°C ,RH95% MAX
Package Included:
3.5inch digital LCD monitor x 1
Color CMOS/CCD camera x 1
8M/15M/20M video cable x 1
