Specifications

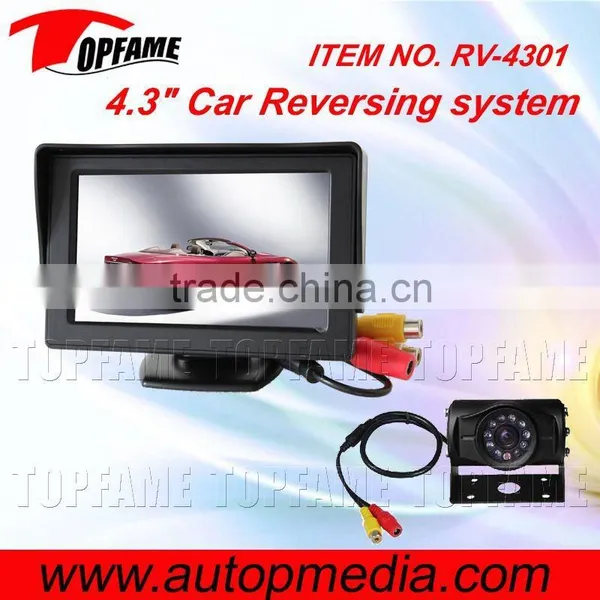

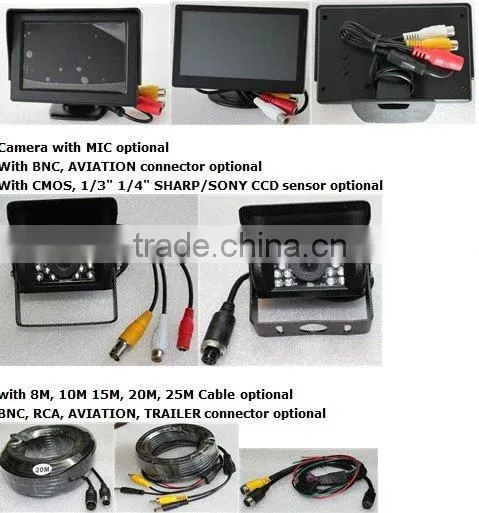

RV-4301 Car back up system4.3 inch digital rearview monitor
120 field view heavy duty camera
Car back up system with good quality&attractive price
Rear view monitor
4.3inch digital LCD monitor
Resolution: 640(h) x RGB x 480(v)
Visible Area : 96 x 54mm
TV system: PAL/NTSC auto-switch
Power:DC 12V± 10% 1-3W
Auto save power function
Brightness and contrast adjust button
Ratio: 16:9
Video input: VI/V2 (V2 auto reverse)
Operation Temp.: -5°C- +50°C
Storage Temp.:-20°C - +60°C
Color: black
Display: black screen when no signal input
Dimension(L)*(H)*(D): 120*76*16MM
Net weight: 130g
Back up camera
Image Sensors: 1/4" OV7950 /1/3"OV7949 TV System:PAL / NTSC
waterproof rate:Ip67
Effective Pixels:628x582 pixels / 656×492 pixels
Resolution:420TV lines
Minimum Illumination:1.0Lux / F1.2
Pin Lens:f=3.6mm / F = 2.0
Lens Angle:120°
Vertical Sync. Frequency:50Hz / 60Hz
Video Output:1.0vp-p, 75Ohm
Power Supply:DC12V
Current Consumption:≤200mA
Electronic Shutter:1/60 ~ 1/10,000 Seconds
Gamma Consumption:0.45
S/N Ratio:Better than 48Db
Scanning System:2:1Interlace
Operating Temperature:-20°C~70°C ,RH95% MAX
Storage Temperature:-40°C~85°C ,RH95% MAX
Package Included:
4.3inch digital LCD monitor with sun visor x 1
Color CMOS camera x 1
6M video cable x 1
