Specifications
RV-7046 car rear view system* 7" TFT LCD monitor
* Back up CCD cameras
DV 12V,11V-32V optional
CE RoHS certificate

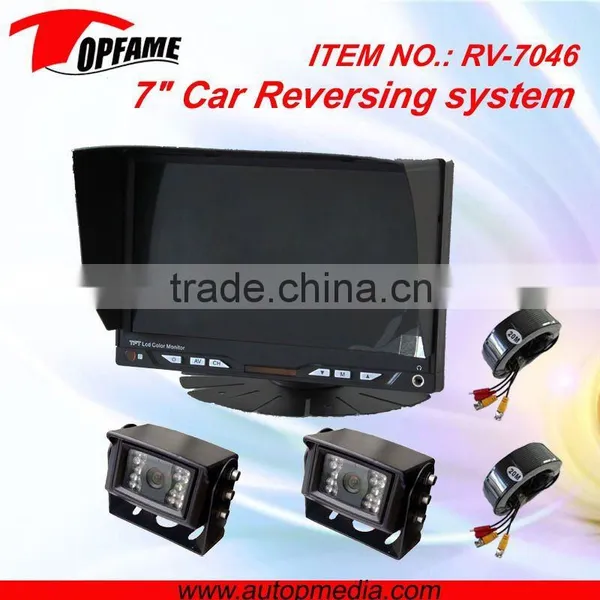

TOPFAME RV-7046 7 inches quad car rear view camera kit system with button monitor for buses/vans/trucks, etc.
Monitor Spec:
7" TFT-LCD MONITOR
Ratio: 16:9 /4:3
Pixel: 480*234
System: PAL/NTSC auto switch
Video input: 2 way
Audio input: 1 way optional
Backup: V2 auto reverse
View angle: U/D/L/R
Adjustable image brightness/color/contrast
built-in speaker optional
With remote control and OSD menu
Power supply: DC11-32V
Current: 0.7A
Luminance: 300-400/m2
Operating temp.:-10°C ~ 60°C
Device size:171*125*19mm(W/H/D)
weight: 550g
2 set Back up camera:
Image Sensors: 1/4" /1/3" SHARP, SONY CCD
TV System:PAL / NTSC
waterproof rate:Ip67
Effective Pixels:628x582 pixels / 656×492 pixels
Resolution:420TV lines
Minimum Illumination:1.0Lux / F1.2
Pin Lens:f=3.6mm / F = 2.0
Lens Angle:120°
Vertical Sync. Frequency:50Hz / 60Hz
Video Output:1.0vp-p, 75Ohm
Power Supply:DC12V
Current Consumption: ≤ 200mA
Electronic Shutter:1/60 ~ 1/10,000 Seconds
Gamma Consumption:0.45
S/N Ratio:Better than 48Db
Scanning System:2:1Interlace
Operating Temperature:-20°C~70°C ,RH95% MAX
Storage Temperature:-40°C~85°C ,RH95% MAX
Package included:
7inch TFT LCD monitor x 1
Metal Bracket x 1
Sunshade x 1
Remote control x 1
1/4" Color Sharp CCD camera x 2
20m connection cable x 2
