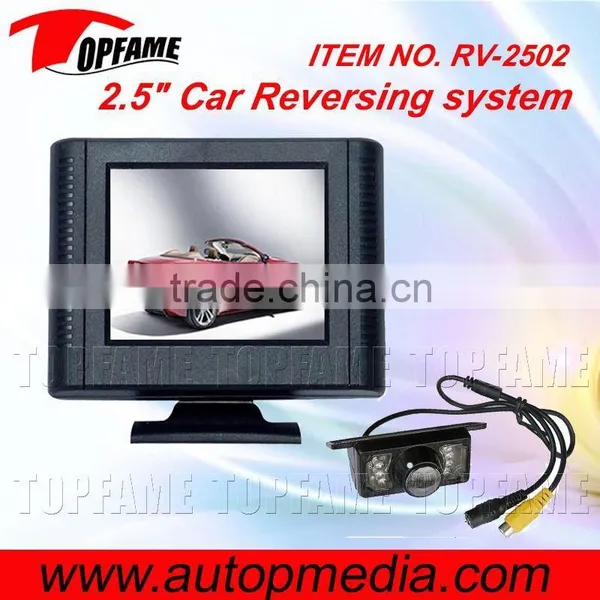

Help CenterRV-2502 Car Rear View System With 2.5" Digital LCD Monitor&night Vision Camera
Related Products
-
TOPFAME RV-3512 3.5" Digital LCD Monitor Backup Car Camera System With Night Vision CameraUS$ 1 - 55MOQ: 10 Sets -
RV-3511 3.5 Inch Digital Screen Car Backup Camera System With Sharp Color Back up CameraNegotiableMOQ: 50 Sets
-
RV-3508 3.5" Car Backup Camera System With 3.5" Digital LCD Monitor&night Vision CameraNegotiableMOQ: 100 Sets
-
RV-3507 3.5inch Color Backup Camera System With 3.5" Digital LCD Monitor&night Vision CameraNegotiableMOQ: 10 Sets
-
RV-3506 3.5inch Car Backup Camera System With 3.5" Digital LCD Monitor&night Vision CameraNegotiableMOQ: 50 Sets
Specifications
RV2502 Car rear view system2.5 inch rearview monitor
120 field view color camera, 12 LED
2.5inch Car rear view system
Rear view Monitor
2.5-inch digital LCD show rear view image by camera
It can connect with VCD and DVD signal
Specification:
Voltage: 9 to 15V DC (OR 24V)
Input: CVBS(IVP-P)
TV System: NTSC/PAL Auto switch
Power consumption: 1W
Screen size: 2.5-inch digital LCD
Resolution: 640 x 240
Working temperature: -20 to +70 degrees C
Dimension:70mm*80mm*24mm
Back up Camera
Image Sensors: 1/4", 1/3" OV7950, OV7949, 1030
TV System:NTSC/PAL
waterproof rate:Ip67
Effective Pixels:656×492 pixels
Resolution:420TV lines
Minimum Illumination:1.0Lux / F1.2
Pin Lens:f=1.8mm / F = 2.0
Lens Angle:120°/170°
Vertical Sync. Frequency:60Hz
Video Output:1.0vp-p, 75Ohm
Power Supply:DC12V
Current Consumption:≤120mA
Electronic Shutter:1/60 ~ 1/10,000 Seconds
Gamma Consumption:0.45
S/N Ratio:Better than 48Db
Scanning System:2:1Interlace
Operating Temperature:-20°C~70°C ,RH95% MAX
Storage Temperature:-40°C~85°C ,RH95% MAX
Package Included:
2.5inch digital LCD monitor x 1
Color CMOS camera x 1
6M video cable x 1
