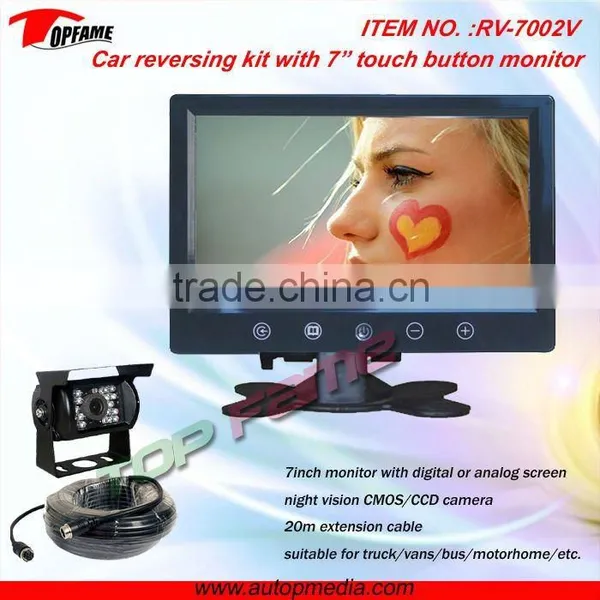

RV-7002V car camera reversing system with touch button monitor for heavy duty vechicles
- 1000 Set / Sets per Month
- EXW FOB SZ/HK
- Credit Card
You May Like
-
RV-4000H With 4" digital LCD monitor Heavy duty Car Reversing Aid System
-
RV-2502 Car rear view system with 2.5" digital LCD monitor&night vision camera
-
TOPFAME RV-3512 3.5" digital LCD monitor backup car camera system with night vision camera
-
RV-3511 3.5 inch digital screen Car backup camera system with sharp color back up camera
-
RV-3508 3.5" car Backup camera system with 3.5" digital LCD monitor&night vision camera
-
RV-3507 3.5inch Color Backup camera system with 3.5" digital LCD monitor&night vision camera
Product Details
| Type | Other, Car heavy duty back view system | Voltage | Other, DC 11-32V | |
| Power | less than 6W | Car Make | universal | |
| Place of Origin | Guangdong, China | Brand Name | OEM welcome | |
| Model Number | RV-7002V |
Product Description
Specifications
RV-7002V Car rear vision camera system with touch button7" touch button LCD monitor
Back up CMOS cameras
RV-7002V Car Rear Vision camera System for vans/buses/trucks/etc.
Monitor Spec:
7" DIGITAL-LCD MONITOR WITH TOUCH BUTTON
Ratio: 16:9 /4:3
Pixel: 800x 480 / 480x234
System: PAL/NTSC auto switch
Video input: 2 way
Audio input: 1 way optional
Backup: V2 auto reverse
View angle: U/D/L/R
Adjustable image brightness/color/contrast
With remote control and OSD menu
Power supply: DC11-32V
Current: 0.7A
Luminance: 300-400/m2
Operating temp.:-10°C ~ 60°C
Device size:171*125*19mm(W/H/D)
weight: 550g
Back up camera:
Image Sensors: 1/4" /1/3" CMOS/ CCD
TV System:PAL / NTSC
waterproof rate:Ip67
Effective Pixels:628x582 pixels / 656×492 pixels
Resolution:420TV lines
Minimum Illumination:1.0Lux / F1.2
Pin Lens:f=3.6mm / F = 2.0
Lens Angle:120°
Vertical Sync. Frequency:50Hz / 60Hz
Video Output:1.0vp-p, 75Ohm
Power Supply:DC11-32V
Current Consumption:≤200mA
Electronic Shutter:1/60 ~ 1/10,000 Seconds
Gamma Consumption:0.45
S/N Ratio:Better than 48Db
Scanning System:2:1Interlace
Operating Temperature:-20°C~70°C ,RH95% MAX
Storage Temperature:-40°C~85°C ,RH95% MAX
Package included:
7inch DIGITAL LCD monitor x 1
Remote control x 1
Stand bracket x 1
1/4" Sharp CCD bus camera x 1
0.8M aviation connection cable x 1
20m waterproof aviation connection cable x 1
