Led Outdoor Advertising Board Video Screen

Name: Led Outdoor Advertising Board Video Screen
Brand: Charming
SKU: 104069697
Availability: InStock

Negotiable MOQ: 4 sets (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Charming

Model Number:

COL.PB.010.5007

Guangzhou Charming Lighting Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou Or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Charming

Model Number COL.PB.010.5007

Usage Outdoor

Tube Chip Color Full Color

Display Function Video

Pixels Other, 10

Screen Dimension 960*960mm

Type Number	COL.PB.010.5007	COL.PB.016.5002	COL.PB.020.5001	COL.PB.025.5000
Pixel Pitch(mm)	10	16	20	25

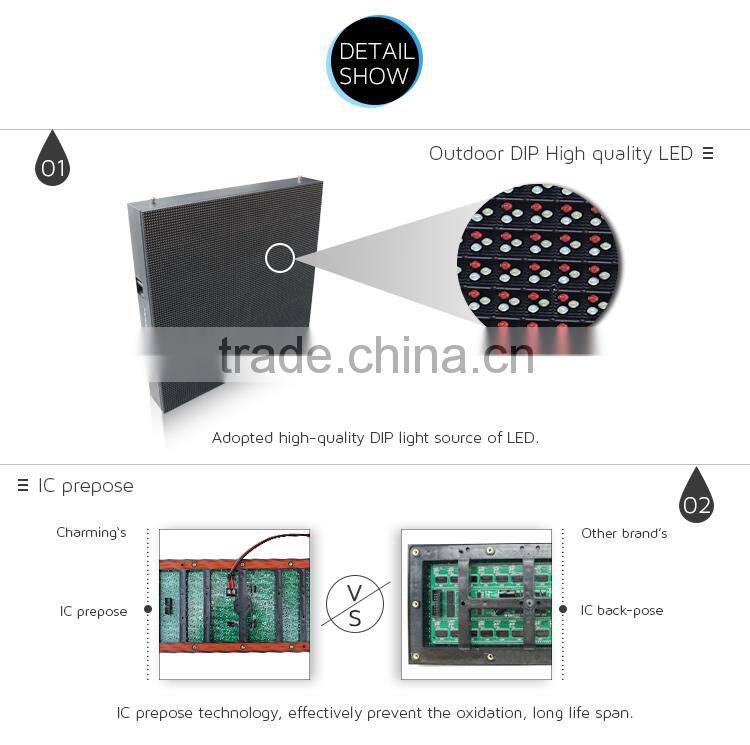

LED standard	DIP346	DIP346	DIP546	DIP546
Pixel Composition	1R1G1B	1R1G1B	2R1G1B	2R1G1B
Pixel density(dot/m²)	10000	3906	2500	1600
Module Dimensions(mm)	320*160	256*256	320*160	200*200
Module resolution (L*W)	32*16	16*16	16*8	8*8
Scan mode	1/4	Static	Static	Static
Brightness	6500	2200	5500	4500
Min.viewing distance (m)	10	16	20	25

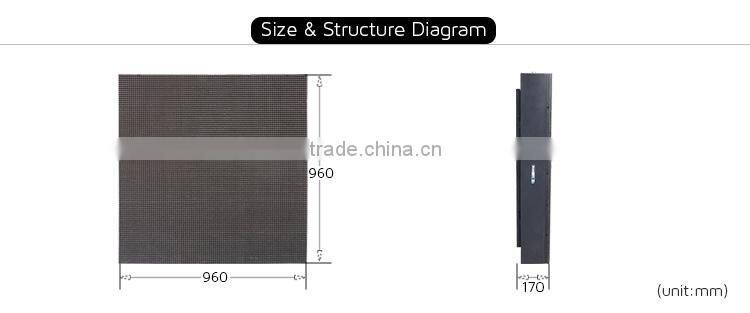

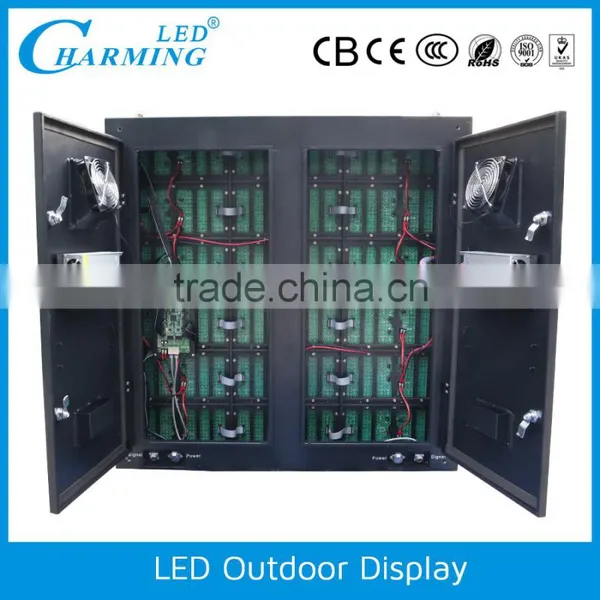

Cabinet size(LWH)(mm)	960960170	10241024170	960960170	10001000170

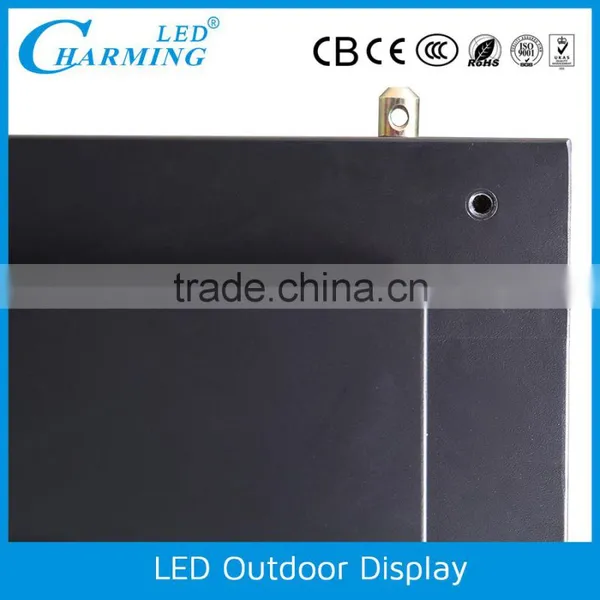

Cabinet material	Iron	Iron	Iron	Iron
Cabinet weight	45KG	35KG	40KG	45KG
Power consumption	Max.800 Average 400	Max.400 Average.200	Max.750 Average.400	Max.480 Average.250

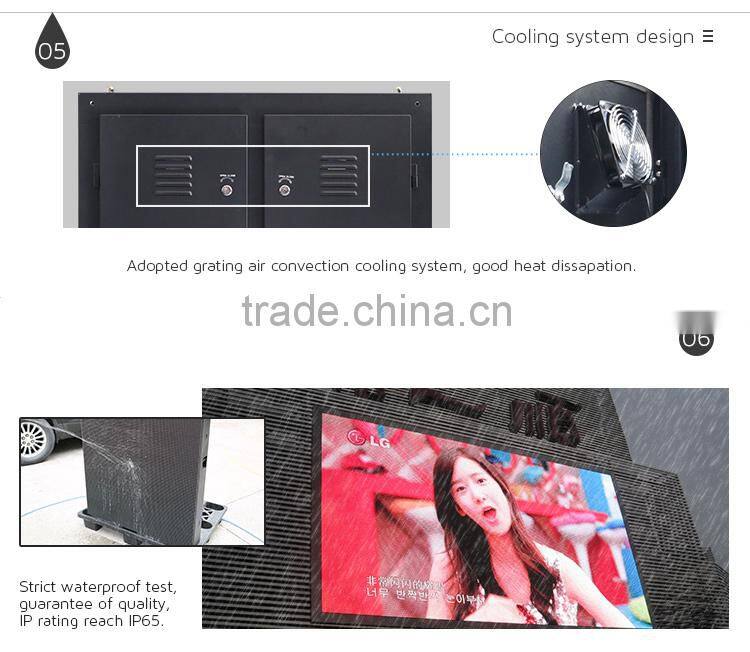

Protection level		IP 65

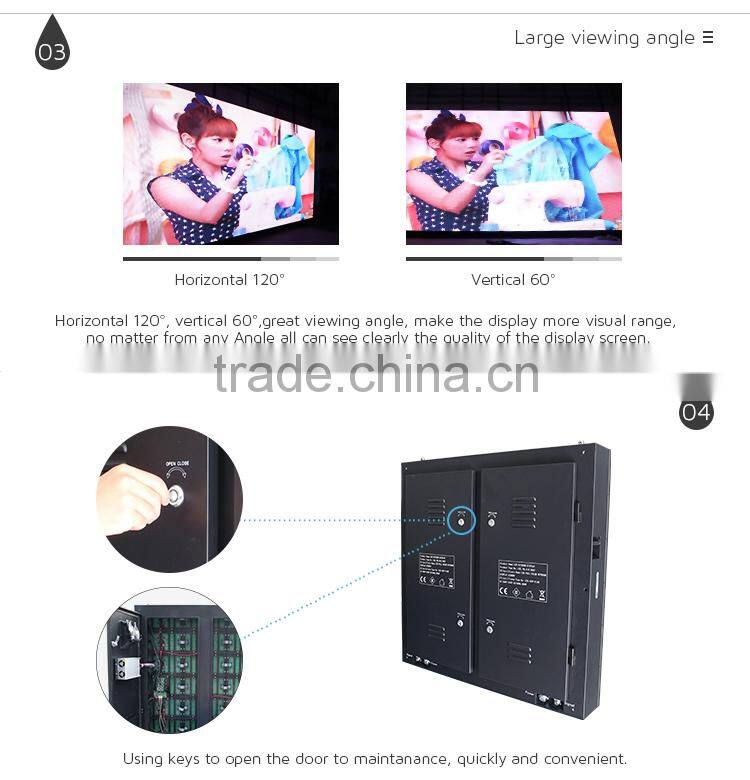

View angle	Horizontal 120 degree,Vertical 60 degree
Grey level	4096 level
Working temperature	-45~50°C
Life span	≥30,000 hours
Working voltage	AC220V/(110V)±15%,47~63HZ

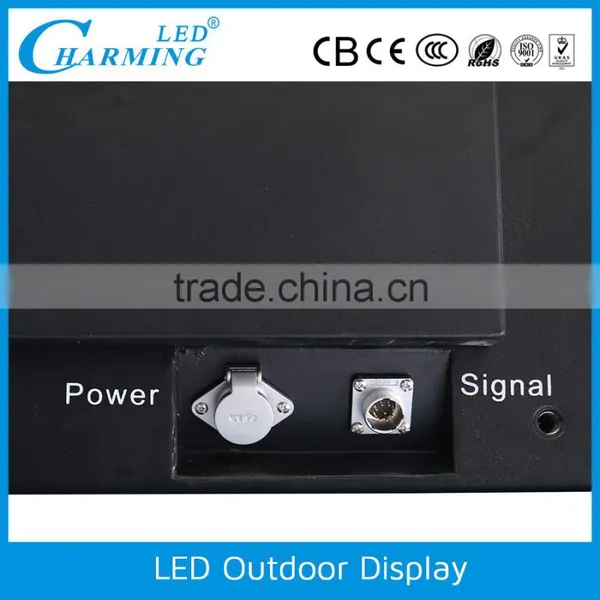

Signal transfer	LAN cable
Control system	LED FLASH Computer control system
