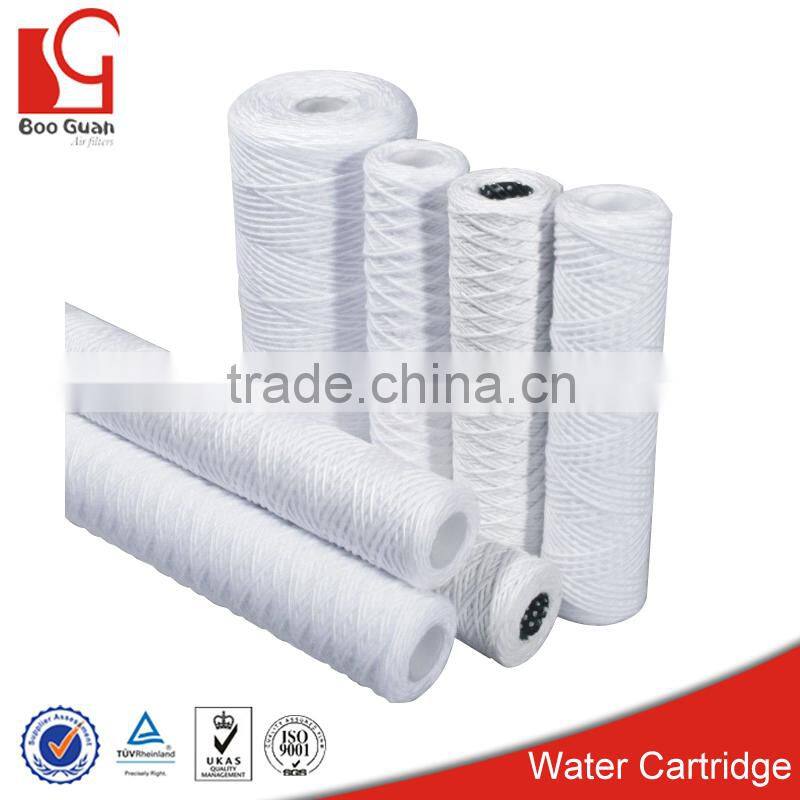

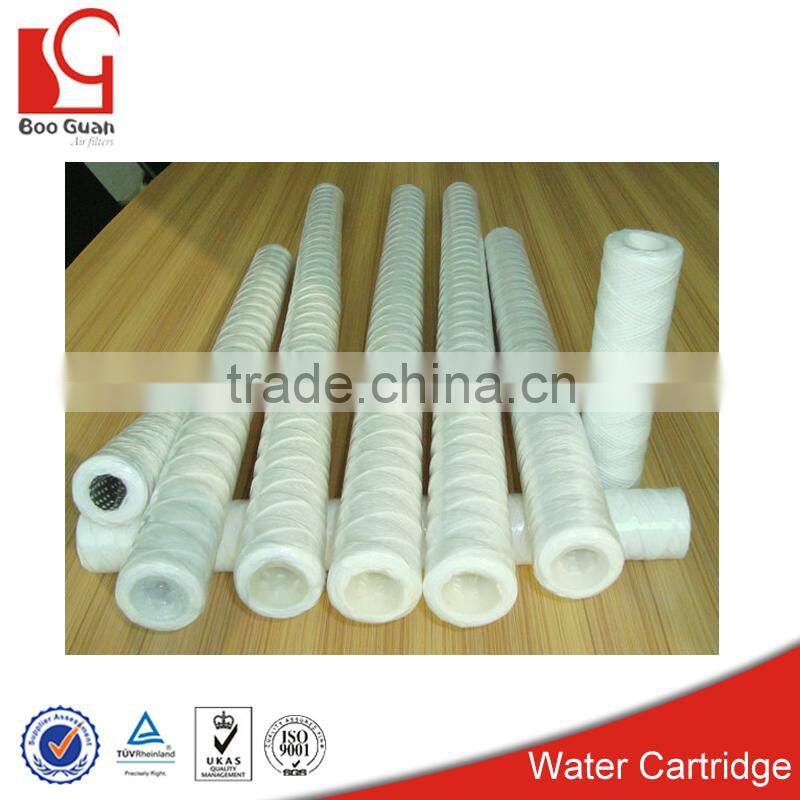

pp String Wound Filter Cartridge for Water, Food and Beverage Quality Choice

US$ 0.3 - 3 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

Model Number:

BG-005

Shanghai Booguan Technology Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name BG

Model Number BG-005

Specifications

Yarn string wound filter cartridge polyester water filter media
1.High filtration accuracy
2.Long life
3.Small differential

Feature

Product Details	1.Style	tubular type
	2.Material	polyester fiber
	3.Feature	High quality,High efficiency
	4..Size	OEM ,Customizing is welcome
	5.Color	White
	6.Frame	Non
	7.Is used to	industry water filter
	8.Efficiency	99%

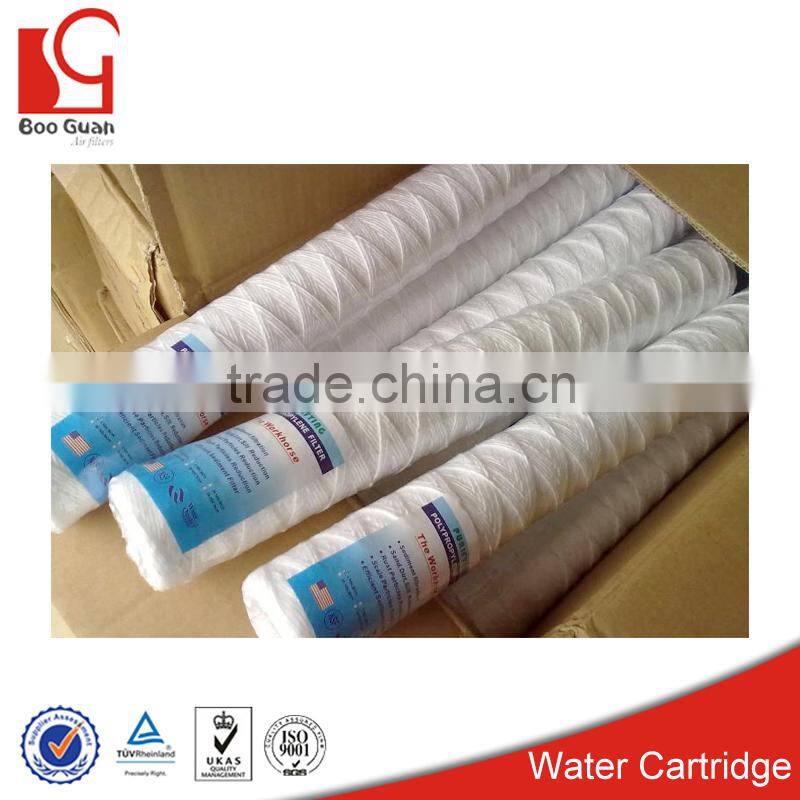

	9.Packing	Cartons
	10.Weight	Based on size&material,thickness
	11.Minimum order	100pcs
Purchase info	12.Sample time	2-3 working days.
	13.Lead time	15-25 days after confirmed the order,and based on the QTY
	14.Payment	General take T/T.other payments also can be discussed
	15.Unit Price	FOB Shanghai, (also can CIF Desitination)
	16.Brand	Booguan
	17.certification	ISO9001

Specification

Filter fineness	0.05μm,0.1μm,0.2μm,0.5μm,1μm,3μm,5μm,10μm,20μm,30μm,50μm
Filter length	5",10",20",30",40"
Filterdiameter	φ69mm
Filter material/10"length	0.6m2
maximum resistance temperature	80°C
maximum pressure	1.6MPa@25°C
Positive pressure differential	0.4MPa@25°C
negative pressure differential	0.3MPa@25°C
steam sterilizing	121°C ,30min per time
Connection Type	222insert,226snap-in ,Surface pressure
O type Seal material	fluoride rubbers ,silicone rubber
