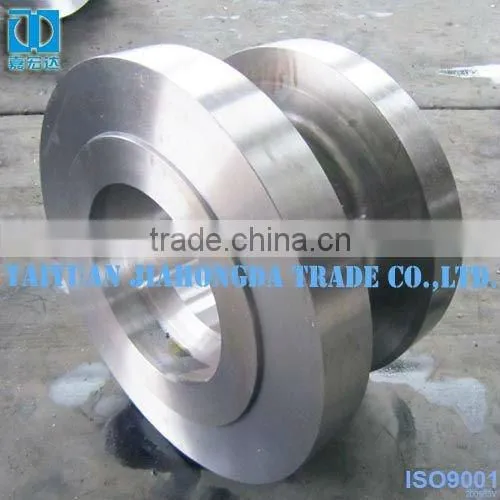

12x10" CLASS900 Body adapter Forging

Specifications

Focus on process quality & stage inspection.
Integral test bars are taken from forgings.
Widely used in petroleum industry etc



SERVICE

1.Best Quality

2.Professional Service

3.Full set quality control

4.Competitive Price



PRODUCT INFORMATION

CHEMICAL COMPOSITION

C%	Mn%	P%	S%	Si%
0.18	0.97	0.02	0.008	0.27
Cr%	Ni%	Mo%	Cu%	V%
0.02	0.01	0.01	0.01	0.01



MECHANICAL PROPERTIES

Material:ASTM A105 FORGED CARBON STEEL	Yield=367Mpa
UT as per ASME A355 & ASME B16.34	Tensile=554Mpa
Minimum reduction ratio of product is 4:1	Elongation=33.0Mpa
Heat-treatment:Q+T	Reduction=74.9Mpa



1. The visual & dimension & hardness on component are inspected & tested.
2. All procedures of production are recorded & traceability and offer the 3.1 certificate.
3. According to customer demand,we would carry out the intermational Third-Party Inspection(TPI) and offer EN10204 3.2 Certificate.
4. The integral test bars for mechanical property are taken from location of forings.
5. Hardness test as per ASTM A370,HARDNESS 158BHN.



About us

Focus on process quality & stage inspection.

We are professional manufacturer of forgings and have 10 year’s forgings export experience.

For the forging,the material of our capability include all kinds of steel(like CC/CS/Martensitic Steel/Duplex SS)

Our company is ISO9001:2008 Certified for the production & sevice of forging steel parts of valves & flanges and design.

All procedures of making included heat-treatment are completed in our own forged shop,heat-treatment shop and machining shop.

DRAWING












TYPING



 PACKING
