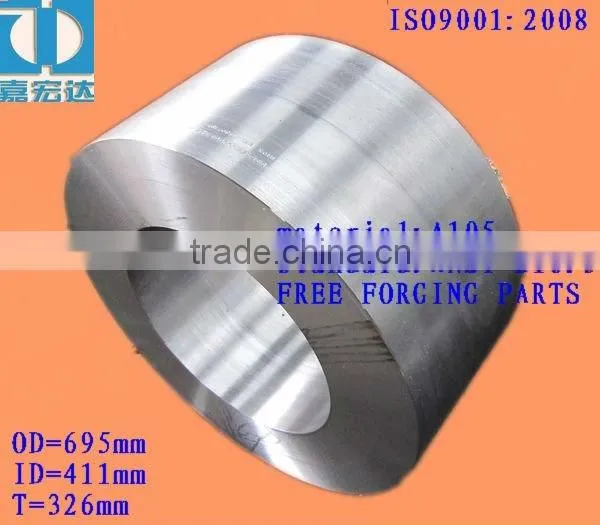

Help CenterRough Machining Spare Parts for Oil Production Flow Control
Related Products
-
CLASS900 Body Adapter ForgingUS$ 1,026 - 1,250MOQ: 5 Pieces -
HOT! 3.1 Certification of Oil Industrial With Rough Free ForgingUS$ 920 - 1,180MOQ: 5 Pieces
-
3.EN 10204.Type 3.1 Certification of Oil Industrial With Rough Free ForgingUS$ 480 - 540MOQ: 5 Pieces
-
2.EN 10204.Type 3.1 Certification of Oil Industrial With Rough Free ForgingUS$ 480 - 540MOQ: 5 Pieces
-
1.EN 10204.Type 3.1 Certification of Oil Industrial With Body Adapter Free ForgingUS$ 480 - 540MOQ: 5 Pieces
Specifications
Better choice,better quality!ISO9001:2008
fast delivery!
chemical composition
C% |
Mn% |
P% |
S% |
Si% |
Cr% |
Ni% |
Mo% |
Cu% |
V% |
CE |
0.18 |
0.97 |
0.02 |
0.008 |
0.27 |
0.02 |
0.01 |
0.01 |
0.01 |
0.01 |
0.35 |
mechanical properties
Y.S.(Mpa) |
T.S.(Mpa) |
E.% |
R.A.% |
HARDNESS(BHN) |
367 |
554 |
33.0 |
74.9 |
179 |
heat treatment
Heat Treatment Process | |||
Quenched |
Austenitized to 910°CX2.00HRS |
||
Liquid |
WATER |
||
Start Temp |
22°C |
End Temp |
40°C |
Tempered |
600°CX3.50HRS AIR COOLED |
||

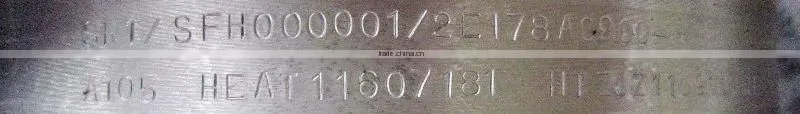

marking of forging
Now I’d like to introduce our products,relevant reports and certifications to you..And it is our sincere wish that we have the privilege of serving you soon.
Material |
Forged Carbon Steel, Stainless Steel , Duplex Stainless Steel , Low Alloy Steel (Like A105,LF2,LF6,F6a,F304,F316,F22,F51,F11,F317L,F60…) |
|
Main products |
forged flange |
slip-on flange,welding neck flange,socket welding flange,threaded flanged,lap joint flange,blind flange,ring joint flange,long welding neck flange |
free forgings |
body,body adapter,stem housing,trunning plate,seat ring,ring |
|
Forging style |
Closed die forging |
|
open die forging(free forging) | ||
Minimum Reduction Ratio |
4:1 |
|
Main market |
Africa, North America, South America, Southeast Asia, Mid East, Eastern Asia, Eastern Europe |
|
Reports |
Material test (as per EN10204 3.1)
|
1 Chemical composition (C,Mn,P,S,Si,Cu,Ni,Cr,Mo,V,CE) 2 Mechanical properties(yeild strength,tensile strength,elongation,reduction of area) 3 heat treatment(normalized,tempered,quenched,anneal) 4 Hardness(standard:NACE MR0175) 5 Impact test |
|
Material test (as per EN10204 3.2) |
Third Part Inspection is witnessed by BV. |
|
|
Ultrasonic Test (100% Area & ALL QUTY.) |
UT testing standard:ASTM A388 UT acceptance standard: ASME B16.34 APPENDIX IV |
|
MPT |
As per your requirements |
|
Dimension report (ALL QUANTITY) | ||
Shippment Marking |
Sr.No./Supplier Code/Item Code/Material Grade & Material Heat No.,Heat Treatment Lot No. |
|
As per your requirements | ||
Test block |
It is taken from the location of poduct for mechanical &chemical test. |
|
Packing |
IN PLYWOOD Suitable to sea shippment |
|
As per your requirements | ||
Our factory pay more closed attention to our products’ quality and stage inspection.Based on that, we have a great success in the past ten years.We have our own factory for twenty years.If you are interested in our products and wanna establish business ralations with us,we are pleased to quote you our best price as per your drawings you require.
Welcome to your enquiry!
packing:
